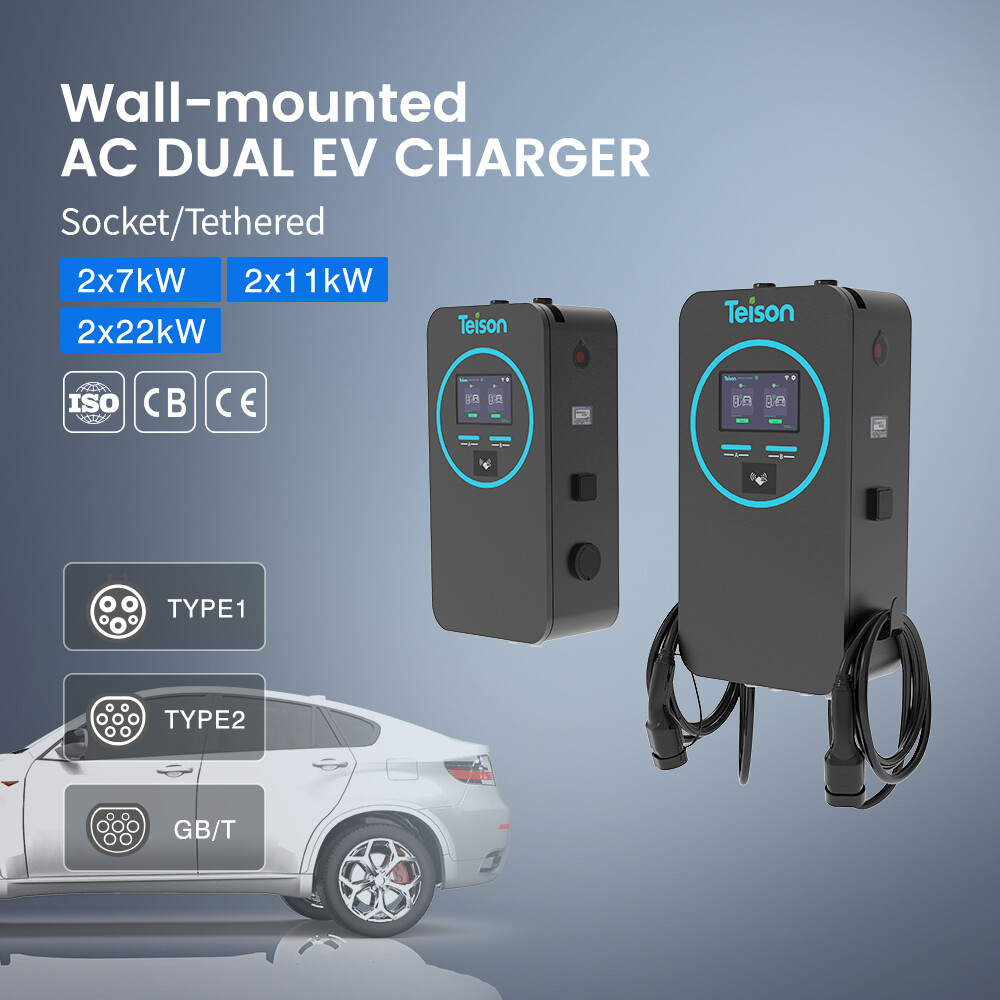

Dual EV Charger

Dual EV Charger is a three phase dual gun/Socket AC charging station, packed with features and ideal for domestic and commercial use.

  • 官网小banner.jpg
  • 1735363793067.jpg

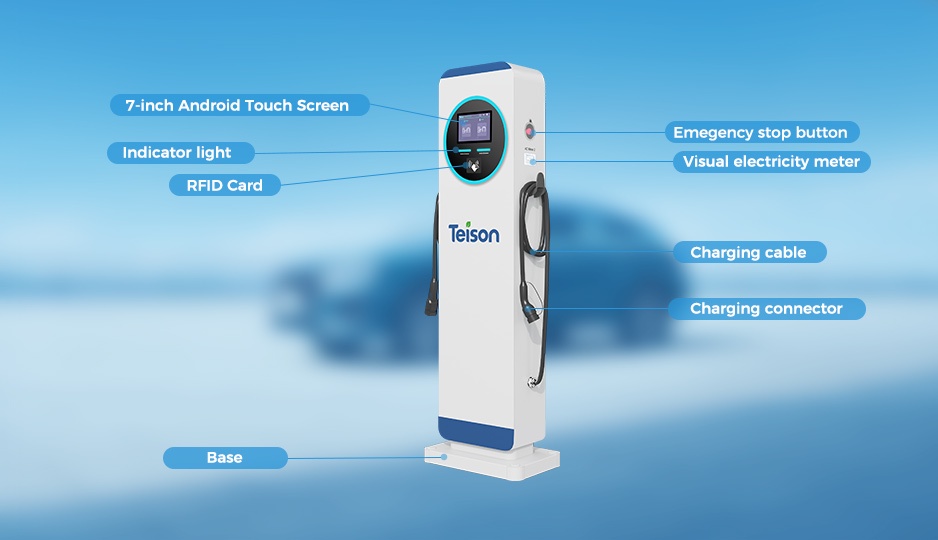

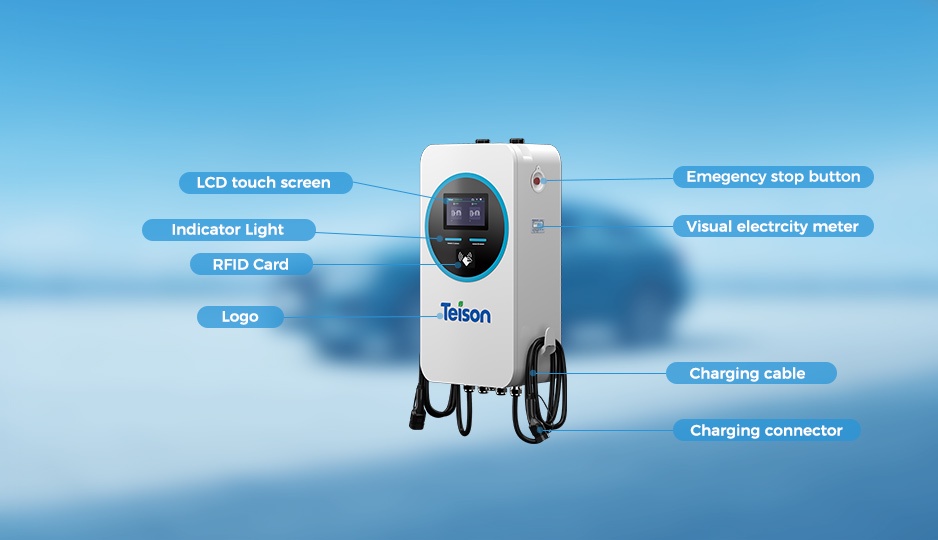

Product features

5 inch HD touch screen

Easiest user interaction and real-time status view

RFID Sensor

Identification & payment solution

Indicator light

Showing real time wallbox status

Emergency button

Press to cut off the power immediately

TPU cable

4meter cable with excellent durability and top cold resistance at-30°C

TUV approved connector

Completed shaped and easy hold; Silver plated terminals to minimize wear and tear on EV charging socket

Designed for future smart charging network

- Internet connection automatically setting with best logic to save 4G save cost;

- OCPP1.6 full function, supporting unified management through Teison OCPP Platform;

- Have a full logic written software to meet load balance of all type of applications for private and commercial;

- Remote charger conditions track and check platforms, can also remote update software or fix the faults occurred;

- Backend charger payment managing system available with fully settled functions and designs, RFID/credit card through Paypal or Stripe via APP "My Teison".

Highlights

- Power Capacity: 2*11KW/2*22KW

- 4.5M TPU Charging Cable(Customizable)

- 5" LCD Touch Screen

- Integrated with Ethernet/Wifi/RFID (4G as optional)

- With built-in MID Certificated Meter

- RCD AC30mA +DC6mA

- Protection Level: IP55

‹

›

‹

  • 壁挂双22主图20241227.jpg
  • 壁挂双22主图3-20241227.jpg
  • 双枪OCPP主图.jpg
  • 03双枪OCPP主图-20241015.jpg
  • 05双枪OCPP主图-20241015.jpg

›

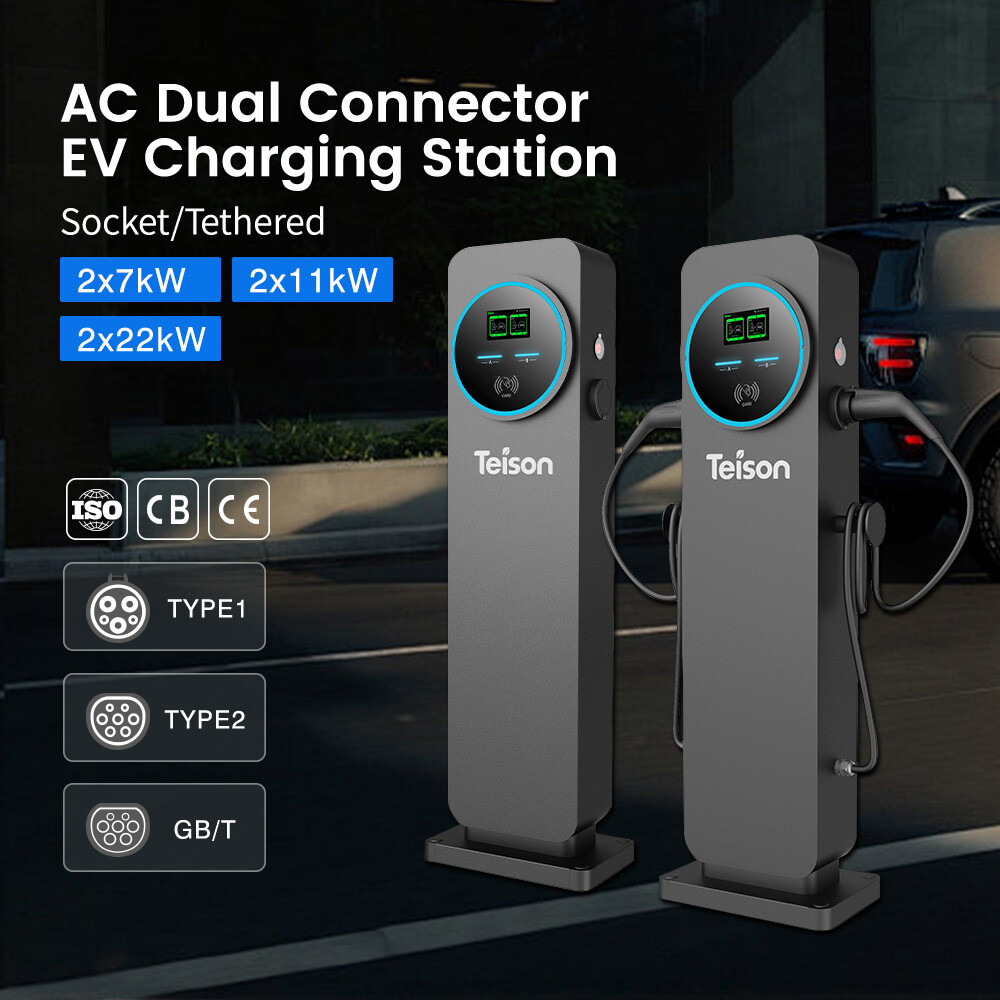

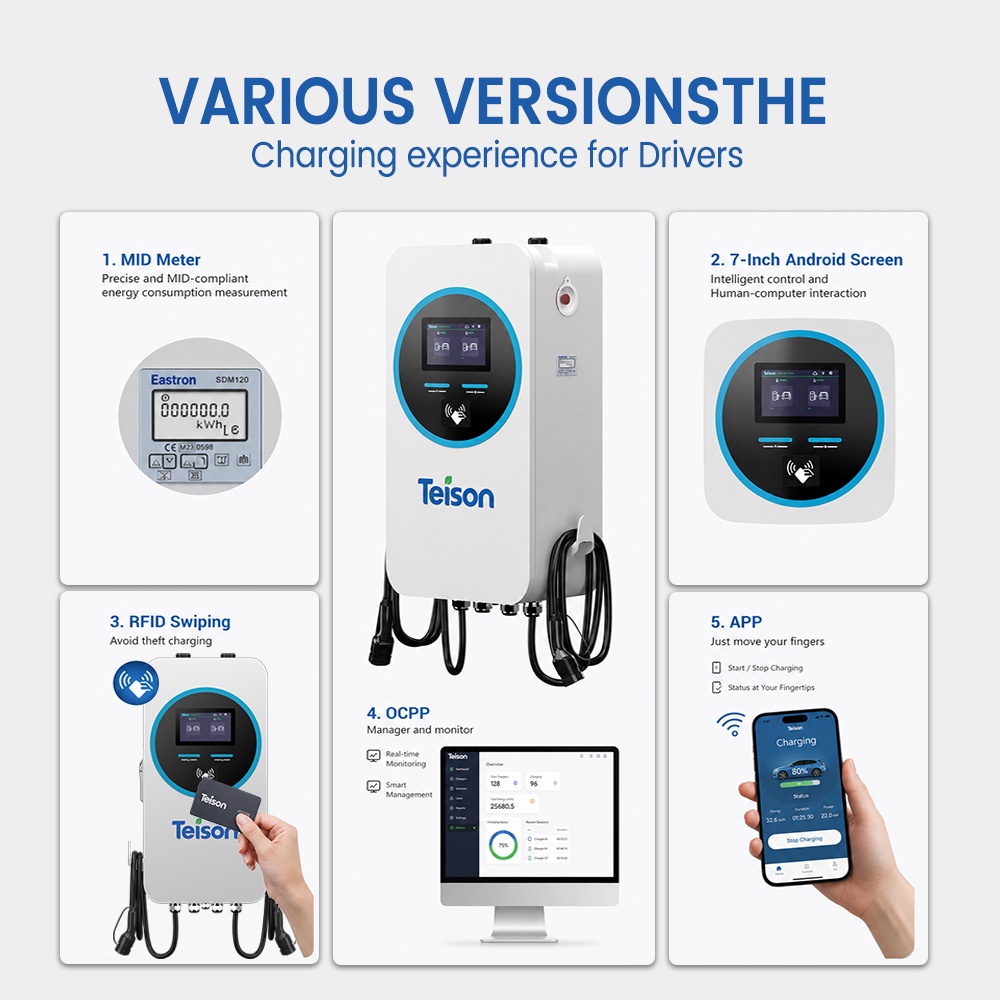

AC Smart OCPP Twins

3phase, 2*11KW/2*22KW

MyTeison  App Control (Wi-Fi, Ethernet, 4G)

RFID Card with Stored-Value Capability

OCPP1.6J

Local Whitelist (Offline RFID Card Swiping)

Support for Teison Platform Full Features

Dual Output

Request A Quote

Parameter

Specification
Model Teison Smart Twins
Electrical Properties
Rated Voltage 230V±10% AC 400V±10% AC
Max Output Current 2*32A 2*16A 2*32A
Frequency 50/60HZ
Max Output Power 2*7kW 2*11kW 2*22kW
Design
Emergency Stop Button YES
Display 7-inch Android Tounch Screen/5-inch LCD touch screen
Status Indication LED status indicator
RFID Function YES
Energy Meter On board power meter
RCD 30mA AC + DC 6mA
Housing Material SPCC Carbon steel
Front Panel SPCC

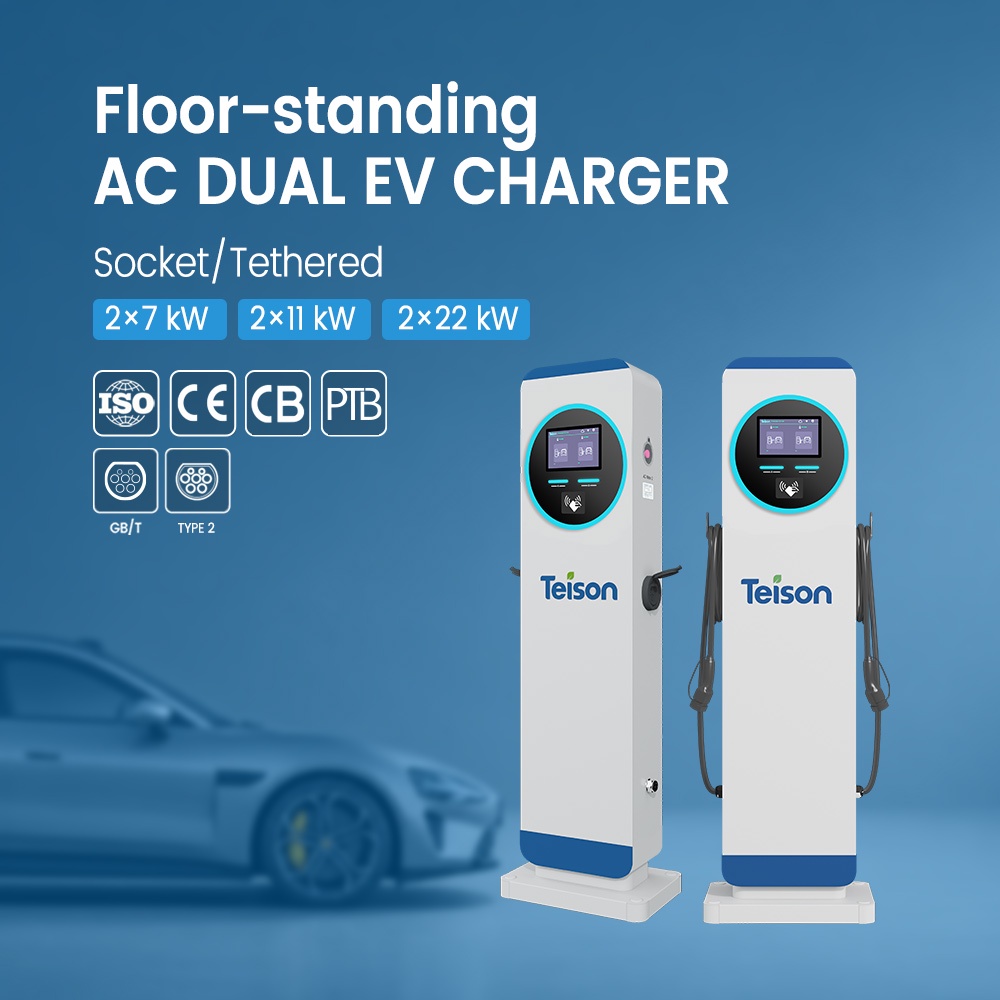

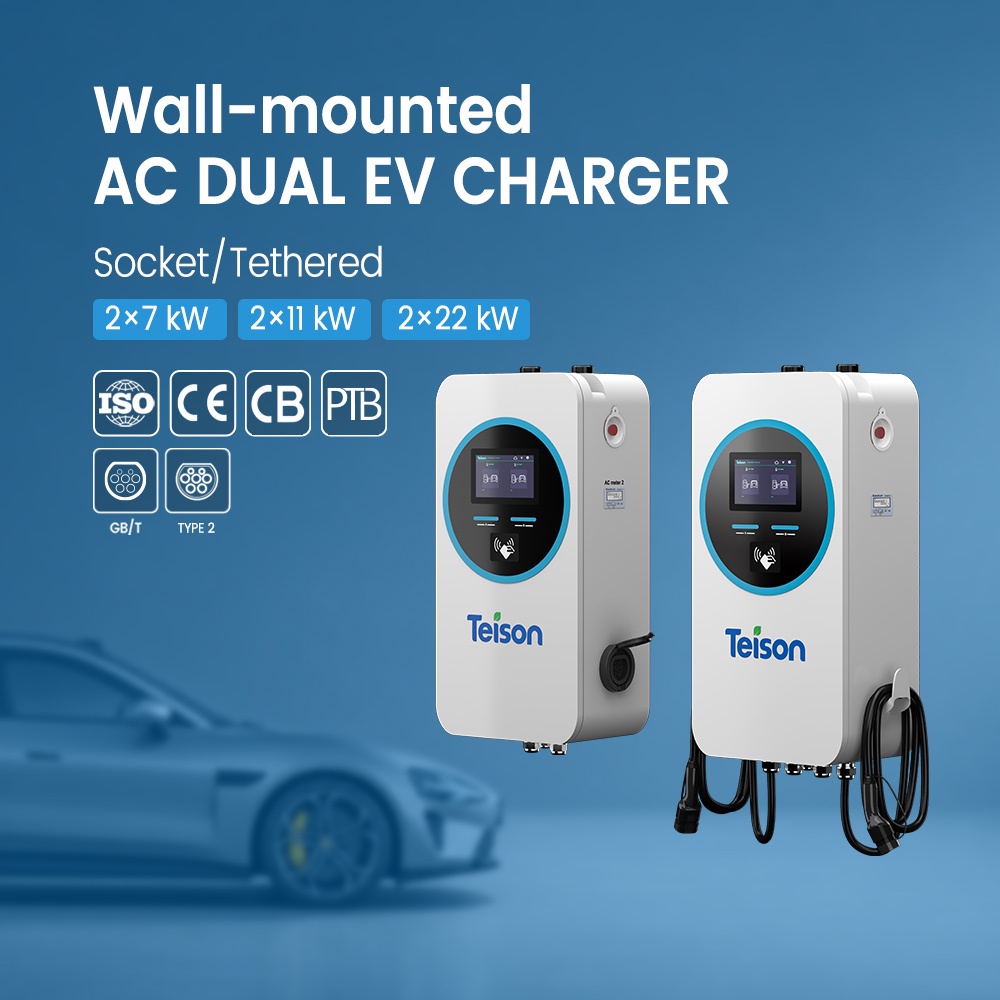

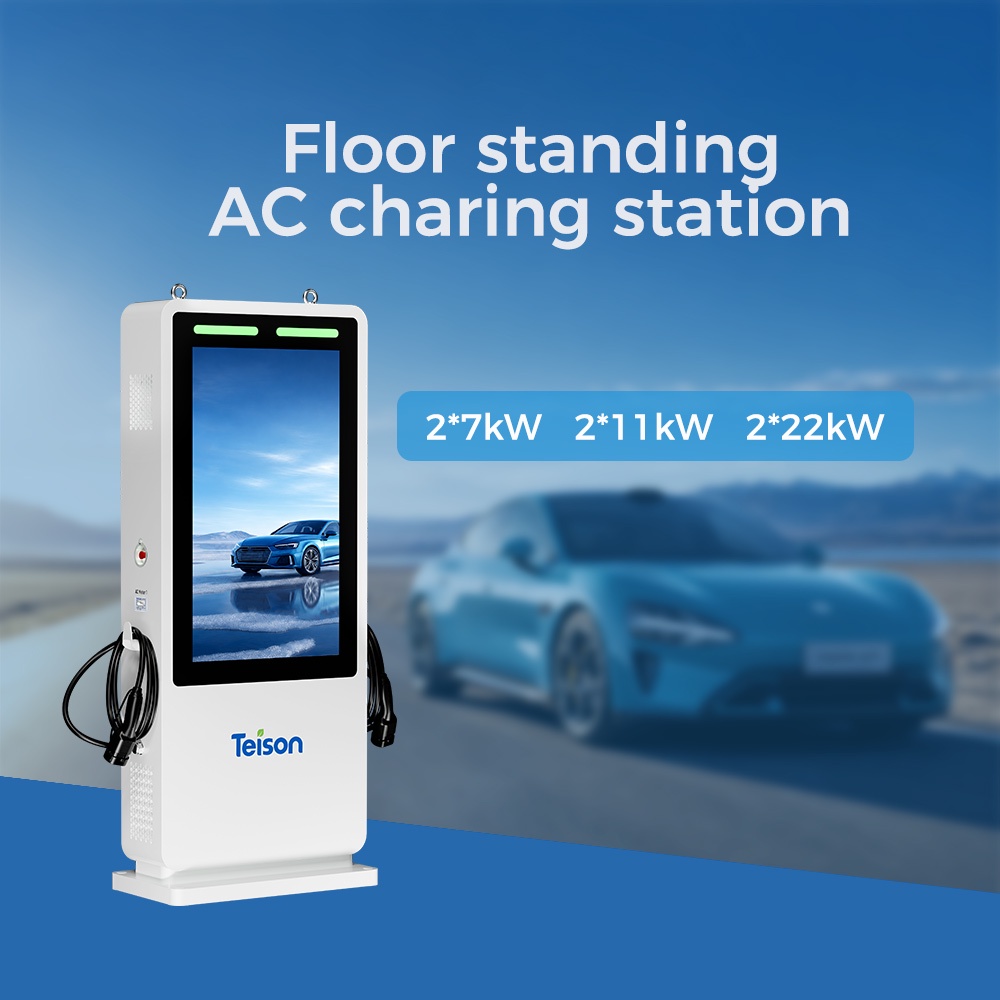

Installation Method Wall-mounted/Floor-stand
Network Gateway LAN/Wifi
Communication Protocol OCPP1.6(JSON)
Safety Standard EN IEC 61851-1:2019; IEC 61851-1:2017; EN IEC 61851-21-2:2021;
     EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021;
     EN IEC 61000-6-4:2019; ETSI EN 300 328 V2.2.2:2019;
     ETSI EN 300 330 V2.1.1:2017; ETSI EN 301 489-1 V2.2.3:2019;
     ETSI EN 301 489-3 V2.1.1:2019; ETSI EN 301 489-17 V3.2.4:2020;
     EN IEC 62311:2020
Warranty 2 years
Environmental Performance
Protection Level IP55
Temperature/Humidity ﹣30~50℃/5%~95% without condensation
Working Altitude ＜2000M
Application Site Indoor/Outdoor
Packing Details

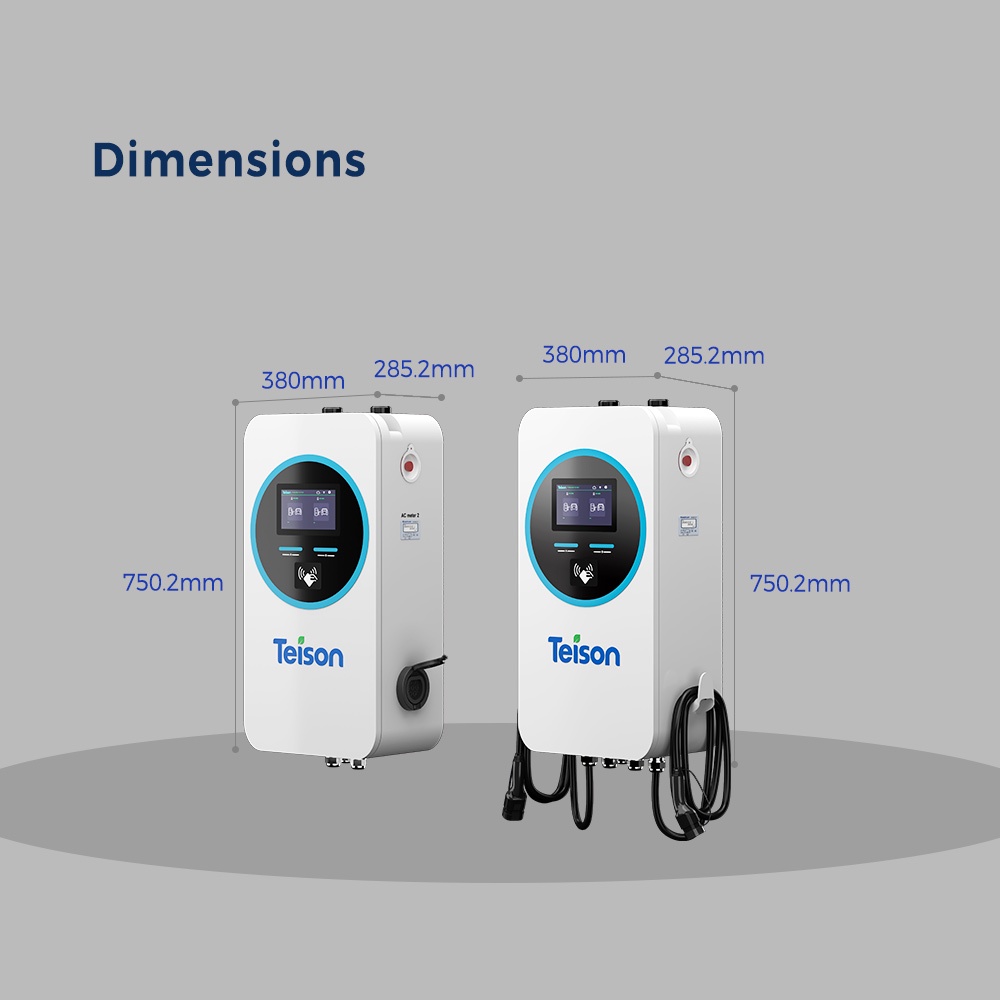

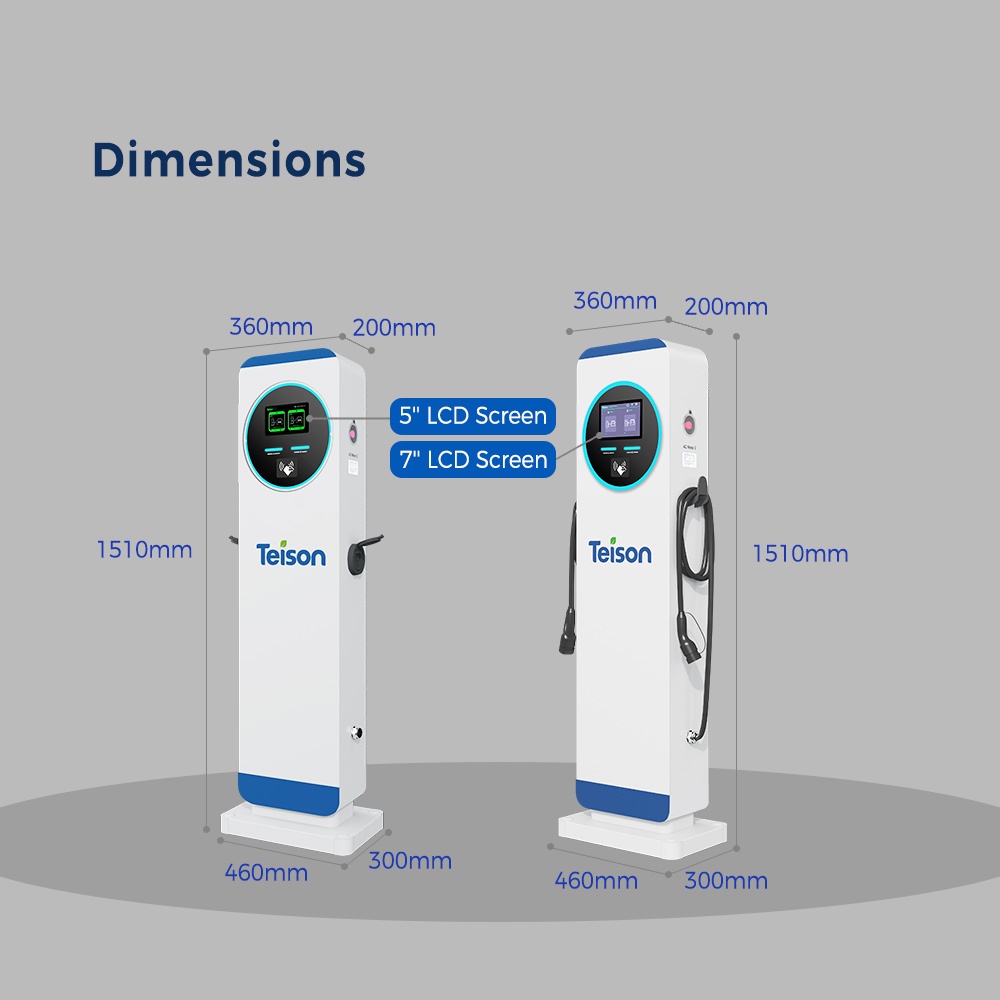

Product Size 380*240*750(mm)/360*200*1510(mm)
Base Size 0/460*300(mm)
Optional Configure
Dynamic load balancing RS485 meter or local junction box
Energy Meter MID certified
Network Cateway 4G
Socket 2*SCHUKO
