| Technical Specifications |
| Product Model |

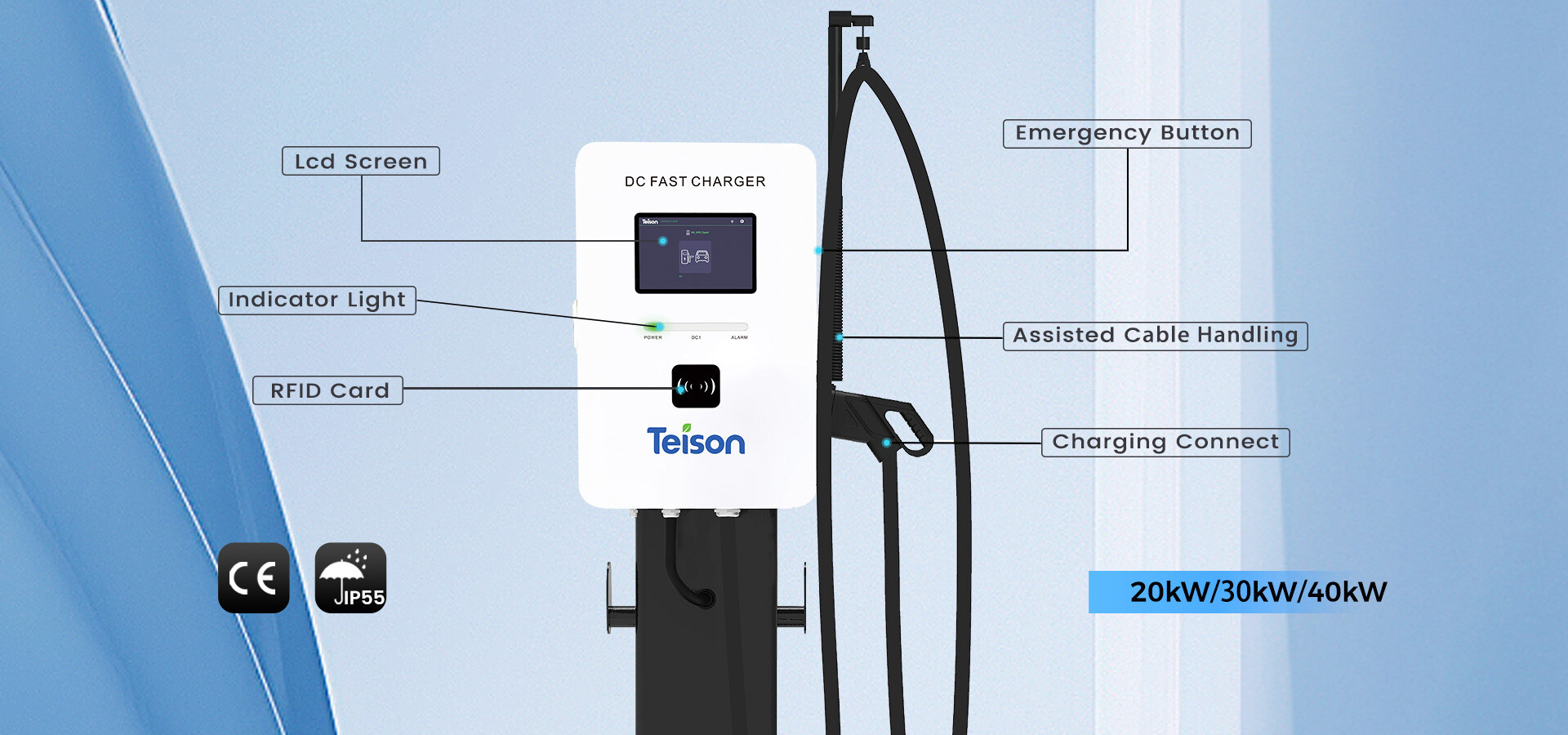

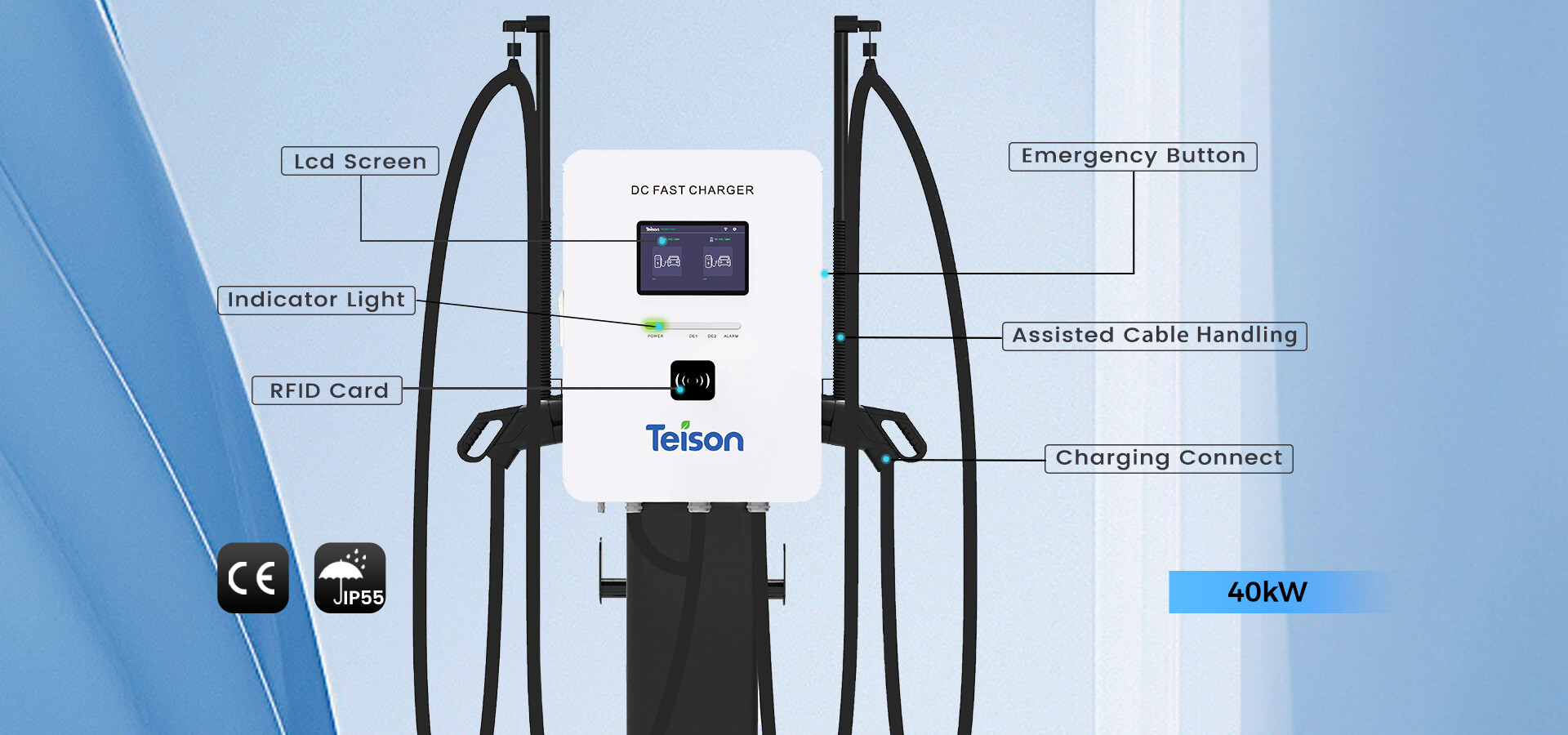

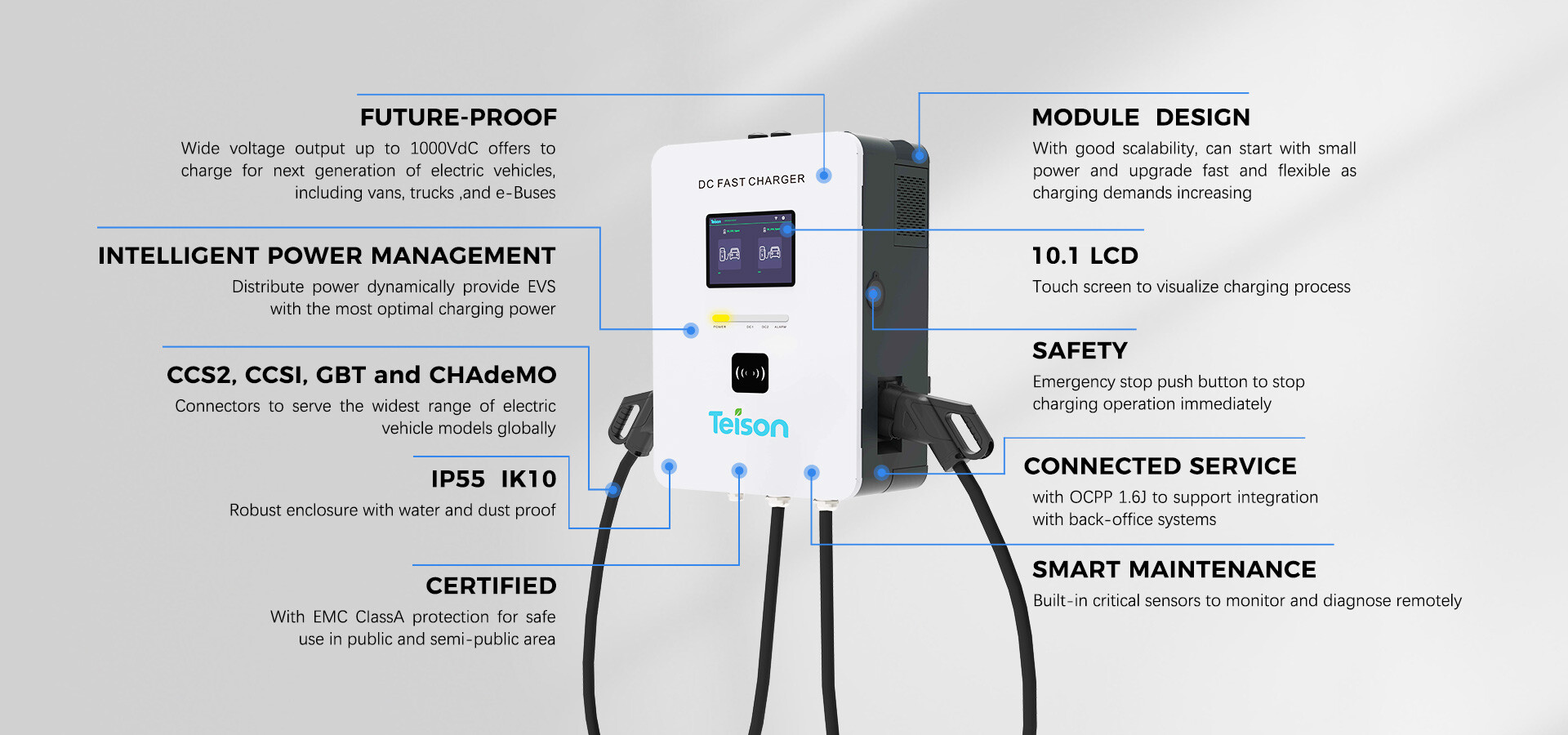

DC Mini |
| Electrical Properties |
AC
Input |
Input Voltage Range |
3-phase 400 VAC±10%, 50/60 Hz,3P+N+PE |
| Rated Input Current |
3Φ30A |
3Φ46A |
3Φ61A |
| Earthing System |
TN-C TN-S TN-C-S TT |
| Power Factor |
≥0.99 |
| Standby Power Consumption |
≤50W |
DC
Output |
Output Voltage Range |
150~1000 VDC |
| Max Output Current (system) |
66A |
100A |
133A |
Max Output Current
(connector) |
80A
(Optional) |
80A
(Optional) |
150A
(Optional) |
| Max Output Power |
20kW |
30kW |
40kW |
| Number Of Outputs |
1 (Any one of CCS2, CCS1, GBT, CHAdeMO, NACS) |
1 (Any one of CCS2, CCS1, GBT,
CHAdeMO, NACS)
2 (Any two combinations of
CCS2, CCS1, GBT,CHAdeMO, NACS) |
| Connector Type |

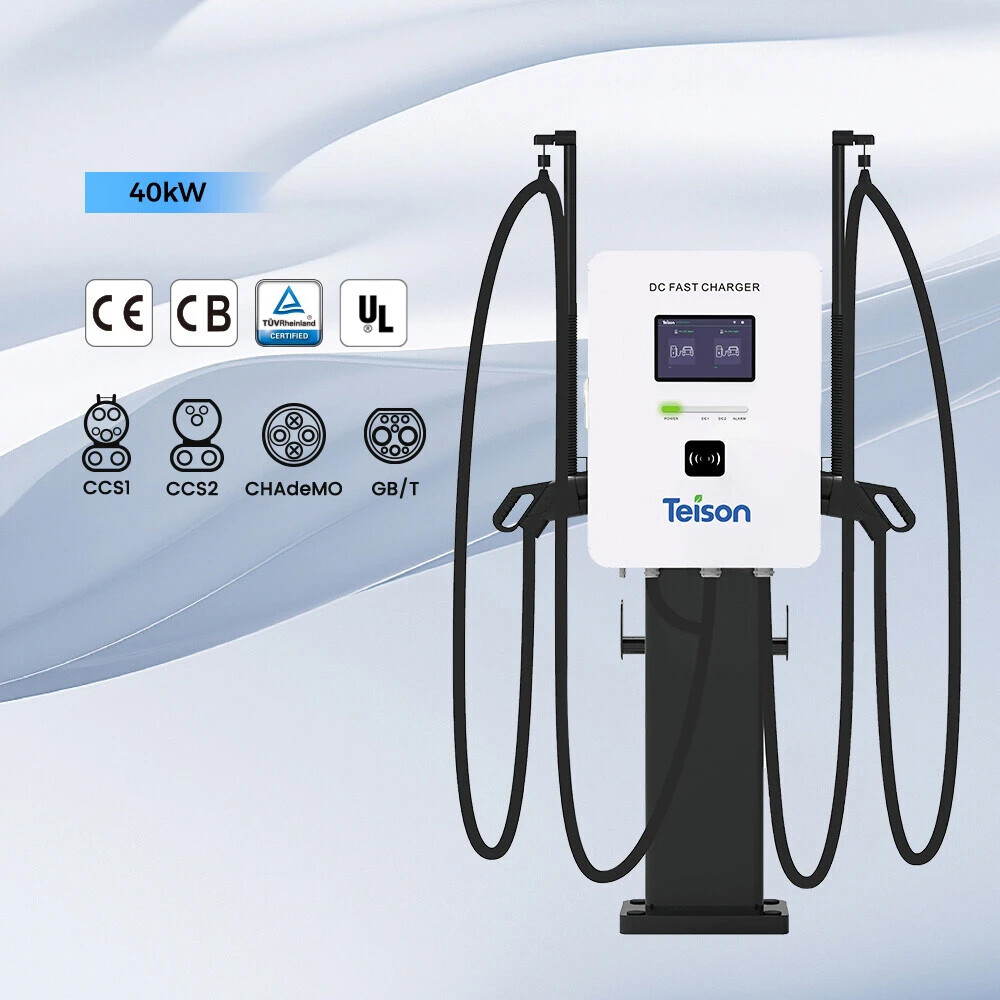

CCS2, CCS1, GBT, CHAdeMO, NACS |
| Voltage Accuracy |
≤±0.5% |
| Current Accuracy |
≤±1% |
| User Interface |
| Display |
10.1" Touch screen |
| Meter |
CE Meter |
| Push Buttons |
Emergency button |
| User Authentication |
RFID, QR code, Application |
| Support Language |
English (Other languages available upon request) |
| Communication |
| Network Connection |
Ethernet, Wi-Fi |
| Communication Protocol |
OCPP 1.6J, OCPP 2.0.1 |
| Environmental |
| Operating Temperature Range |
-30℃-50℃(Over 50℃derating) |
| Storage Temperature Range |
-40℃-70℃ |
| Humidity |
<95% relative humidity, Non-condensing |
| Altitude |
≤2000m |
| Mechanical |

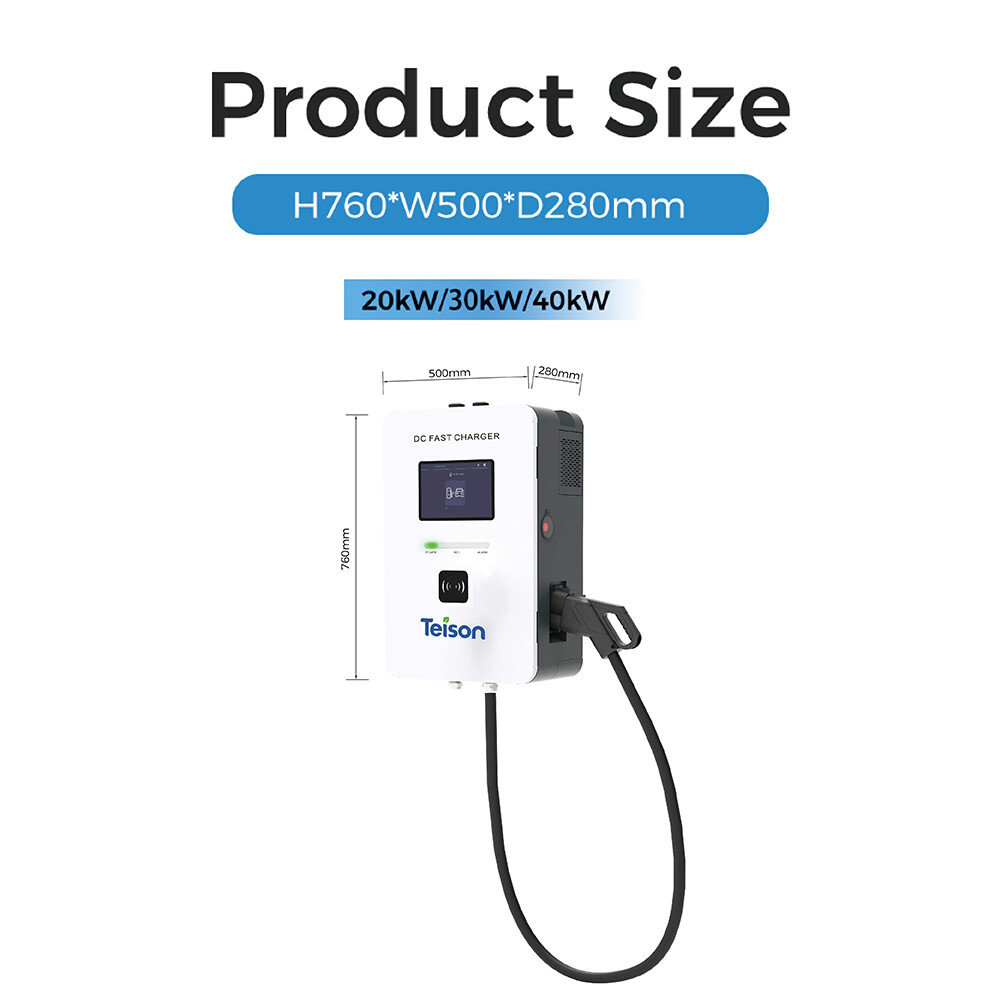

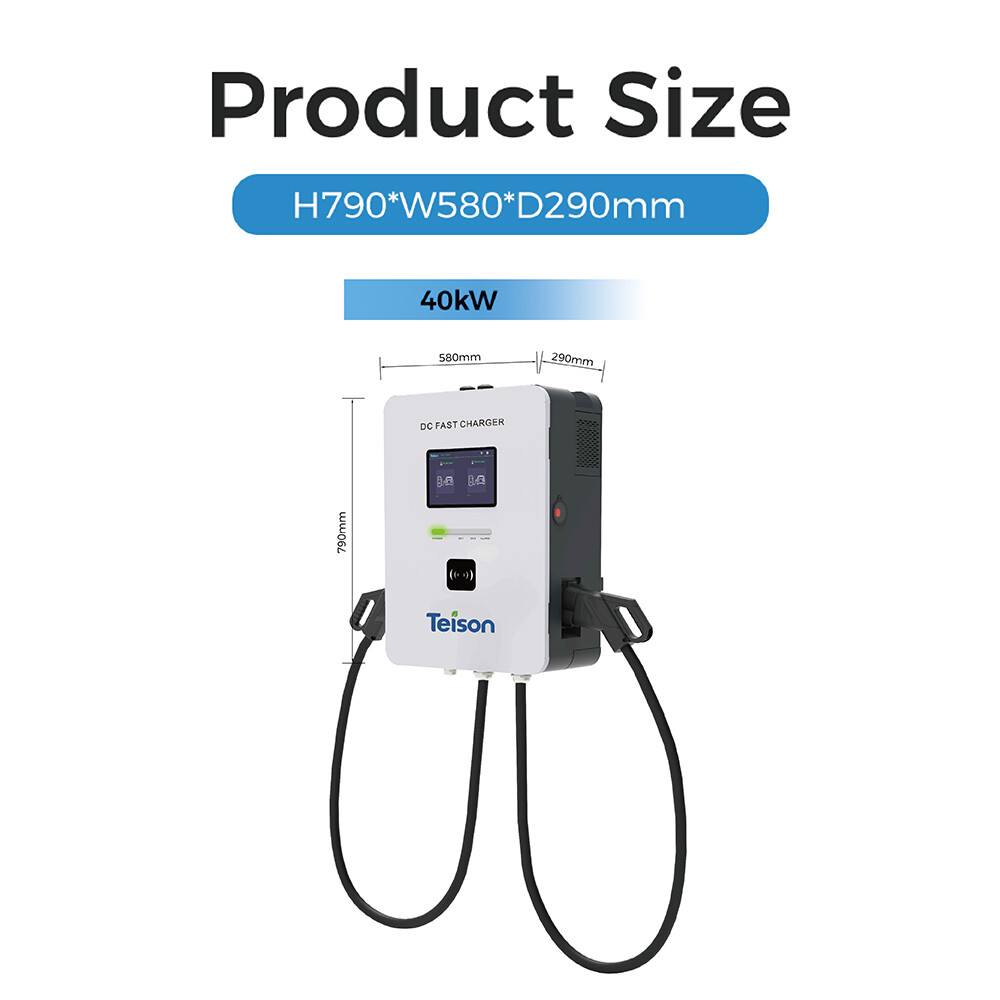

| Dimensions (W*D*H) |
500mm*280mm*760mm (Excluding cable management) |
One output：500mm*280mm*760mm
(Excluding cable management)
Two output：580mm*290mm*790mm
(Excluding cable management) |
| Weight |
≤90kg |
One output：≤90kg
Two output：≤125kg |
| IP & IK Rating |
IP55 & IK10 (HMI IK8) |
| Charging Cable Length |
5m |
| Cooling |
Air cooling |
| Installation Method |
Wall-mount or Column |
| Protection |
| Protection |
Over voltage protection, Under voltage protection, Overload protection, Leakage current
protection, Over temperature protection, Surge protection, Short circuit protection, Fault
self-check, Insulation detection. |
| Certification And Standards |
| Certificate |
CE CB |
| Charging Standards |
IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3 |
| Communication Protocol Standards |
ISO15118-1; ISO15118-2; ISO 15118-3; DIN 70121 |
| Optional Config |
| Installation method |

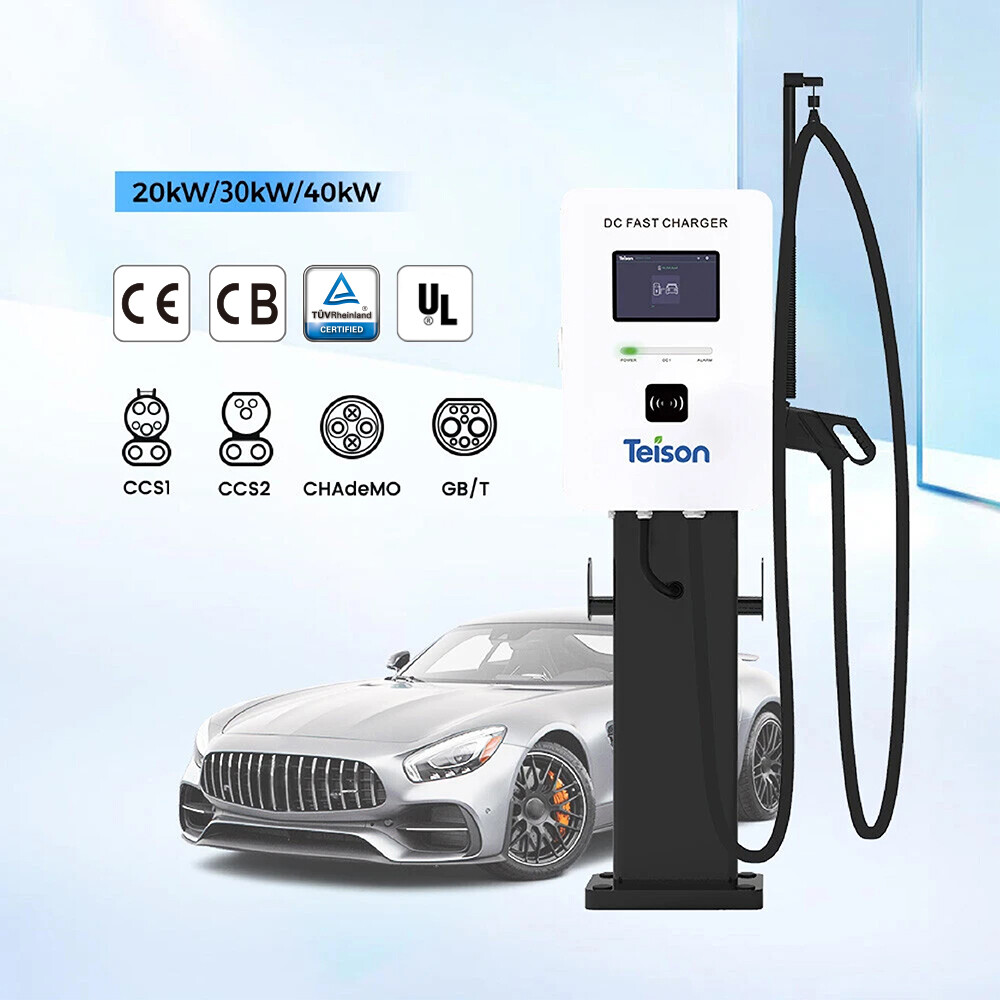

Column |
| Meter |
MID Meter |
| User Authentication |
POS Machine |
| Network Connection |
4G |
| Charging Cable Length |
6m 7m Other lengths upon request |
| Cable Management System |
Optional |
| Customized Branding |
Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity |
