60kW/120kWh

LiFePO4 Battery(support 6000 cycles)

Battery 60kw Power Max Discharging

Fire System / Air Conditioning

Peak Load Shifting Function

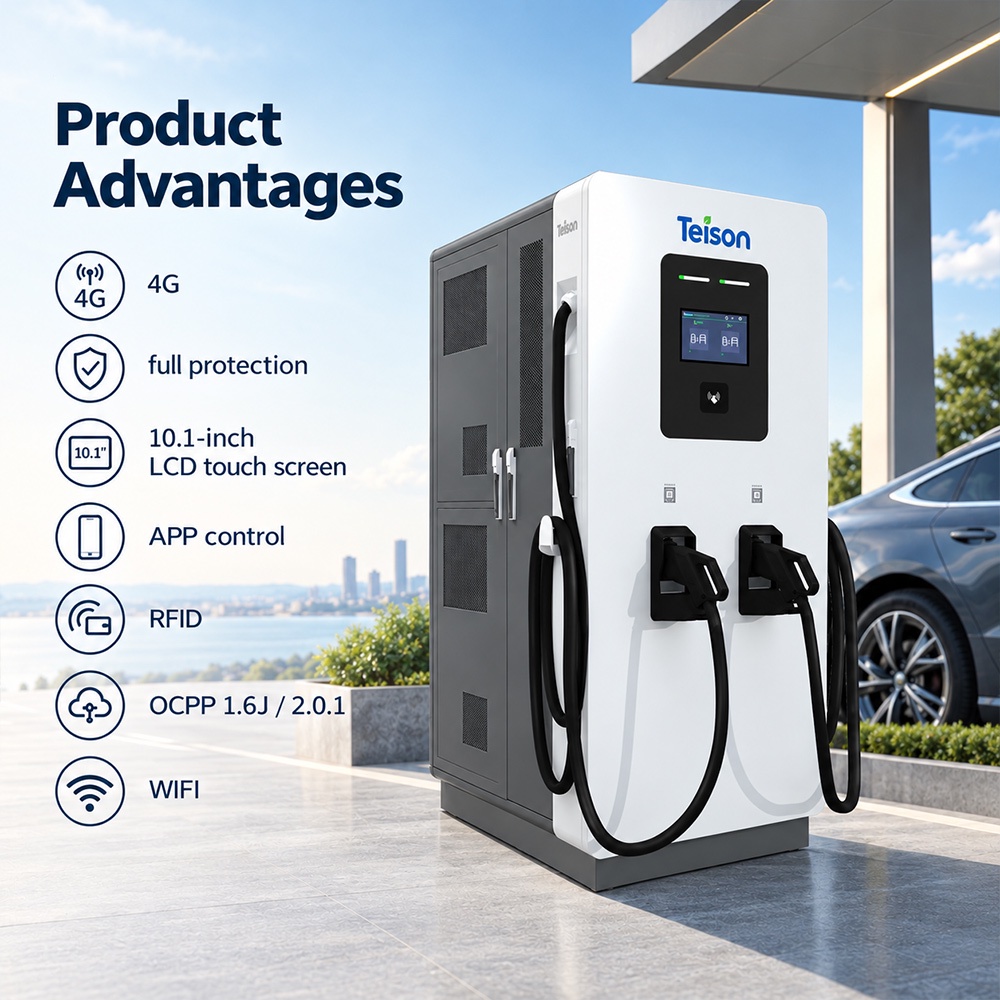

Three running mode optional

10.1'inch Android LCD Touch Screen

OCPP1.6J / OCPP2.0.1

Cloud Commercial Management Platform

LAN/4G/WIFI

Multiple standard charging port combinations

Highly integrated

Cybersource/Paypal/Stripe/POS

Request A Quote



FEATURES/ADVANTAGES

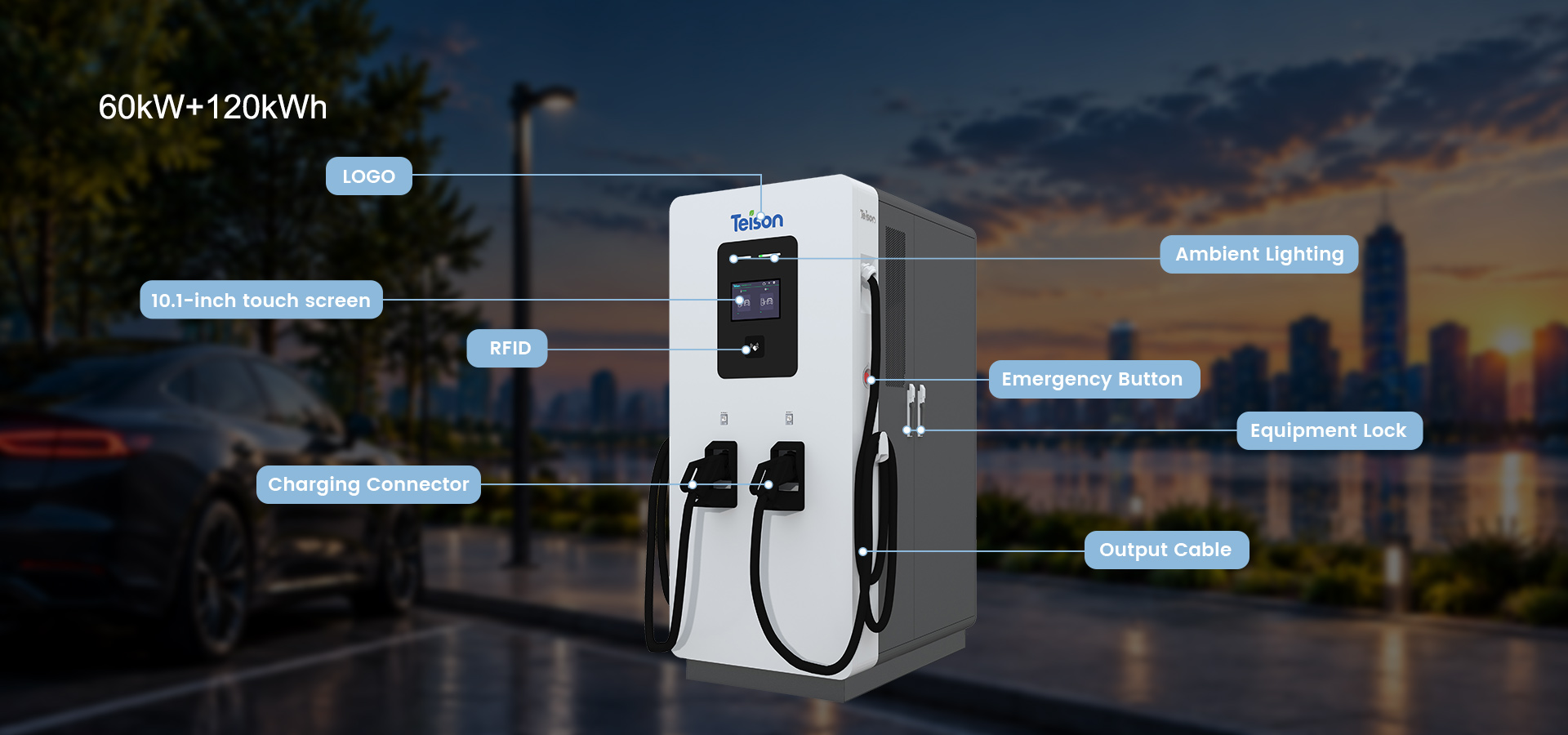

  • 60kW+120kWh

FEATURES

Our advanced battery-integrated EV charger delivers an efficient, reliable, and cost-effective charging solution for homes and businesses. By combining fast charging with intelligent energy storage, it:

✅ Boosts Charging Efficiency – Reduces energy waste and optimizes power delivery.

✅ Enhances Grid Stability – Alleviates peak demand stress and supports renewable energy integration.

✅ Provides Emergency Backup Power – Keeps you powered during outages.

✅ Lowers Costs – Reduces grid infrastructure investments and operational expenses.

APPLICATIONS

Roadside Rescue

Public corridor charging along the highways

Busy urban areas

Commercial fleet operators

EV Infrastructure operators and EVSE providers

Service centers

Parameter

Technical Specifications
Product Name Teison DC ESS 60kW/120kWh Stationary
Electrical Properties
AC Input Input Voltage Range 3-phase 400 VAC ± 10%, 50 / 60 Hz，3P+N+PE
Rated Input Current 3Ф96A
Max Input Power 60 kw
Power Factor ≥0.99
Efficiency ≥95%
DC Output Output Voltage Range 200 V ~ 1000 V
Max Output Current(system) 200 A
Output Current(connector) 150 A（200 A optional）
Max.Output Power 60 kW

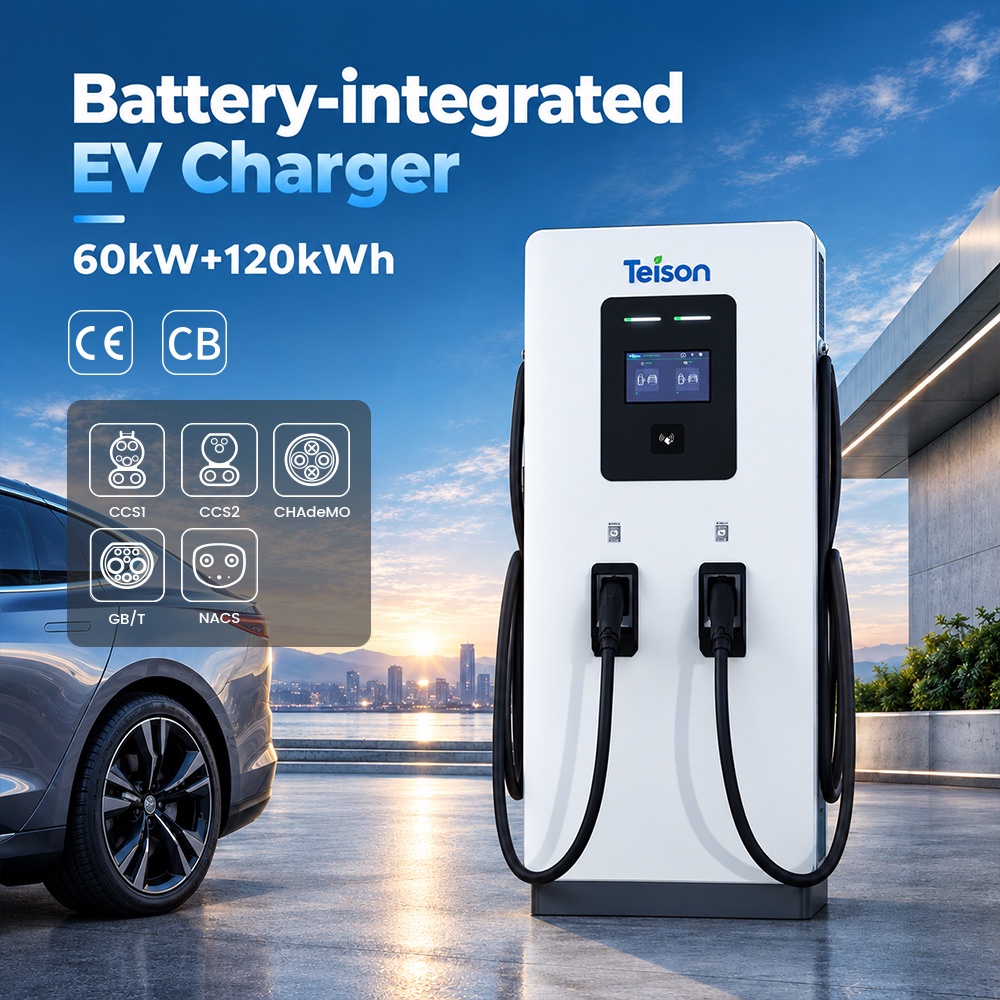

Number Of Outputs 2（Any two combinations of CCS2, CCS1, GBT, CHAdeMO, NACS）
Connector Type CCS2, CCS1, GB / T, CHAdeMO, NACS
Voltage Accuracy ± 0.5%
Current Accuracy ± 1%
Energy-Storage
System		 Battery Capacity 120 kWh
Usable Energy(SAT) 114 kWh (95%DOD)
Battery Nominal Voltage 336-432 V
Battery Material LiFePO4
Rated Recharge/Discharge Rate 0.5 C
Max Recharge Power 60 kW
Max Discharge Power 60 kW
Battery Cycle Life(25°C) ≥6000 (80% DOD)
Solar System Max Input Voltage 1000 V
Voltage Range of MPPT 150~950 V
Max Input Power 108 kW
Number of MPPT 4
User Interface
Display 10.1-inch Touch Screen
Meter CE Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, WIFI
Communication Protocol OCPP 1.6J， Support upgrading to OCPP 2.0.1
Environmental
Operating Temperature Range -25 ℃-50 ℃ (Over 45 ℃ derating)
Storage Temperature Range -40 - 70 ℃
Humidity <95% relative humidity, non-condensing
Altitude ≤2000 m
Mechanical
Dimensions（W × D × H) 1000 mm × 1300 mm × 2050 mm
Weight ≤1800 kg

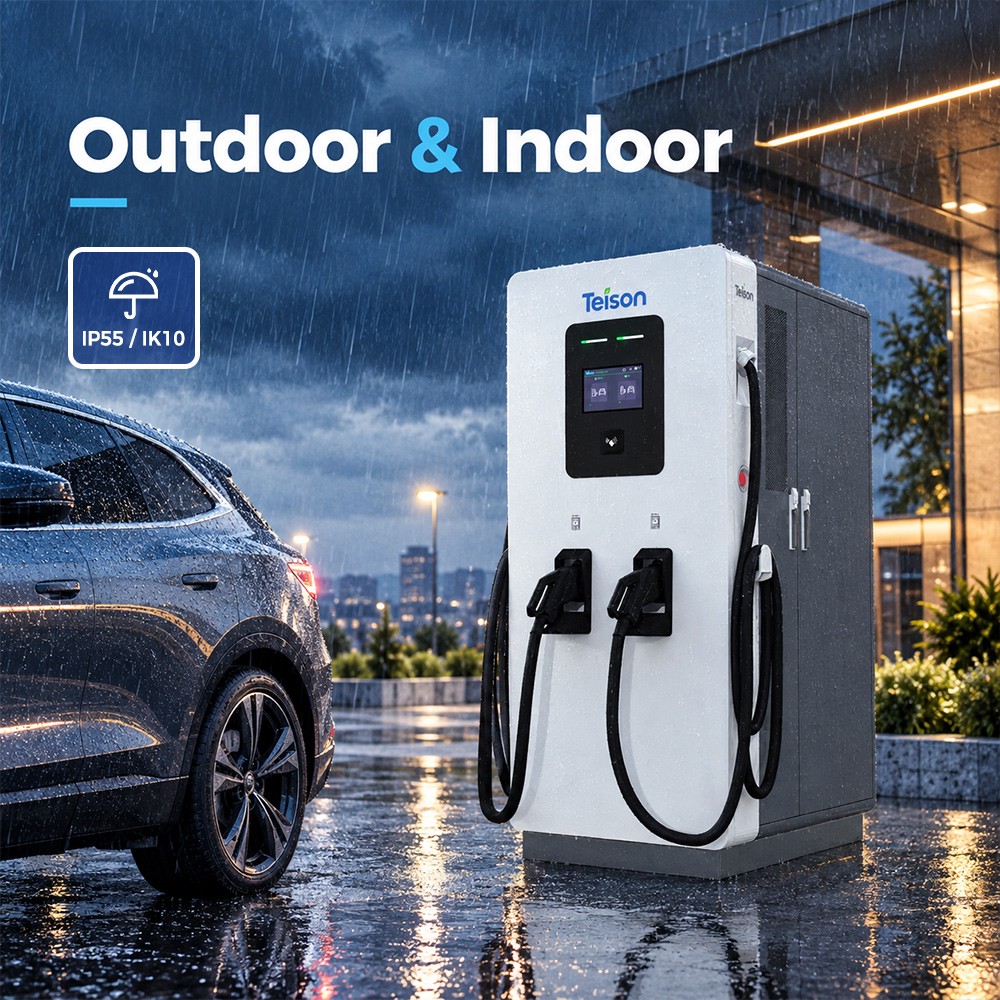

IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5 m
Cooling System Air Cooling / Air Conditioning
Installation Method Floor Mounted
Protection
Protection Over voltage protection, Under voltage protection, Overload protection,
Leakage current protection, Over temperature protection, Grounding
protection, Surge protection, Short circuit protection, Fault self-check,
Insulation detection.
Fire System SComposite Detector + Aerosol Extinguishing Agent
Certification And Standards
Certificate CE, CB, MSDS.UN38.3
Standard IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3
Optional Config
Network Connection 4G
User Authentication POS Machine
Charging cable length 6m, 7m, Other lengths upon request
Cable Management Optional
Advertising Screen Optional
Meter MID Meter
Solar Port Optional
