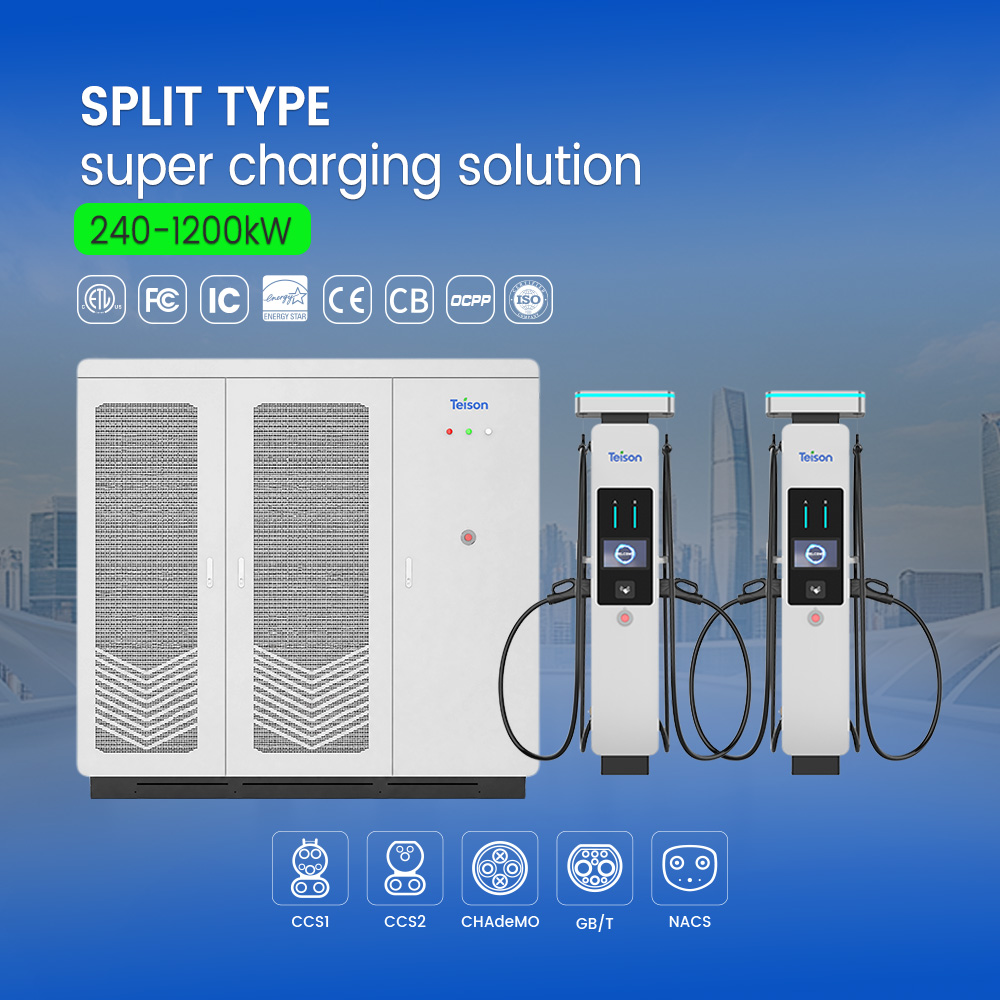

240kW-1.2MW DC Split Charging Solution

Up to 1200 kW output

Simultaneous DC charging for up to 20+ vehicles

150 -1000 VDC output range

Delivering up to 600kW per connector, 1.2MW MCS

Configurable Air-Cooled (400A) or Liquid-Cooled (600A) or MCS (1200A) charging terminals

Integrated cable management system

10.1’ inch Touchscreen and push button interface

Plug & Charge (ISO 15118), OCPP 1.6J / OCPP 2.0.1

Type 3R/IP55 & IK10 Protection

Smart Power Sharing

BMS Voltage Automatic Switching

Remote OTA updates

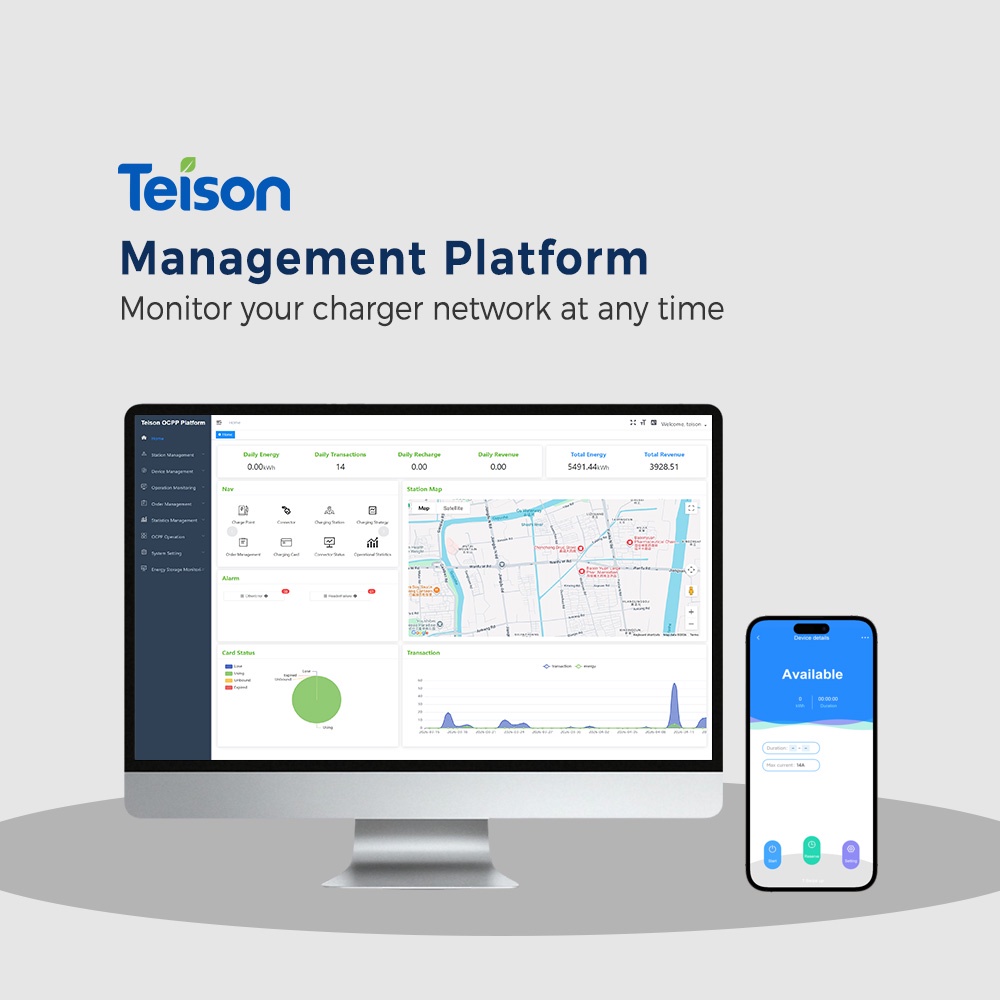

Operational Oversight in Real Time

Request A Quote



FEATURES/ADVANTAGES

  • 轮播海报
  • dcsplit1.2mw详情海报图

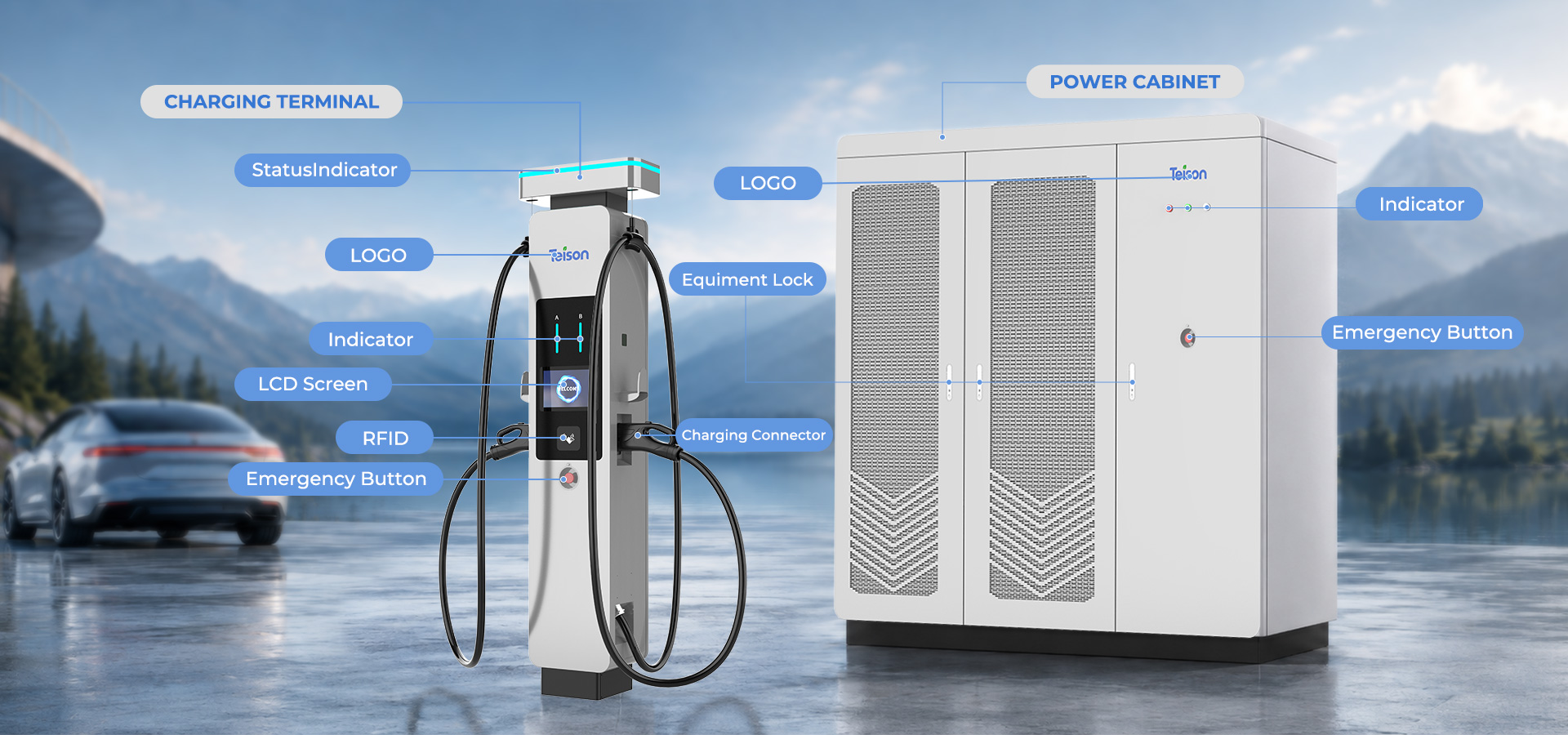

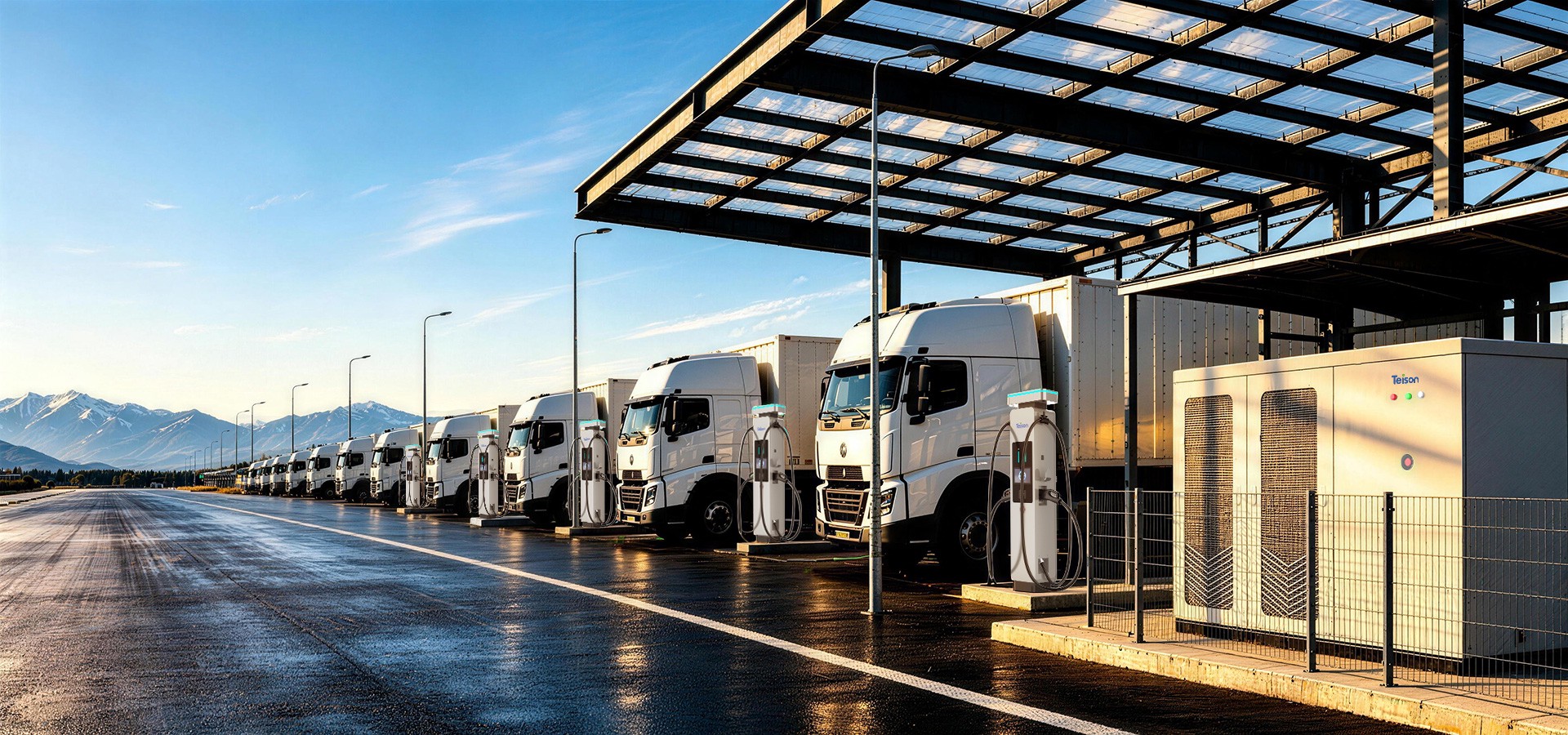

An ultra-fast, split-type charging system designed for commercial, heavy-duty EV charging system



✅ Ultra-Fast Charging Performance

Delivering up to 600kW per connector enabling vehicles to gain 400 km of range in just 5 minutes and supporting MCS dispenser up to 1.2MW.

✅ Universal Compatibility

Fully compatible with Plug & Charge (ISO 15118), OCPP 1.6J / OCPP 2.0.1, and high-current charging protocols for both commercial EVs and heavy-duty vehicles.

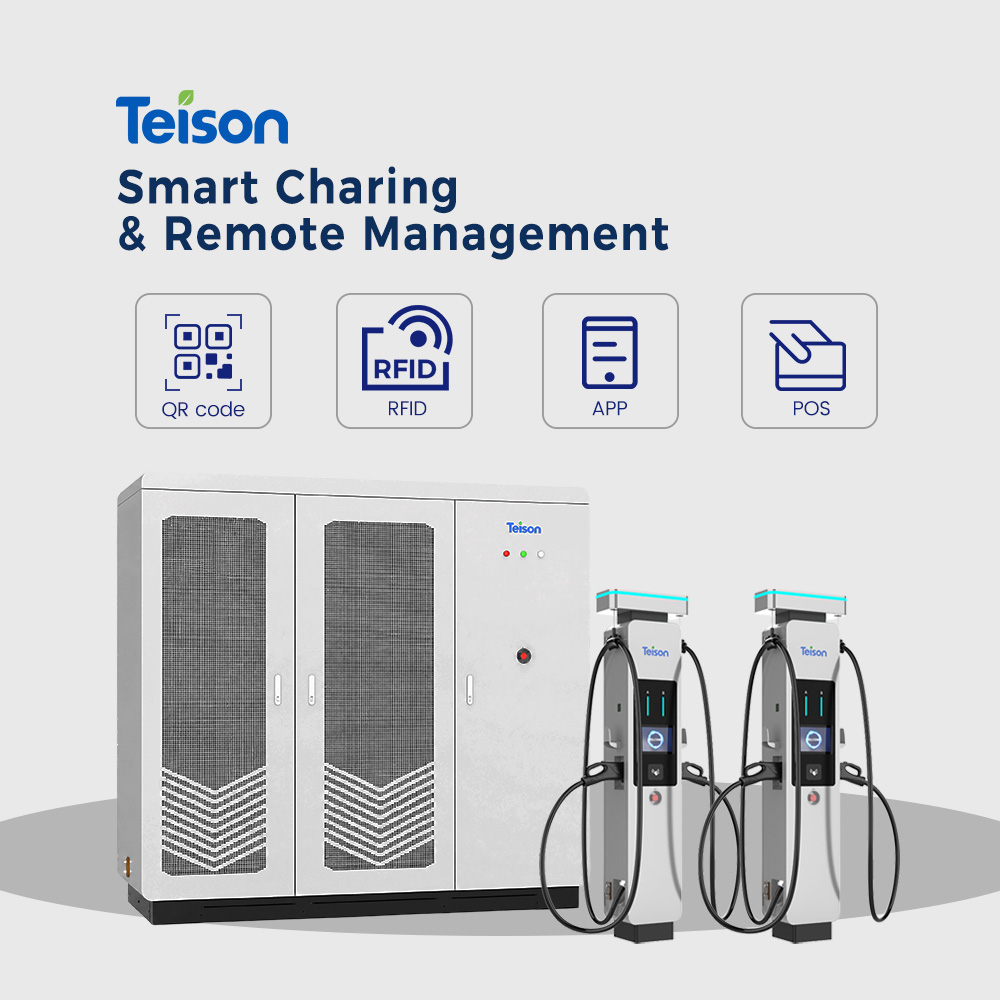

Supports remote OTA updates and advanced fleet management integration.

✅ Maximum Deployment Flexibility

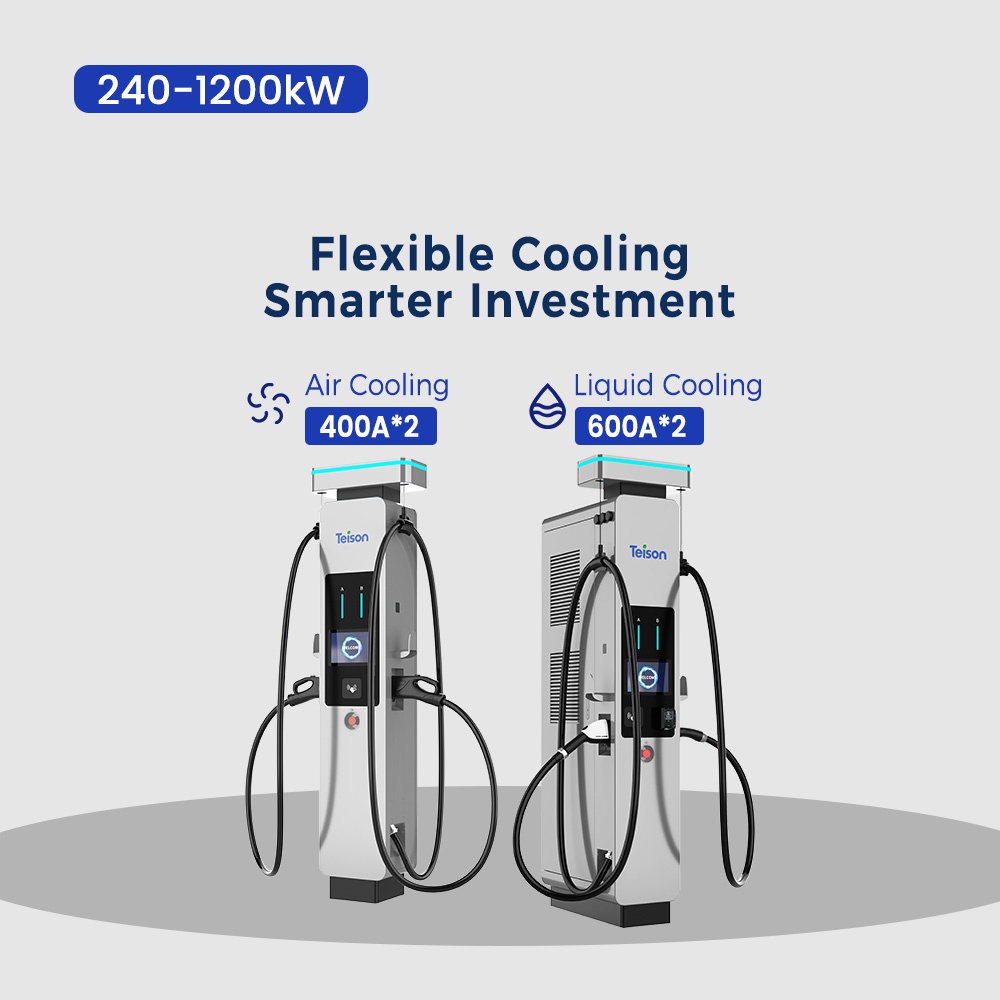

Configurable Air-Cooled (400A) or Liquid-Cooled (600A) or MCS (1200A) charging terminals to match diverse site layouts and vehicle requirements.

✅ Reliability Operations

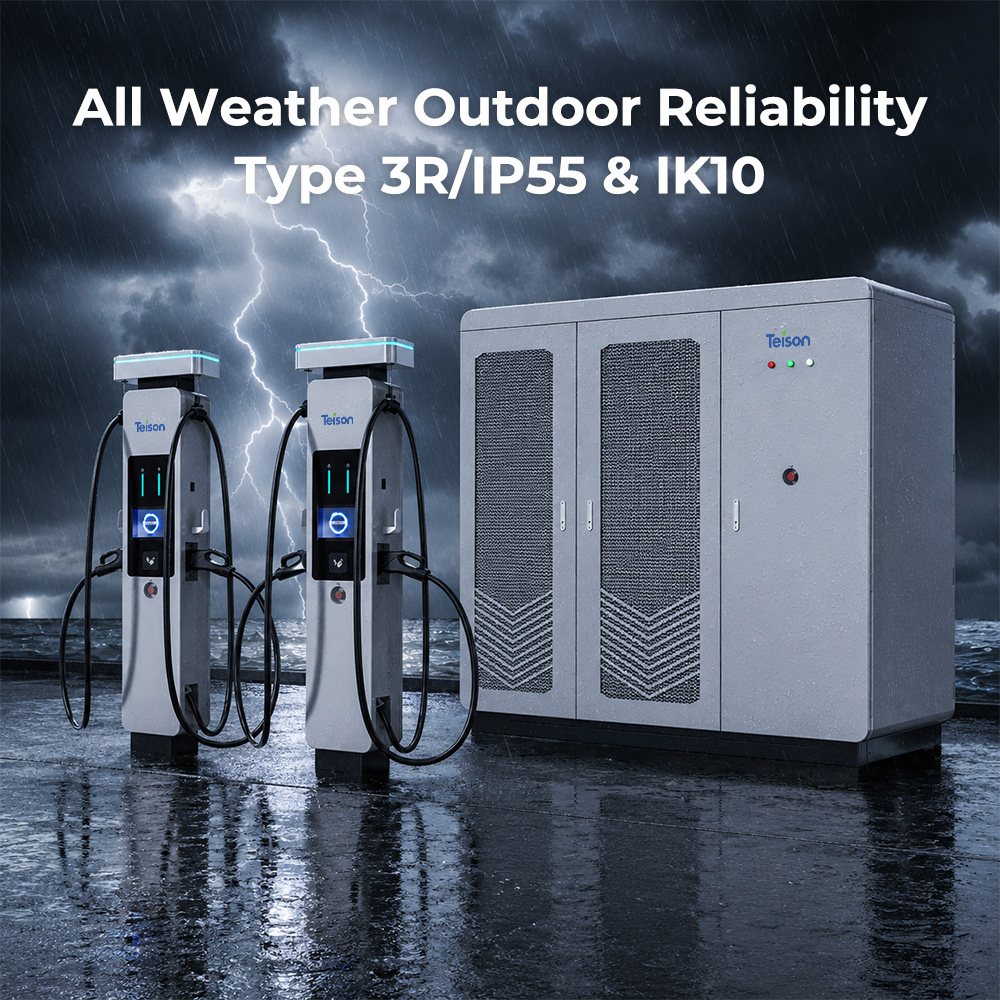

Engineered for 99.9% uptime with 0.1-second fault isolation, Type 3R/IP55 &IK10 rugged protection, and -22 °F to 131 °F(-30°C to 55°C) wide-temperature adaptability, all-weather outdoor reliability.

✅ Scalable, For the Future

Modular, zero-downtime expansion from 1 to 20+ dispensers / connectors / terminals. Compatible with Solar power, Energy storage and Energy management systems.

✅ AI-Driven End-to-End Intelligence

From AI-driven power distribution and conversion systems (PDU / PCU) to intelligent fault diagnostics for smarter operations and faster maintenance.

✅ Smarter Energy Optimization

Smart Matrix Scheduling dynamically distributes power across the network, increasing energy utilization by 18% while extending overall system lifespan by 30%.

Parameter

     Technical Specifications
Product Model

DC Split 240-720 kW
     Electrical Properties
AC
Input		 Input Voltage Range 3-phase 480 VAC±10%, 50/60 Hz， 3P+PE
Rated Input Current 304 A 355 A 405 A 456 A 506 A 557 A 608 A 658 A 709 A 760 A 810 A 861 A 912 A
Max Input Power 253 kW 295 kW 337 kW 379 kW 421 kW 463 kW 505 kW 547 kW 589 kW 632 kW 674 kW 716 kW 758 kW
Power Factor ≥0.99
Peak Efficiency ≥95%
Standby Power Consumption ≤50 W
Harmonic Distortion (THDi) ≤5%
DC
Output		 Output Voltage Range 150~1000 VDC
Maximum Output Power 240 kW 280 kW 320 kW 360 kW 400 kW 440 kW 505 kW 520 kW 560 kW 600 kW 640 kW 680 kW 720 kW
Maximum Current Output
Per Channel		 400 A(air cooling cable)
600 A(liquid cooling cable)
Number Of Output Channels 6 6 8
(optional:6)		 8
(optional:6)		 10
(optional:6,8)		 10
(optional:6,8)		 12
(optional:6,8,10)
Voltage Accuracy ≤±0.5%
Current Accuracy ≤±1%
     User Interface
Display 10.1" Touch screen
Push Buttons Emergency button
Support Language English (Other languages available upon request)
     Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J，OCPP 2.0.1
     Environmental
Operating Temperature Range -22 °F to 131 °F(Derating from 131 °F)
Storage Temperature Range -40 °F to 158 °F
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000 m（6561.68'）
Noise ＜70dB @ 3 m（9.84'）77 °F Full power
     Mechanical
Dimensions （W x D x H) 2400mm ( 7.87') x 1000mm (3.28') x 2250mm (7.38')
Weight ≤1653.47 lb
IP & IK Rating Type 3R&IK10 (HMI IK8)
Cooling Air cooling
Installation Method Floor mounted
     Protection
Protection Over voltage protection, Under voltage protection, Overload protection, Leakage current
protection, Over temperature protection, Grounding protection, Surge protection, Short
circuit protection, Fault self-check, Insulation detection.
     Certification And Standards
Certficate ETL,FCC,IC,Energy Star
Charging Standards UL 2202, UL 2231-1, UL 2231-2, FCC part 15 Class A,Energy Star
Communication Protocol Standards ISO15118-1; ISO15118-2; ISO 15118-3;
DIN 70121

     Optional Cofig
Network Connection 4G
Fiexible Allocation Full-flex, Semi-flex
Maximum Current Output Per
Channel		 400A (Matched with air cooling terminal)
600A (Matched with liquid cooling terminal)
Number Of Output Channels 6,8,10,12（Up to 4 liquid cooling channels）
Customized Branding Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity

     Technical Specifications
Product Model

DC Split 760-1200 kW
     Electrical Properties
AC
Input		 Input Voltage Range
Rated Input Current 962 A 1013 A 1064 A 1114 A 1165 A 1216 A 1266 A 1317 A 1367 A 1418 A 1469 A 1519 A
Max Input Power 800 kW 842 kW 884 kW 926 kW 968 kW 1010 kW 1052 kW 1095 kW 1137 kW 1179 kW 1221 kW 1263 kW
Power Factor ≥0.99
Peak Efficiency ≥95%
Standby Power Consumption ≤50 W
Harmonic Distortion (THDi) ≤5%
DC
Output		 Output Voltage Range 150~1000 VDC
Maximum Output Power 760 kW 800 kW 840 kW 880 kW 920 kW 960 kW 1000 kW 1040 kW 1080 kW 1120 kW 1160 kW 1200 kW
Maximum Current Output
Per Channel		 400 A(air cooling cable)
600 A(liquid cooling cable)
Number Of Output Channels 12
(optional:6,8,10)
Voltage Accuracy ≤±0.5%
Current Accuracy ≤±1%
     User Interface
Display 10.1" Touch screen
Push Buttons Emergency button
Support Language English (Other languages available upon request)
     Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J，OCPP 2.0.1
     Environmental
Operating Temperature Range -22 °F to 131 °F(Derating from 131 °F)
Storage Temperature Range -40 °F to 158 °F
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000 m（6561.68'）
Noise ＜70dB @ 3 m（9.84'）77 °F Full power
     Mechanical
Dimensions （W x D x H) 2400mm ( 7.87') x 1000mm (3.28') x 2250mm (7.38')
Weight ≤1653.47 lb
IP & IK Rating Type 3R&IK10 (HMI IK8)
Cooling Air cooling
Installation Method Floor mounted
     Protection
Protection Over voltage protection, Under voltage protection, Overload protection, Leakage current
protection, Over temperature protection, Grounding protection, Surge protection, Short
circuit protection, Fault self-check, Insulation detection.
     Certification And Standards
Certificate ETL,FCC,IC,Energy Star
Charging Standards UL 2202, UL 2231-1, UL 2231-2, FCC part 15 Class A,Energy Star
Communication Protocol Standards ISO15118-1; ISO15118-2; ISO 15118-3;
DIN 70121
     Optional Cofig
Network Connection 4G
Fiexible Allocation Full-flex, Semi-flex
Maximum Current Output Per
Channel		 400A (Matched with air cooling terminal)
600A (Matched with liquid cooling terminal)
Number Of Output Channels 6,8,10,12（Up to 4 liquid cooling channels）
Customized Branding Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity
