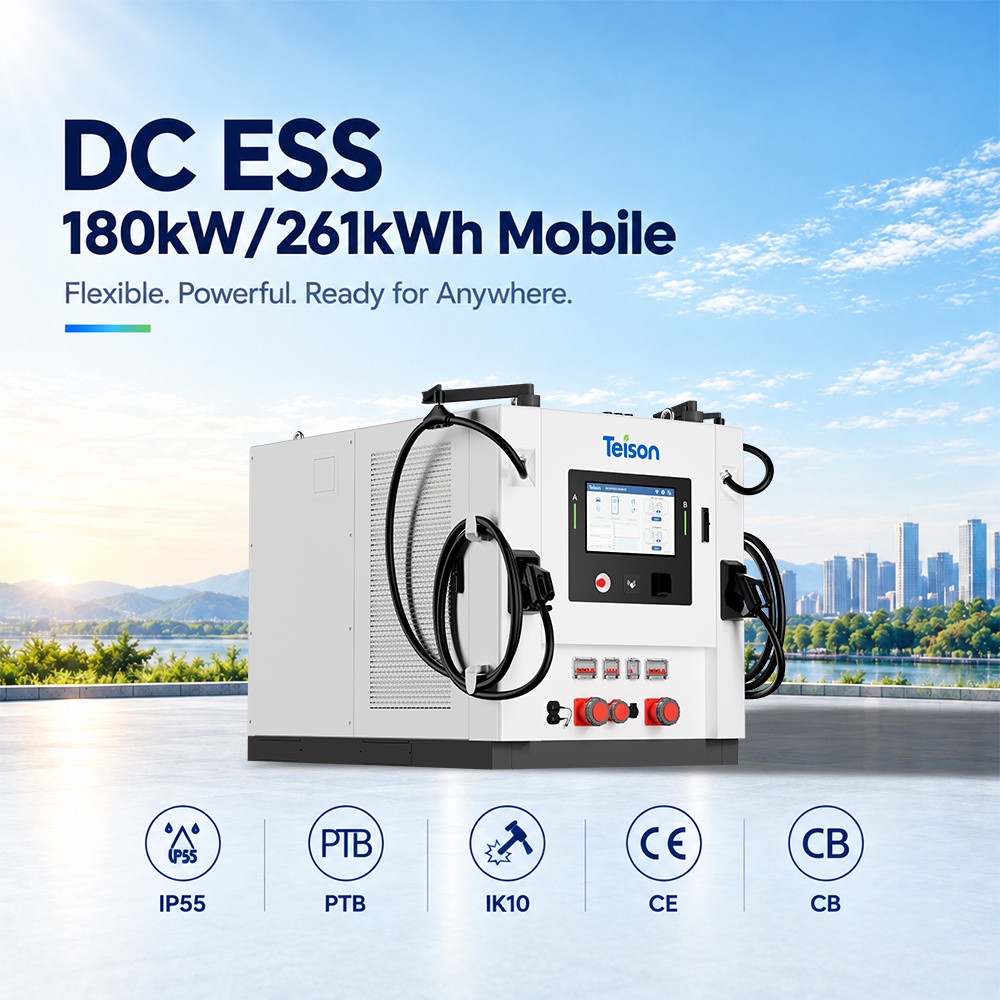

180主图替换

›

‹

  • 180主图替换

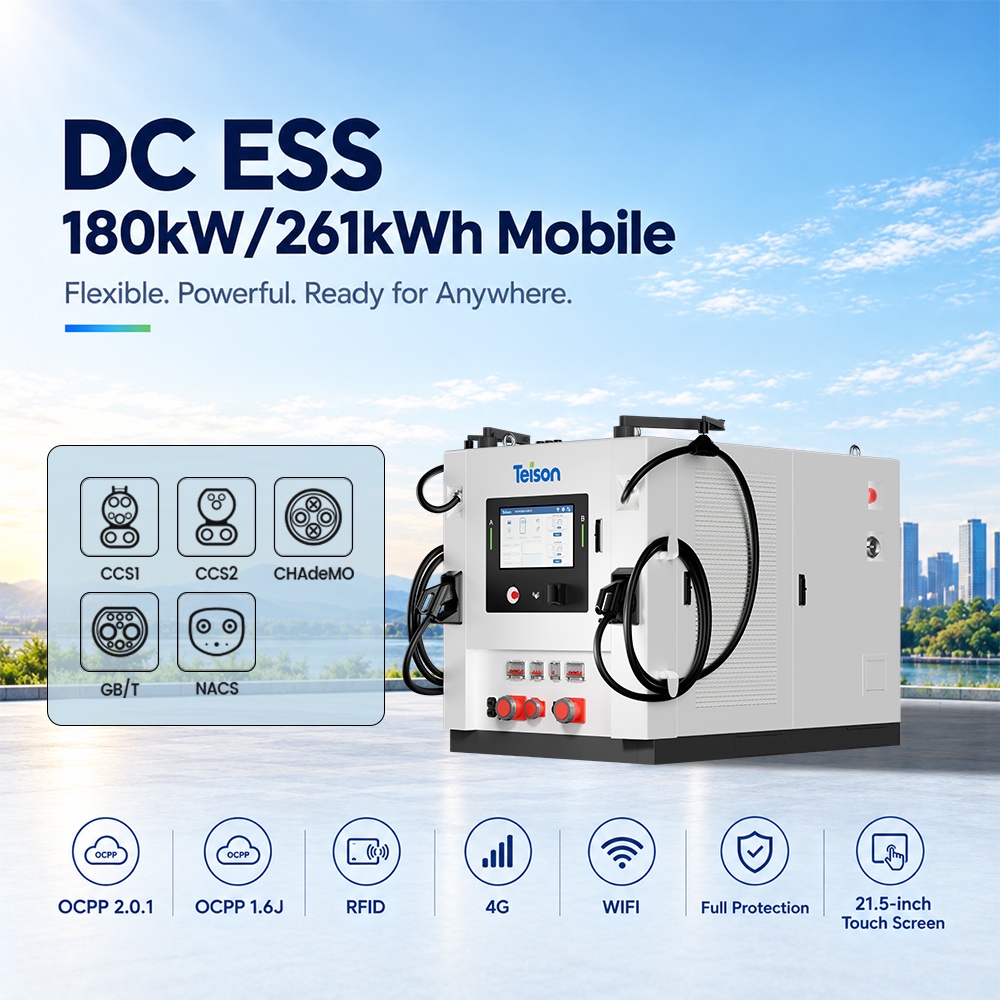

  • 主图180-移动储充02

›

180kW/261kWh

LiFePO4 Battery(support 6000 cycles)

Battery 130kw Power Max Discharging

Fire System / Liquid Cooling

Peak Load Shifting Function

Three running mode optional

Solar Input Function optional

21.5-inch touch screen

OCPP1.6J Full Function /OCPP2.0.1

Cloud Commercial Management Platform

LAN/4G/WIFI

Multiple standard charging port combinations

Highly integrated

Cybersource/Paypal/Stripe/POS

Request A Quote



FEATURES/ADVANTAGES

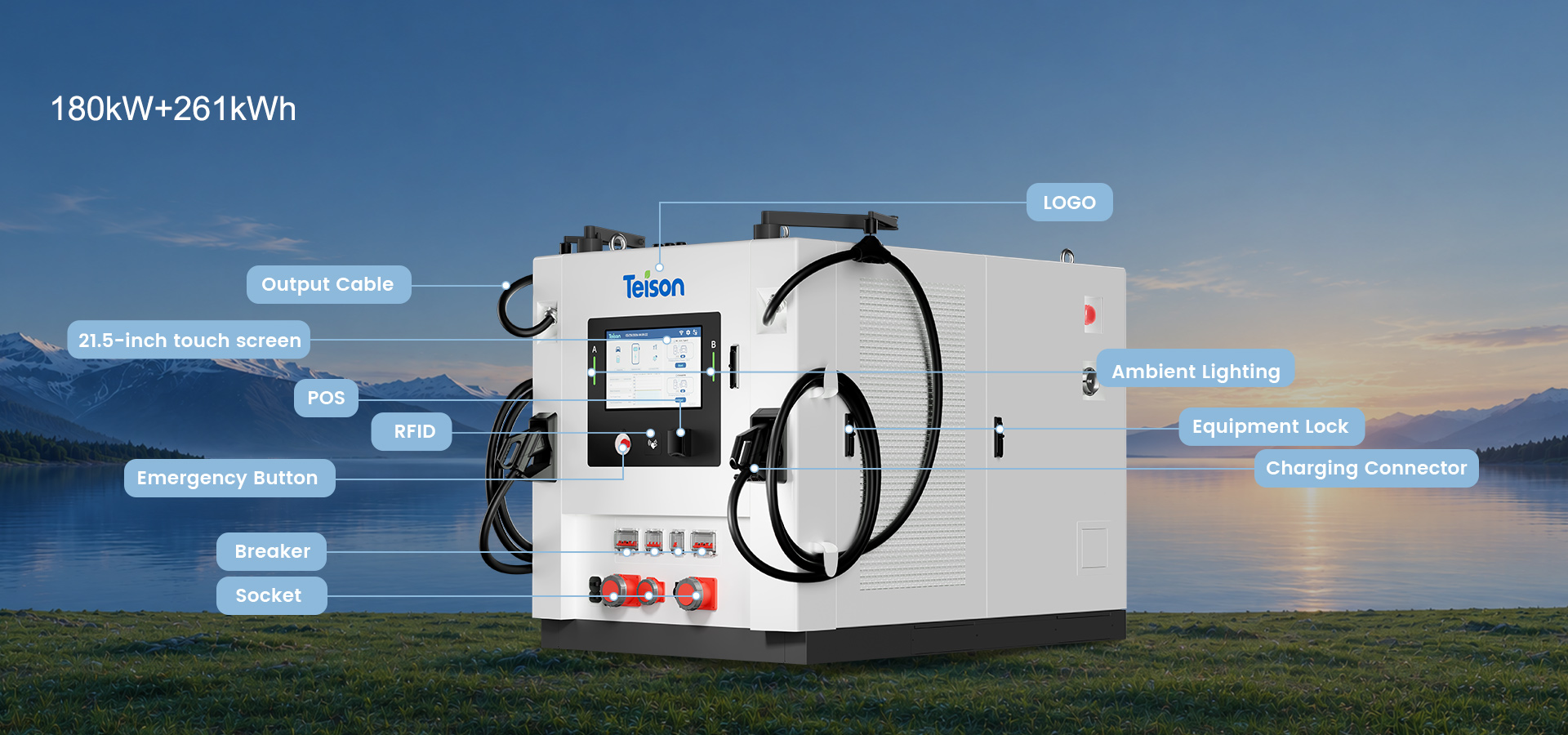

  • 180kW+261kW-移动

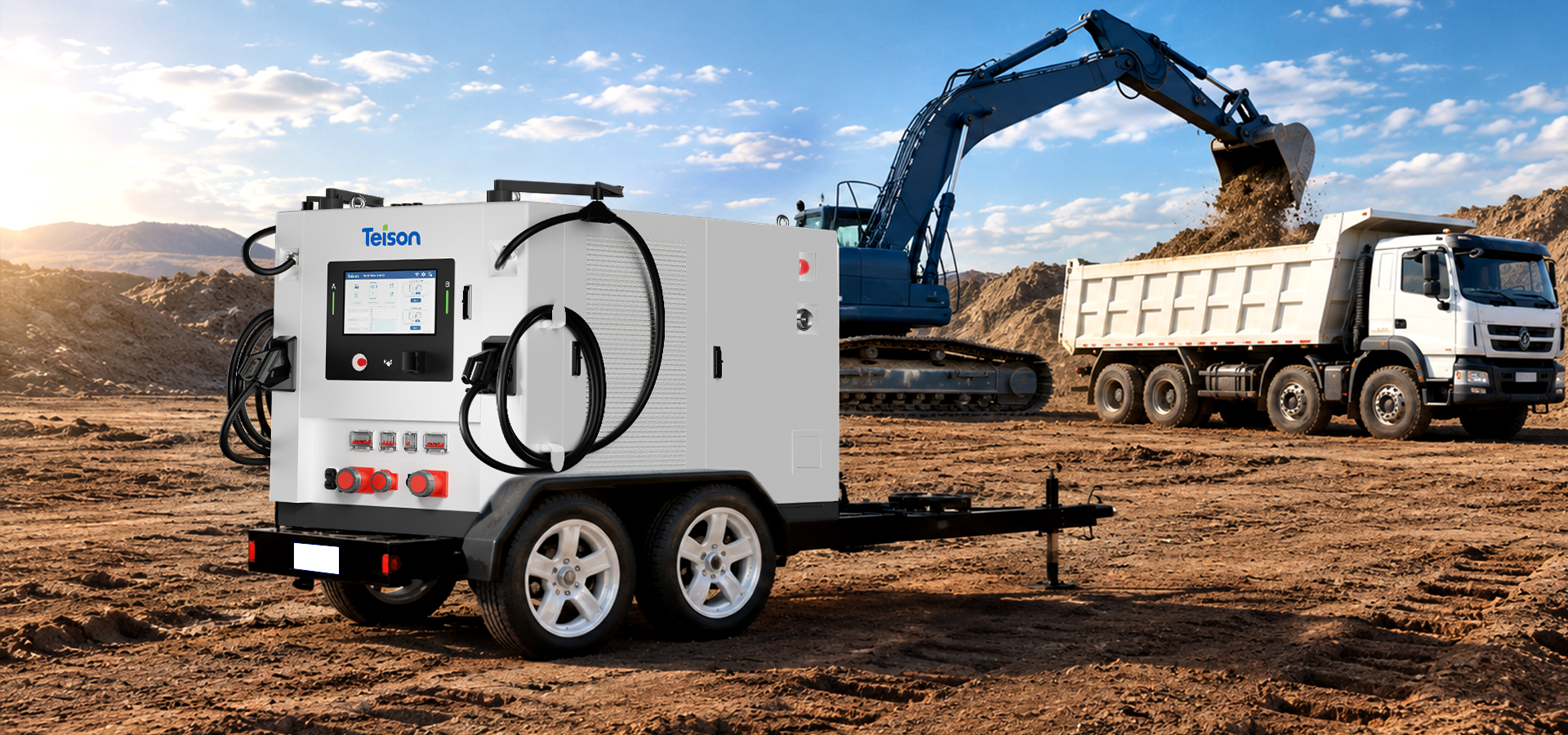

  • 180kW261kWh 详情轮播图

261kWh Liquid Cooling Energy Storage Cabinet, Commercial and Industrial ESS

The 261kWh Liquid Cooling ESS Cabinet is a high-performance energy storage solution designed for industrial and commercial applications. Featuring an integrated Energy Management System (EMS), it enables intelligent energy monitoring and optimization for enhanced efficiency

✅ Advanced Liquid Cooling Technology – Ensures stable operation and extended system lifespan

✅ High-Cycle LiFePO4 Batteries – Delivers over 6,000 cycles for long-term reliability

✅ Smart Management – Cloud telemetry intelligent control and management, enabling remote monitoring and remote contro

✅ Scalable & Modular Design Adapts to diverse energy storage needs with flexible expansion options

✅ Applicable in multiple scenarios – Supports on-grid and off-grid operation, suitable for a variety of application scenarios

✅ Robust Safety & Durability Built for demanding environments with superior thermal management

✅ Space Optimization – Convenient layout, outdoor energy storage cabinet occupies a smaller area

✅  Easy maintenance – Easy operation and maintenance, modular management, easy maintenance and repair

Parameter

Technical Specifications
Product Name Teison DC ESS 180 kW/261 kWh Mobile
Electrical Properties
AC Input AC Input Voltage Range 3-phase 400VAC±10%, 50/60 Hz，3P+N+PE
AC Rated Input Current 3Ф125 A
AC Max Input Power 86 kW
AC Input Socket CEE 125 A 5P
Power Factor ≥0.99
Replenishment Efficiency ≥97%
DC Input DC Max Input Power 130 kW
DC Input Socket CCS2 200 A
AC Output AC Output Voltage 230/400VAC, 50/60 Hz
AC Max Output Power 125 kW
AC Output Socket CEE 125 A 5P + CEE 32 A 5P + TYPE E 16 A
DC Output DC Output Voltage Range 150-1000VDC
DC Max Output Current (system) 400 A
DC Output Current (connector) 350 A(200 A, 250 A, 300 A, 400 A optional)
DC Max Output Power 180 kW
Number of Outputs 2 (Any two combinations of CCS2, CCS1, GB/T, CHAdeMO, NACS）
Connector Type CCS2, CCS1, GB/T, CHAdeMO, NACS
Voltage Accuracy ±0.5%
Current Accuracy ±1%
Energy-Storage
System		 Battery Capacity 261 kWh
Usable Energy (SAT) 248 kWh(95%DOD）
Battery Nominal Voltage 832 V DC
Battery Voltage Range 728 V~936 V DC
Battery Material LiFePO4
Rated Recharge/Discharge Rate 0.5C
Max Recharge Power 130 kW
Max Discharge Power 130 kW
Battery Cycle Life (25 °C) ≥6000 (80% DOD)
User Interface
Display 21.5-inch Touch Screen
Meter CE Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J, Support upgrading to OCPP 2.0.1
Environmental
Operating Temperature Range -30 ℃ to +50 ℃ (Over 45 ℃ derating)
Storage Temperature Range -10 ℃ to +45 ℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000 m
Mechanical
Dimensions (W × D × H) 1400 mm x 2075 mm x 1540 mm
Weight ≤3000 kg
IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5 m
Cooling System Battery: Liquid Cooling, Charger: Air Cooling
Installation Method Floor Mounted
Protection
Protection Over voltage protection, Under voltage protection, Overload protection,
Leakage current protection, Over temperature protection, Grounding
protection, Surge protection, Short circuit protection, Fault self-check,
Insulation detection
Fire System Composite Detector, Aerosol Extinguishing Agent
(Explosion-proof exhaust system, Fire waterinterface Optional)
Certification And Standards
Certificate CE, CB
Standard IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3,
IEC62619, IEC63056, IEC 61000, IEC 62477-1
Optional Config
Network Connection 4G
User Authentication POS Machine
Charging cable length 6 m, 7 m, Other lengths upon request
Meter MID Meter
Parallel off grid connection Optional
Cable Management System Optional
