240kW/261kWh

LiFePO4 Battery(support 6000 cycles)

Battery 130.5kw Power Max Discharging

Fire System / Liquid Cooling

Peak Load Shifting Function

Three running mode optional

Solar Input Function optional

21.5-inch touch screen

OCPP1.6J Full Function /OCPP2.0.1

Cloud Commercial Management Platform

LAN/4G/WIFI

Multiple standard charging port combinations

Highly integrated

Cybersource/Paypal/Stripe/POS

Request A Quote

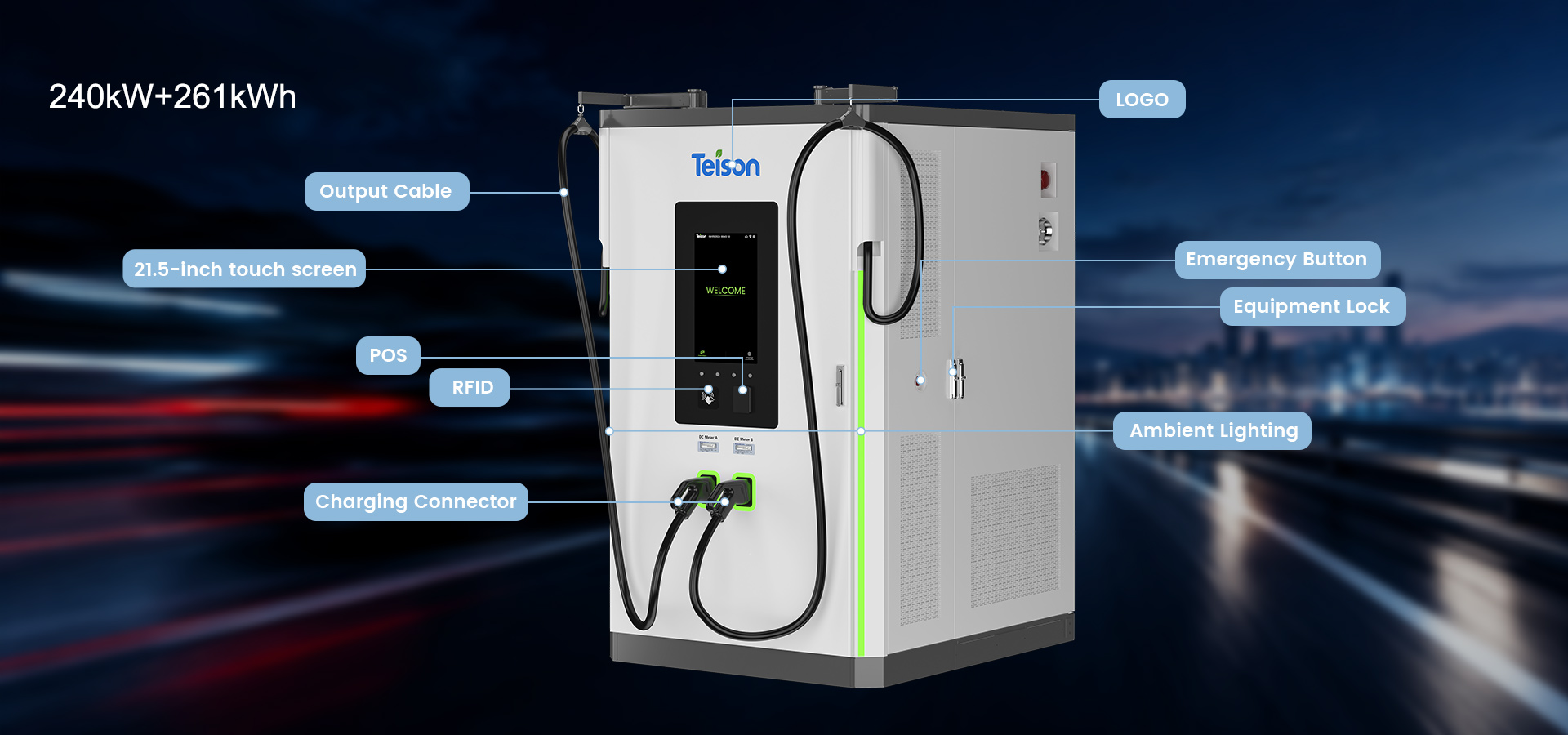

FEATURES/ADVANTAGES

  • 240kW+261kW-固定
  • 240kW261kWh 详情轮播图

261kWh Liquid Cooling Energy Storage Cabinet, Commercial and Industrial ESS

The 261kWh Liquid Cooling ESS Cabinet is a high-performance energy storage solution designed for industrial and commercial applications. Featuring an integrated Energy Management System (EMS), it enables intelligent energy monitoring and optimization for enhanced efficiency

✅ Advanced Liquid Cooling Technology – Ensures stable operation and extended system lifespan

✅ High-Cycle LiFePO4 Batteries – Delivers over 6,000 cycles for long-term reliability

✅ Smart Management – Cloud telemetry intelligent control and management, enabling remote monitoring and remote contro

✅ Scalable & Modular Design Adapts to diverse energy storage needs with flexible expansion options

✅ Applicable in multiple scenarios – Supports on-grid and off-grid operation, suitable for a variety of application scenarios

✅ Robust Safety & Durability Built for demanding environments with superior thermal management

✅ Space Optimization – Convenient layout, outdoor energy storage cabinet occupies a smaller area

✅  Easy maintenance – Easy operation and maintenance, modular management, easy maintenance and repair

Parameter

Technical Specifications

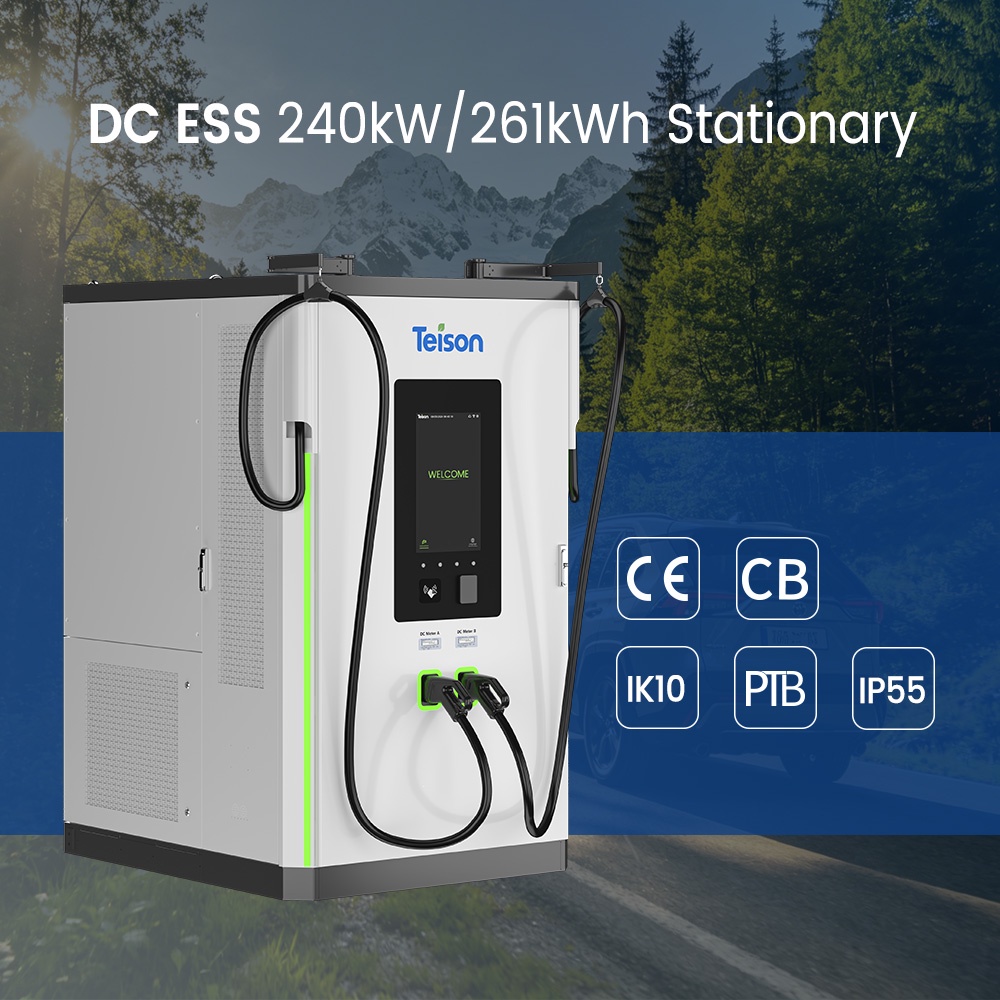

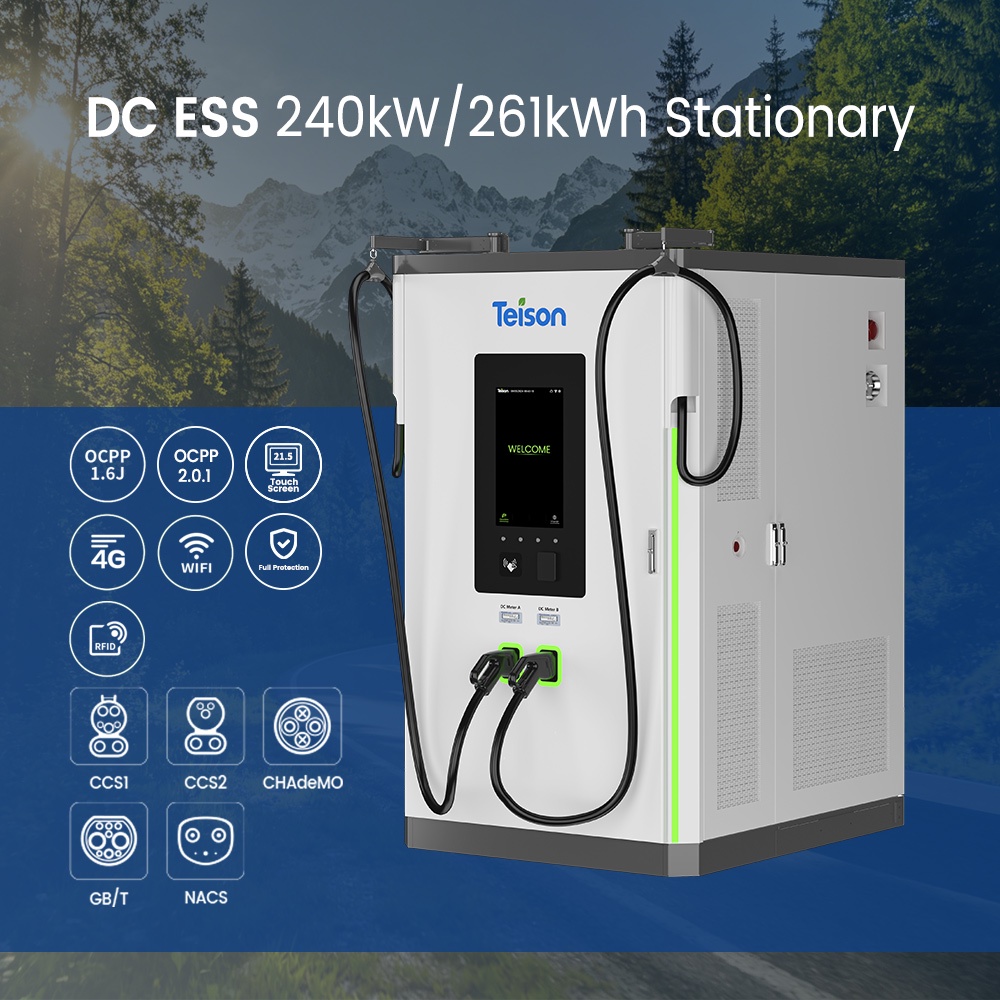

Product Name Teison DC ESS 240 kW/261 kWh Stationary
Electrical Properties
AC Input Input Voltage Range 3‑phase 400 VAC± 10 %, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ200 A
Max Input Power 125 kW
Power Factor ≥ 0.99
Recharge Efficiency ≥ 97 %
DC Output Output Voltage Range 150‑1000 V DC
Max Output Current (system) Single output: up to 400 A Dual‑output combined: up to 800 A
Output Current (connector) 200 A, 250 A, 300 A, 350 A, 400 A optional
Max Output Power 240 kW (The battery pack can support 2 hours when fully charged)
125 kW(When the battery state of charge is low)
Number of Outputs 2 (Any two combinations of CCS2, CCS1, GB/T, CHAdeMO, NACS）
Connector Type CCS2, CCS1, GB/T, CHAdeMO, NACS
Voltage Accuracy ± 0.5 %
Current Accuracy ± 1 %
Energy‑Storage
System		 Battery Capacity 261 kWh
Usable Energy 248 kWh(95%DOD）
Battery Nominal Voltage 832 V DC
Battery Voltage Range 728 V~936 V DC
Battery Material LiFePO4
Rated Recharge/Discharge Rate 0.5 C
Max Recharge Power 125 kW
Max Discharge Power 130.5 kW
Battery Cycle Life (25 °C) ≥ 6000 (80% DOD)
User Interface
Display 21.5‑inch touch screen
Meter CE‑compliant Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Mobile app
Supported Languages English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi‑Fi
Communication Protocol OCPP 1.6J, Support upgrading to OCPP 2.0.1
Environmental
Operating Temperature Range -30 ℃ to +50 ℃ (Over 45 ℃ derating)
Storage Temperature Range -10 ℃ to +45 ℃
Humidity < 95 % relative humidity, Non‑condensing
Altitude ≤ 2000 m
Mechanical
Dimensions (W × D × H) 1360 mm × 1600 mm × 2350 mm
Weight ≤ 3000 kg
IP & IK Rating IP55 & IK10 (HMI IK08)
Charging Cable Length 5 m
Cooling System Battery: Liquid Cooling, Charger: Air Cooling
Installation Method Floor Mounted
Cable Management System Standard Configuration
Protection
Protection Over voltage protection, Under voltage protection, Overload protection,
Leakage current protection, Over temperature protection, Grounding
protection, Surge protection, Short circuit protection, Fault self‑check,
Insulation detection.
Fire System Composite Detector, Aerosol Extinguishing Agent
(Explosion‑proof board,Fire waterinterface Optional)
Certification And Standards
Certificate CE, CB
Standard IEC 61851‑1, IEC 61851‑21‑2, IEC 61851‑23, IEC 61851‑24, IEC 62196‑1,
IEC 62196‑3,IEC62619, IEC63056, IEC 61000, IEC 62477‑1
Optional Config
Network Connection 4G
User Authentication POS terminal
Charging cable length 6 m, 7 m, Other lengths upon request
Meter MID Meter
Photovoltaic systems interface Optional
Parallel off grid connection Optional
