DC fast charging with battery storage system

60kW/64.5kWh；240kW/261kWh

LiFePO4 Battery(support 6000 cycles)

Battery 30kw Power Max Discharging

Fire System / Air Conditioning

Peak Load Shifting Function

Three running mode optional

Solar Input Function optional

10.1'inch Android LCD Touch Screen; 43'Inch Advertisement Screen

OCPP1.6J Full Function

Cloud Commercial Management Platform

LAN/4G/WIFI

Multiple standard charging port combinations

Highly integrated

Cybersource/Paypal/Stripe/POS

Request A Quote



FEATURES/ADVANTAGES

  • 详情图
  • 详情滚动1.jpg
  • 详情海报2.jpg
  • 详情海报3.jpg

FEATURES

Our advanced battery-integrated EV charger delivers an efficient, reliable, and cost-effective charging solution for homes and businesses. By combining fast charging with intelligent energy storage, it:

✅ Boosts Charging Efficiency – Reduces energy waste and optimizes power delivery.

✅ Enhances Grid Stability – Alleviates peak demand stress and supports renewable energy integration.

✅ Provides Emergency Backup Power – Keeps you powered during outages.

✅ Lowers Costs – Reduces grid infrastructure investments and operational expenses.

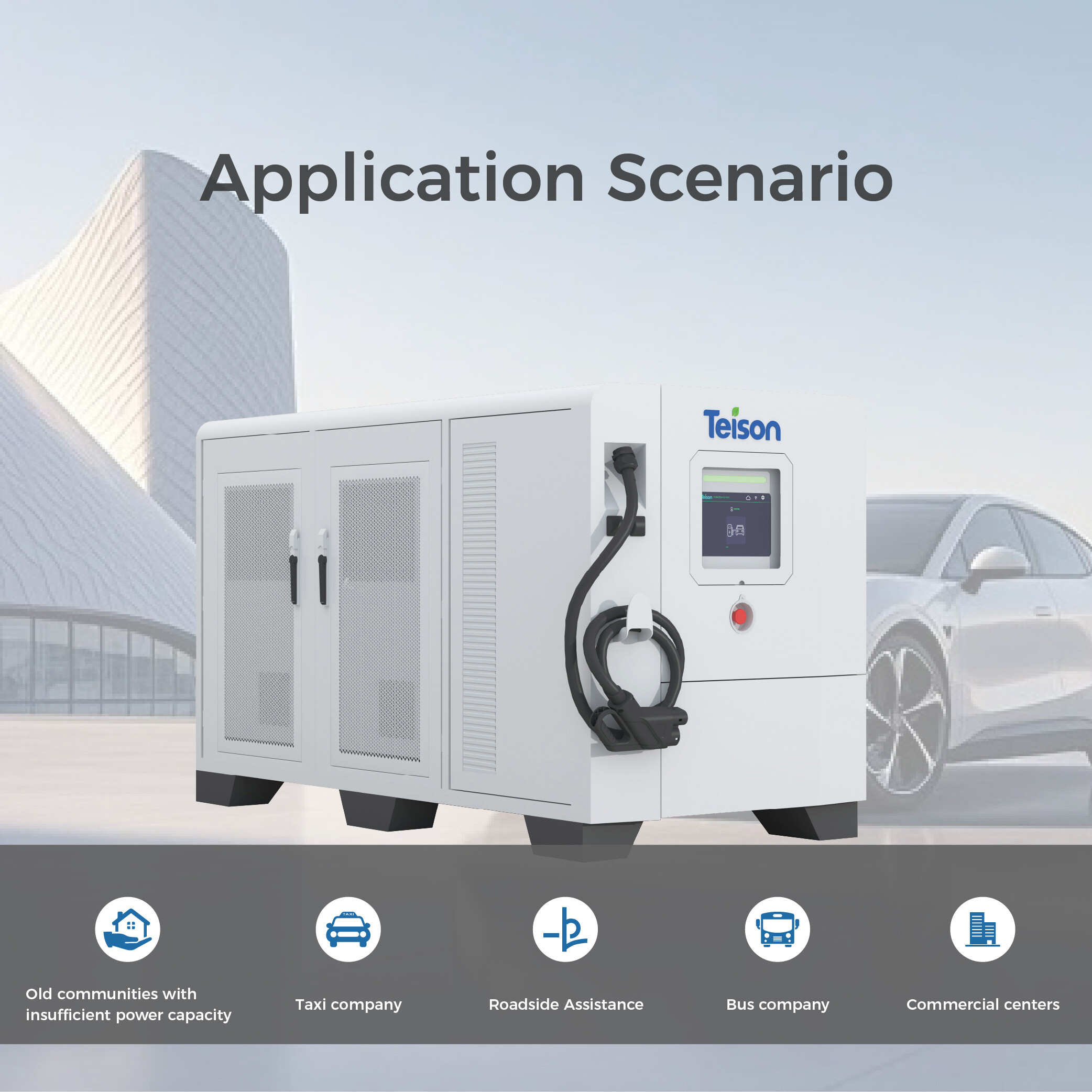

APPLICATIONS

Roadside Rescue

Public corridor charging along the highways

Busy urban areas

Commercial fleet operators

EV Infrastructure operators and EVSE providers

Service centers

Parameter

Technical Specifications

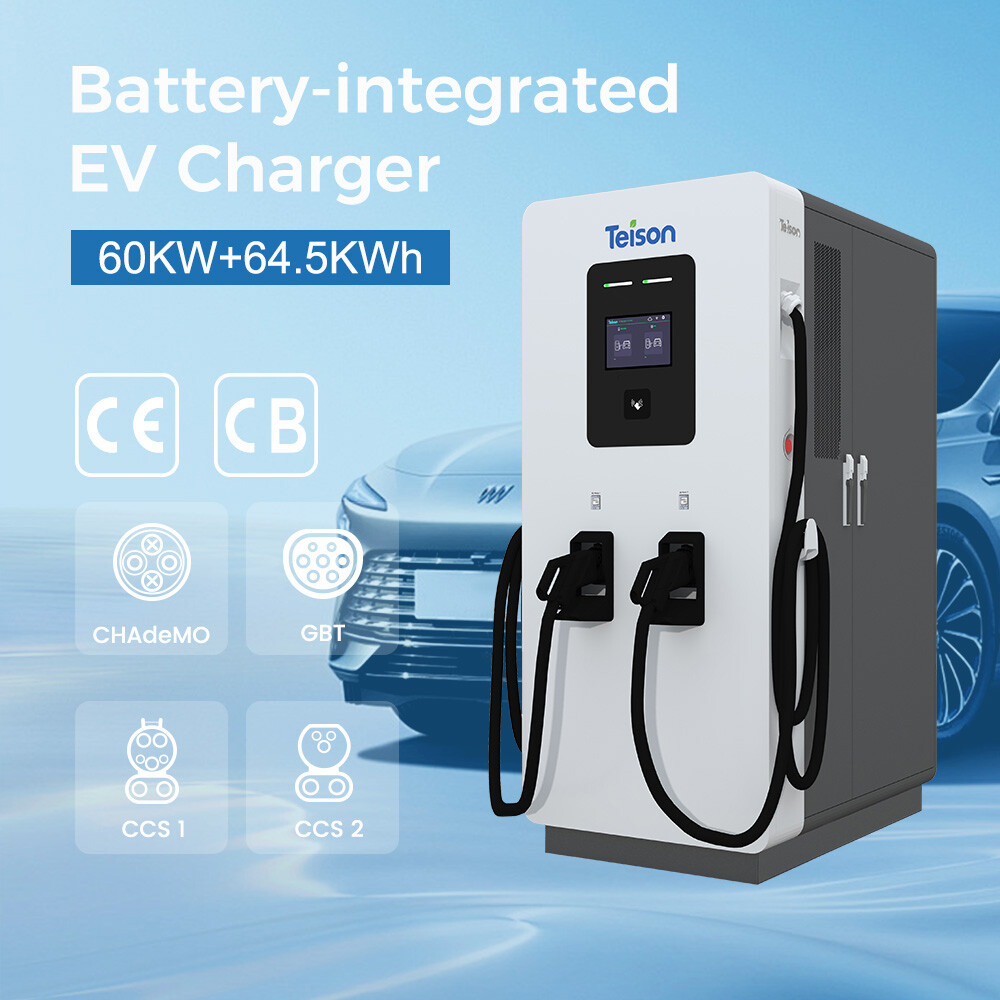

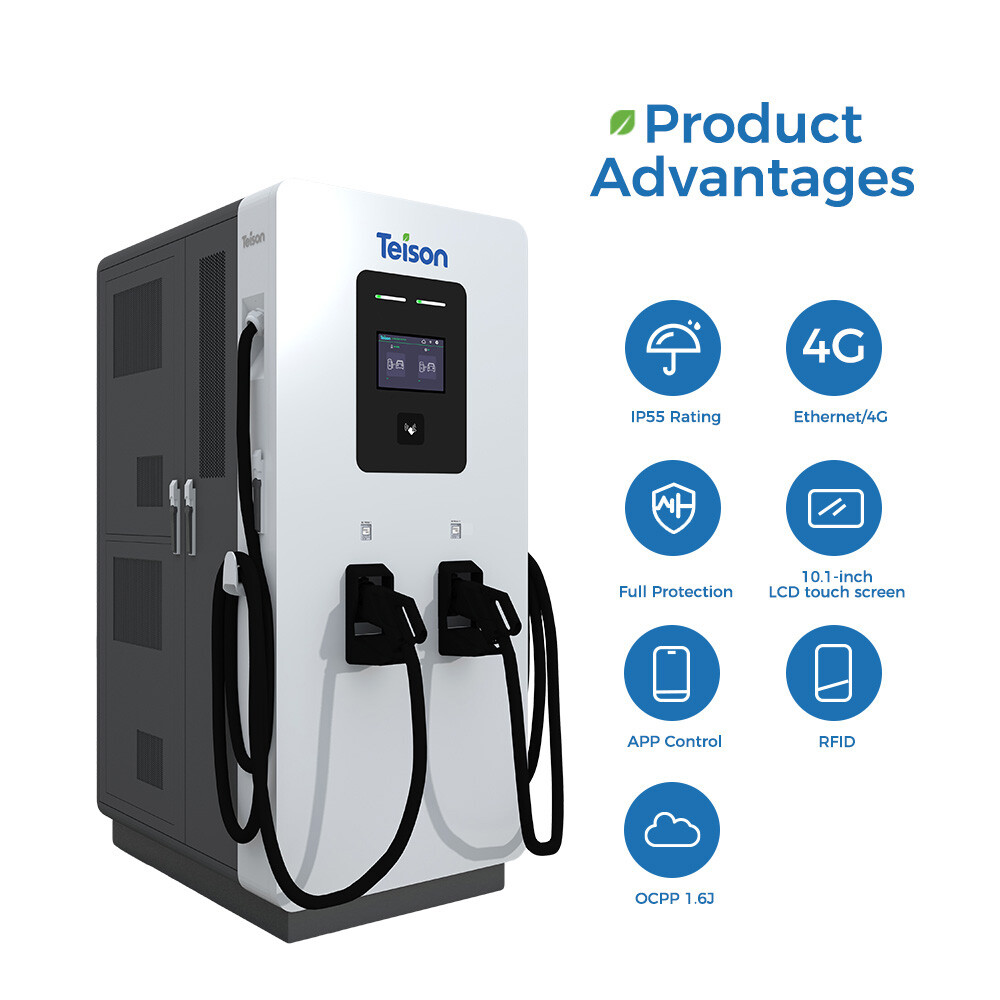

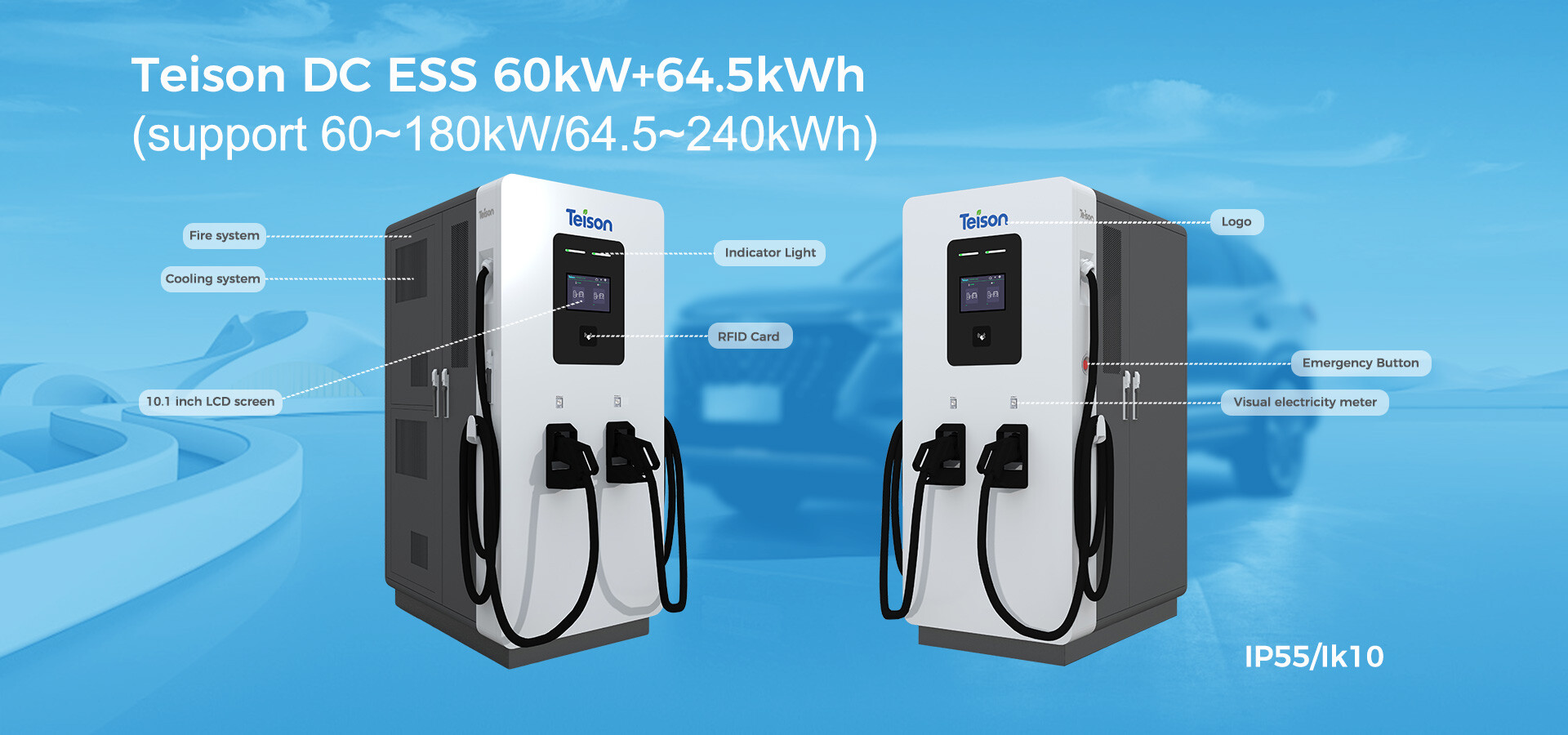

Product Model DC ESS 60kW+64.5kWh
Electrical Properties
AC Input Input Voltage Range 3-phase 400 VAC±10%, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ96A
Power Factor ≥0.99
DC Output Output Voltage Range 200V~1000V
Max Output Current (system) 200A
Output Current (connector) 200A (150A optional)
Max.Output Power 60kW
Number Of Outputs 2 (Any two combinations of CCS2, CCS1, GBT, CHAdeMO, NACS)
Connector Type CCS2, CCS1, GBT, CHAdeMO, NACS
Voltage Accuracy ±0.5%
Current Accuracy ±1%
Energy-Storage
System		 Battery Capacity 64.5kWh
Usable Energy (SAT) 61.3kWh (95%DOD)
Battery Nominal Voltage 614.4V
Battery Material LiFePO4
Max Recharge Power 30kW
Max Discharge Power 30kW
Battery Recharge Current 0.5C (50A)
Battery Discharge Current 0.5C (50A)
Battery Cycle Life (25°C) ≥6000 (80% DOD)
User Interface
Display 10.1" Touch Screen
Meter CE Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J, OCPP 2.0.1
Environmental
Operating Temperature Range -25℃-50℃(Over 45℃derating)
Storage Temperature Range -40-70℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000m
Mechanical
Dimensions（W*D*H) 900mm*1200mm*2050mm
Weight ≤1300kg

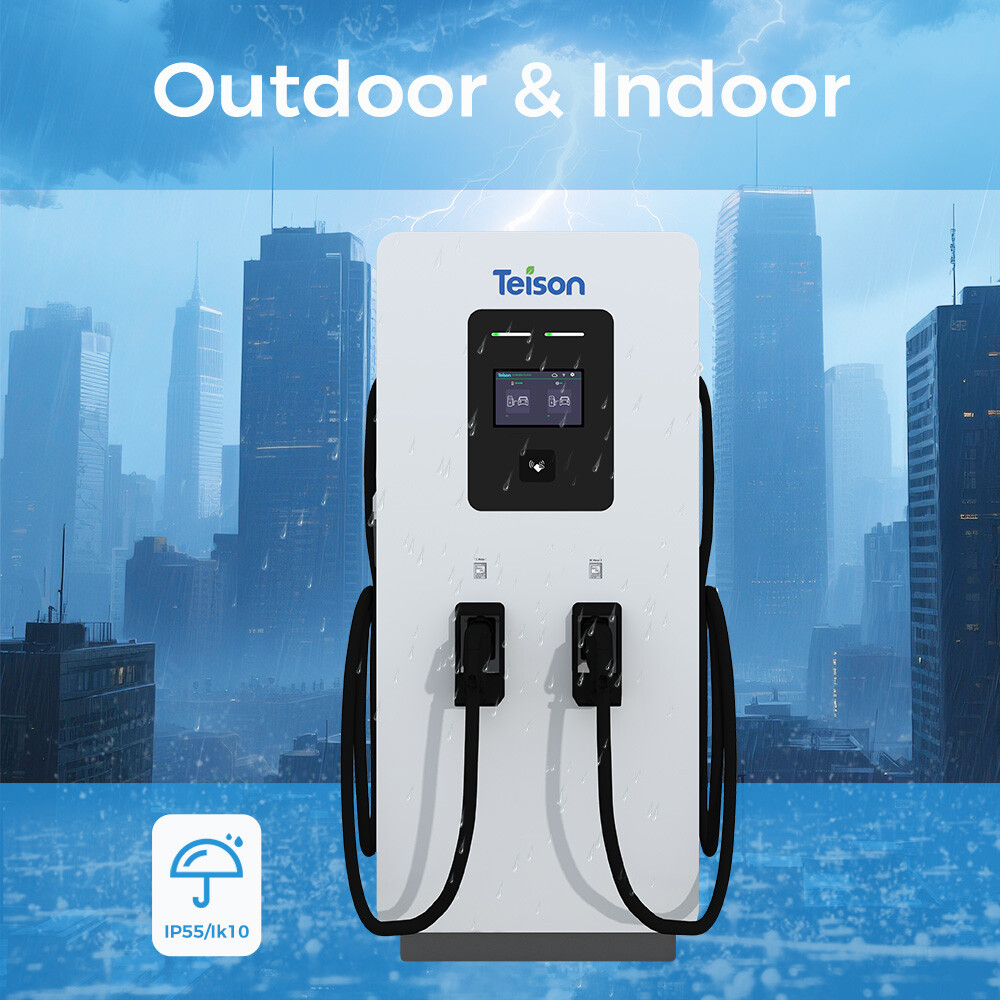

IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5m
Cooling System Air Cooling/Air Conditioning
Installation Method Floor Mounted
Protection
Protection Over voltage protection, Under voltage protection, Overload protection, Leakage current
protection, Over temperature protection, Grounding protection, Surge protection, Short
circuit protection, Fault self-check, Insulation detection, Soaking protection, Smoke alarm.
Fire System SComposite Detector + Aerosol Extinguishing Agent
Certification And Standards
Certificate CE, CB, MSDS.UN38.3
Standard IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3
Optional Config
Network Connection 4G
User Authentication POS Machine
Charging cable length 6m, 7m, Other lengths upon request
Cable Management Optional
Advertising Screen Optional
Meter MID Meter
Technical Specifications

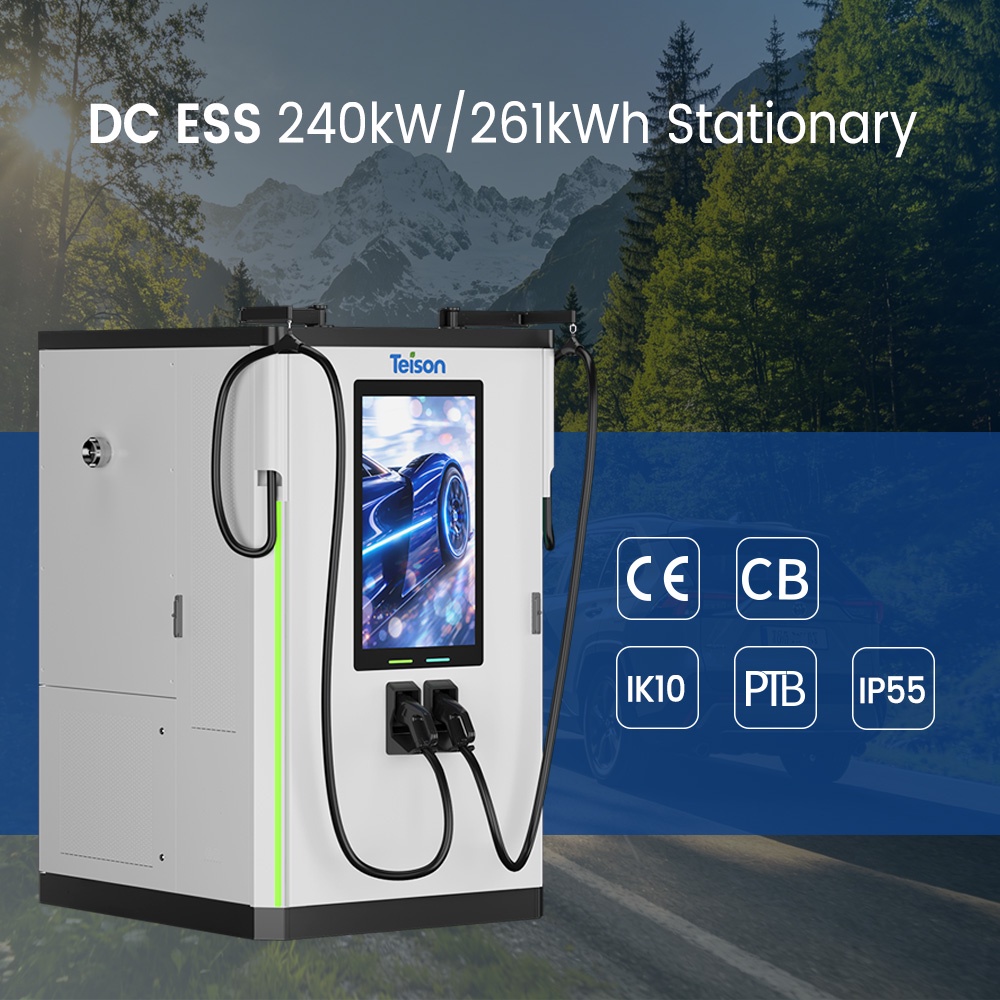

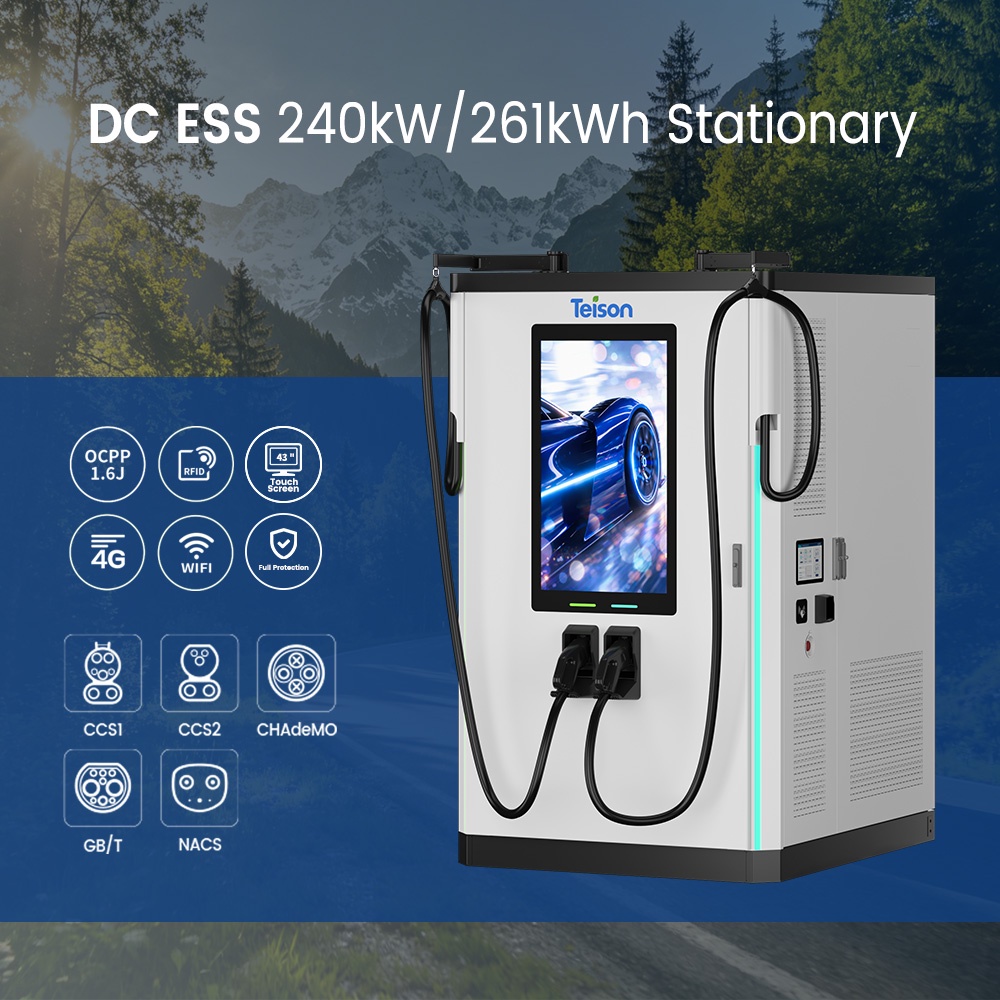

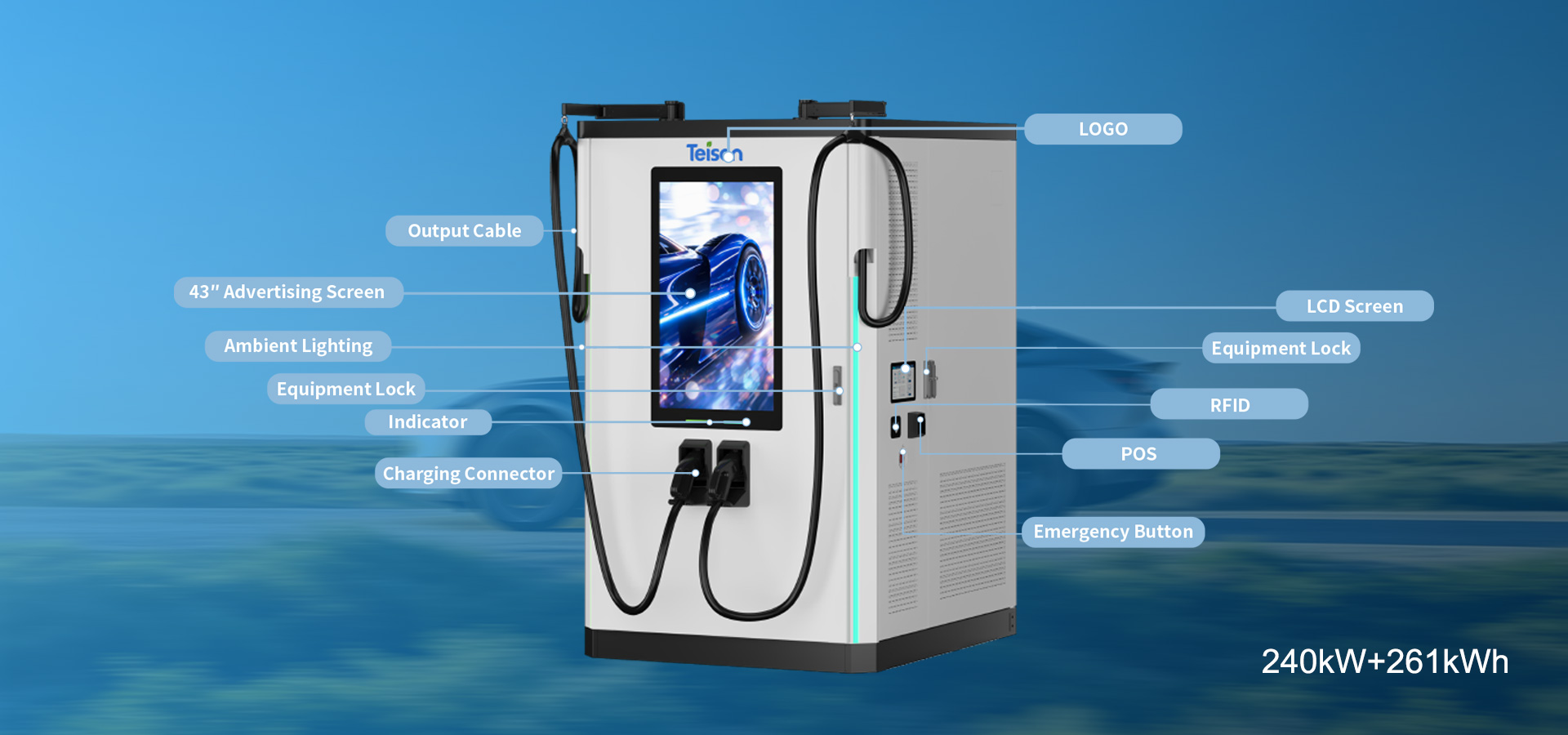

Product Model DC ESS 240kW+261kWh
Electrical Properties
AC Input Input Voltage Range 3-phase 400VAC±10%, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ200A
Power Factor ≥0.99
DC Output Output Voltage Range 150-1000V DC
Max Output Current(system) 400A
Output Current(connector) 200A, 250A, 300A, 350A, 400A optional
Max Output Power 240kW(The battery pack can support 2 hours when fully charged)
125kW(When the battery pack is short of power)
Number Of Outputs 2 (Any two combinations of CCS2, CCS1, GBT, CHAdeMO, NACS)
Connector Type CCS2, CCS1, GBT, CHAdeMO, NACS
Voltage Accuracy ±0.5%
Current Accuracy ±1%
Energy-Storage
System		 Battery Capacity 261kWh
Usable Energy(SAT) 248kWh（95%DOD）
Battery Nominal Voltage 832V DC
Battery Voltage Range 728V~936V DC
Battery Material LiFePO4
Rated Recharge/Discharge Rate 0.5C
Max Recharge Power 125kW
Max Discharge Power 130.5kW
Battery Cycle Life(25°C) ≥6000 (80% DOD)
User Interface
Display 10.1" Touch Screen
Meter CE Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J, OCPP 2.0.1
Environmental
Operating Temperature Range -30℃-50℃(Over 45℃derating)
Storage Temperature Range -10-45℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000m
Dimensions（W*D*H) 1360mm*1600mm*2350mm
Weight ≤3000kg
IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5m
Cooling System Battery: Liquid Cooling, Charger: Air Cooling
Installation Method Floor Mounted
Cable Management System Standard Configuration
Protection
Protection Over voltage protection, Under voltage protection, Overload protection,
Leakage current protection, Over temperature protection, Grounding protection,
Surge protection, Short circuit protection, Fault self-check, Insulation detection.
Fire System SComposite Detector, Aerosol Extinguishing Agent,Explosion proof board,
Fire water interface
Certification And Standards
Certificate CE, CB
Standard IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3,
IEC62619, IEC63056, IEC 60730-1, IEC 62477-1
Optional Config
Network Connection 4G
User Authentication POS Machine
Charging Cable Length 6m, 7m, Other lengths upon request
Advertising Screen Optional
Meter MID Meter
Photovoltaic Systems Interface Optional
Parallel off Grid Connection Optional
Technical Specifications

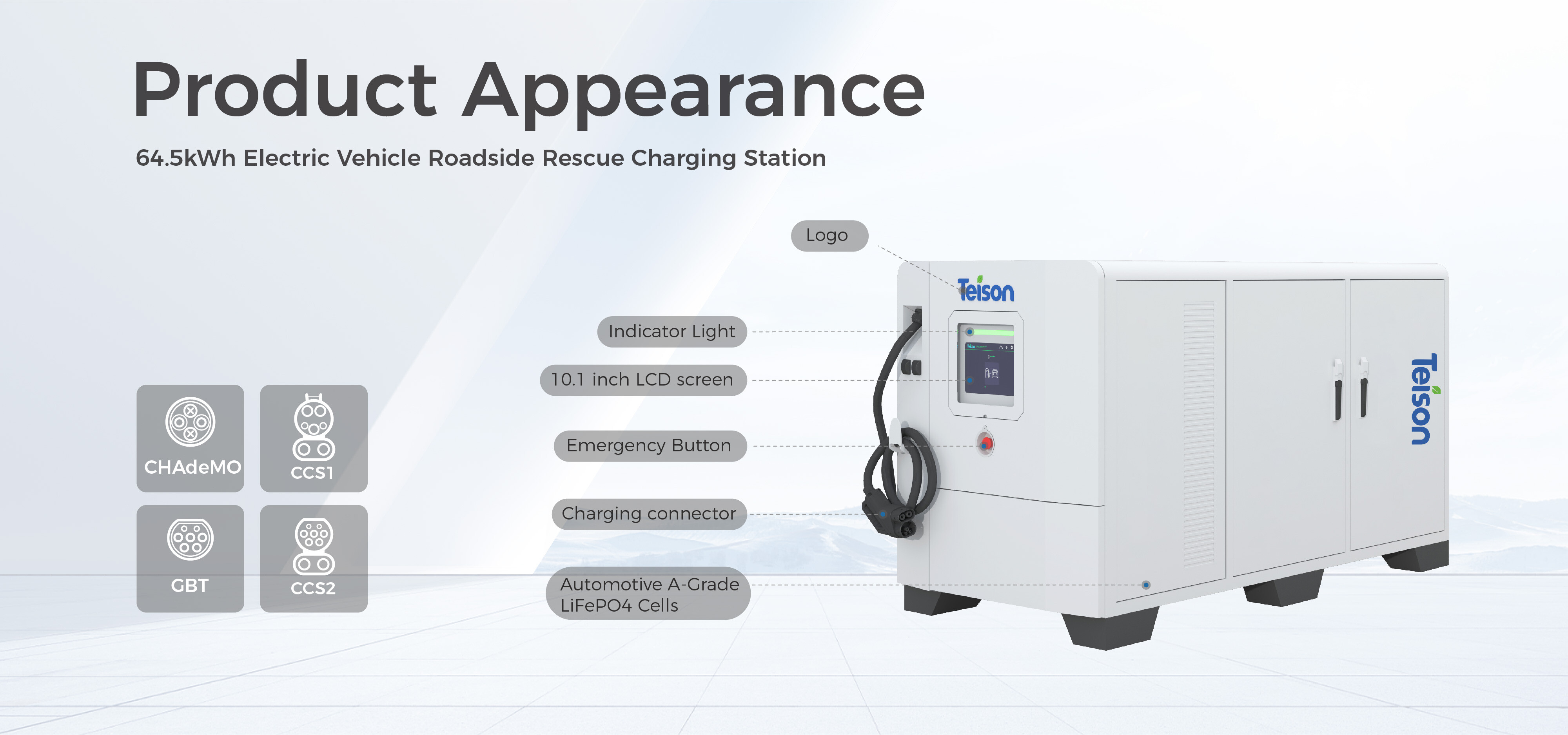

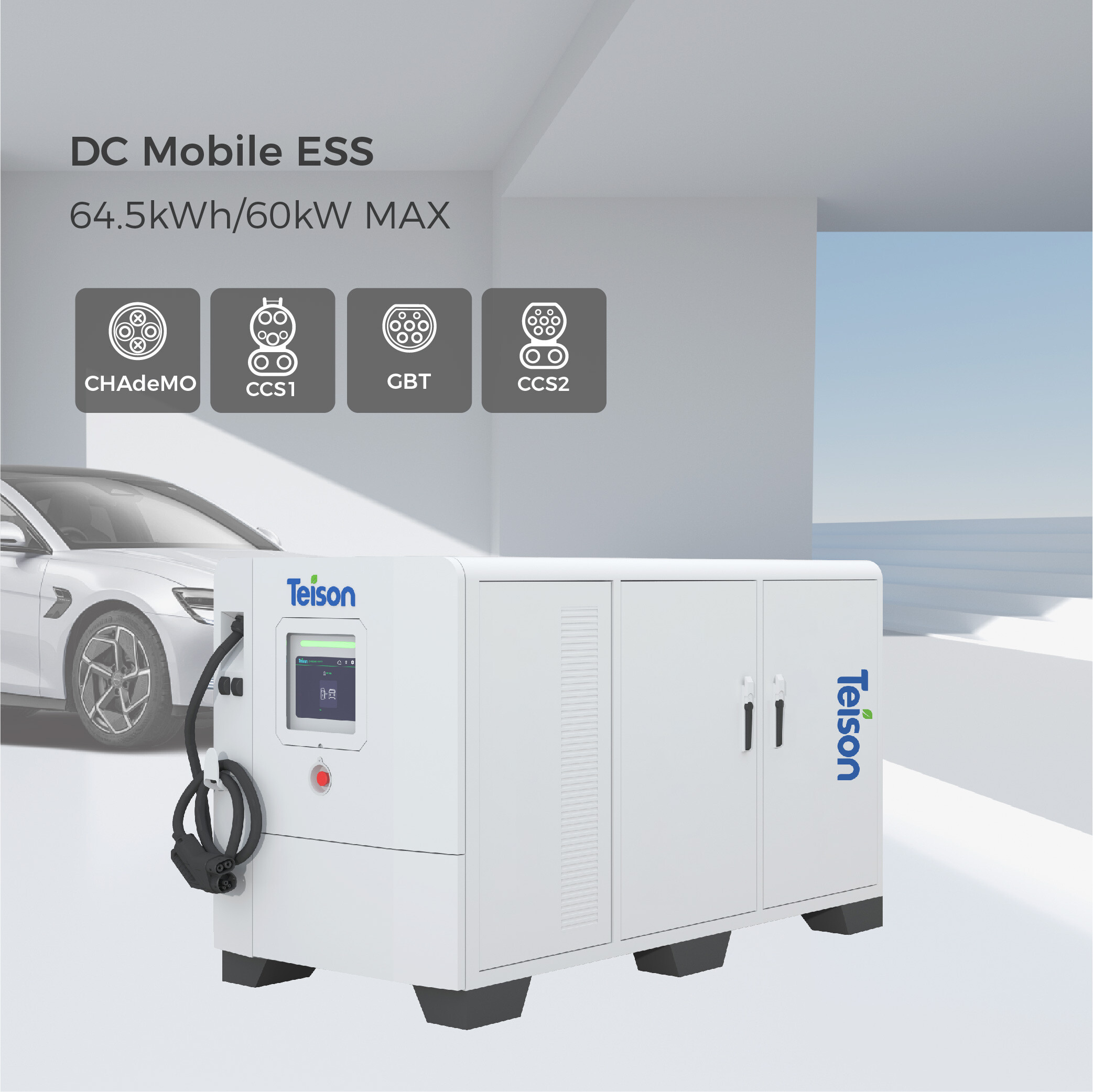

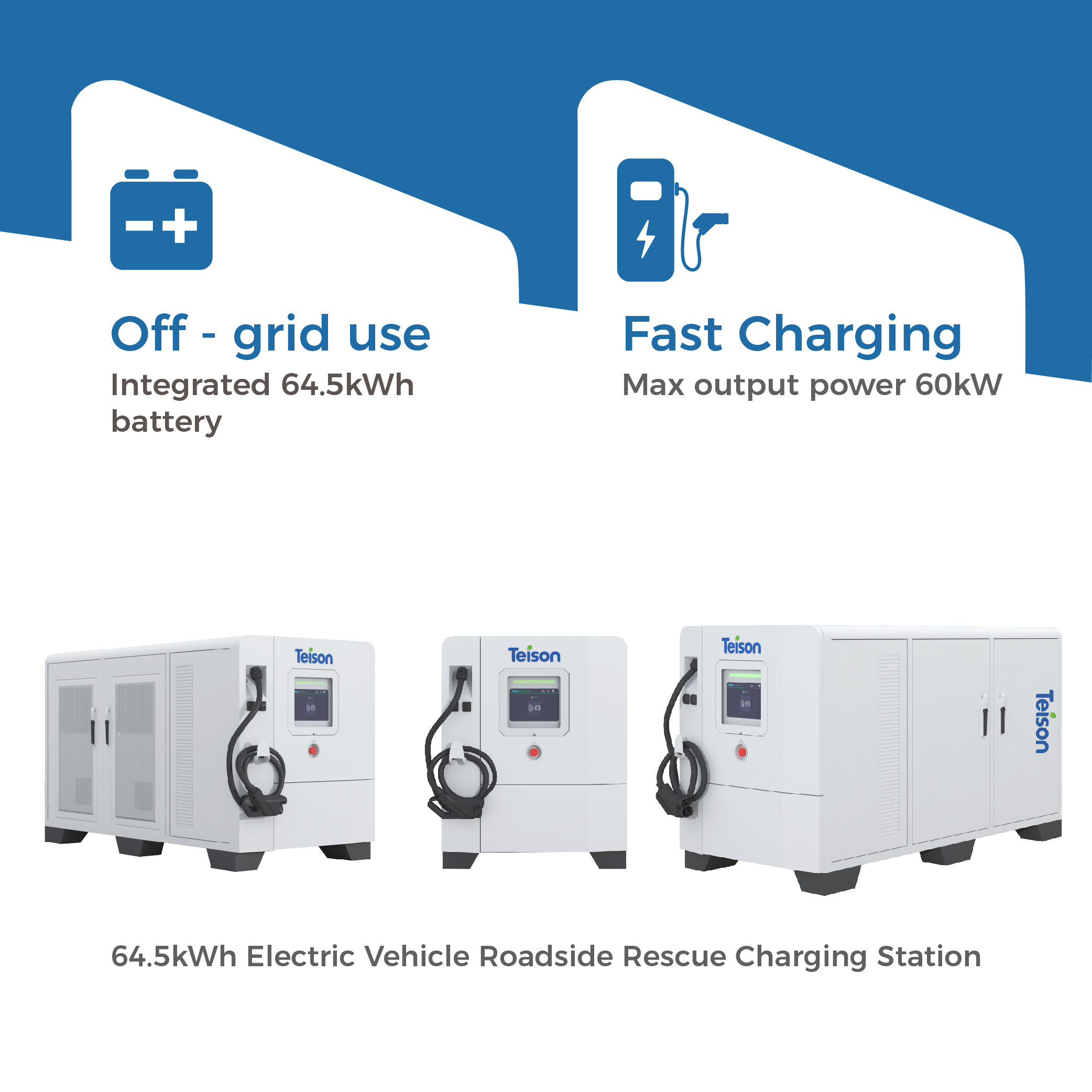

Product Model DC ESS Mobile
Electrical Properties
Input Input Voltage Range 3-phase 400VAC±10%, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ96A
Power Factor ≥0.99
Output
(EV Charging)		 DC Output Voltage Range 200V~1000V
DC Max Output Current (system) 200A
DC Output Current (connector) 200A (150Aoptional)
DC Max.Output Power 60kW
Number Of Outputs 1 (Any one of CCS2, CCS1, GBT, CHAdeMO, NACS)
Connector Type CCS2, CCS1, GBT, CHAdeMO, NACS
DC Voltage Accuracy ±0.5%
DC Current Accuracy ±1%
Output
(AC Discharging)		 AC Output Rating Voltage 380V/400V/415V (220V/230V/240V)
AC Output Connection 3P+N+PE
AC Max Output Power 30kW
Frequency 50/60 Hz
Energy-Storage
System		 Battery Capacity 64.5kWh
Usable Energy (SAT) 61.3kWh (95%DOD)
Battery Nominal Voltage 614.4V
Battery Material LiFePO4
Max Recharge Power 30kW
Max Discharge Power 30kW
Battery Recharge Current 0.5C (50A)
Battery Discharge Current 0.5C (50A)
Battery Cycle Life (25°C) ≥6000 (80% DOD)
User Interface
Display 10.1" Touch Screen
Meter CE Meter
Push Buttons Emergency Button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J, OCPP 2.0.1
Environmental
Operating Temperature Range -25℃-50℃(Over 45℃derating)
Storage Temperature Range -40-70℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000m
Mechanical
Dimensions（W*D*H) 1750mm*950mm*1200mm
Weight ≤1100kg
IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5m
Cooling System Air Cooling/Air Conditioning
Installation Method Floor Mounted
Protection
Protection Over voltage protection, Under voltage protection, Overload protection,
Leakage current protection, Over temperature protection, Grounding protection,
Surge protection, Short circuit protection, Fault self-check, Insulation detection.
Fire System SComposite Detector + Aerosol Extinguishing Agent
Certification And Standards
Certificate CE, CB, MSDS.UN38.3
Standard IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3
Optional Config
Network Connection 4G
User Authentication POS Machine
Charging cable length 6m, 7m, Other lengths upon request
Meter MID Meter
