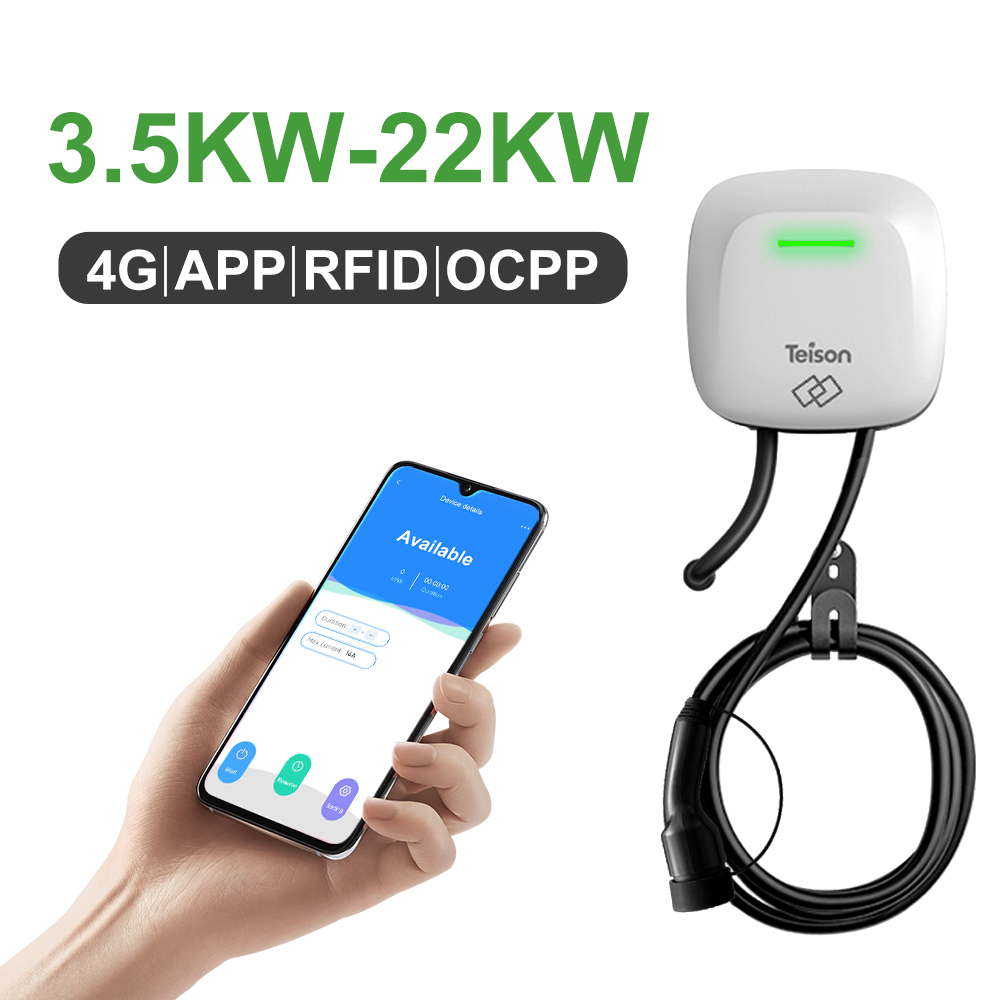

AC Smart mini EV Wallbox with plug

Mobile App Control(Bluetooth, Wi-Fi, 4G)

RFID Card (with Electricity Usage Metering)

OCPP1.6J

Single Load Balancing (via CT Clamp or Specific Model 485 Electricity Meter)

Solar Energy Excess Charging Function

Local Whitelist (Off grid RFID Card Swiping)

Full Protection

Request A Quote

‹

›

‹

›

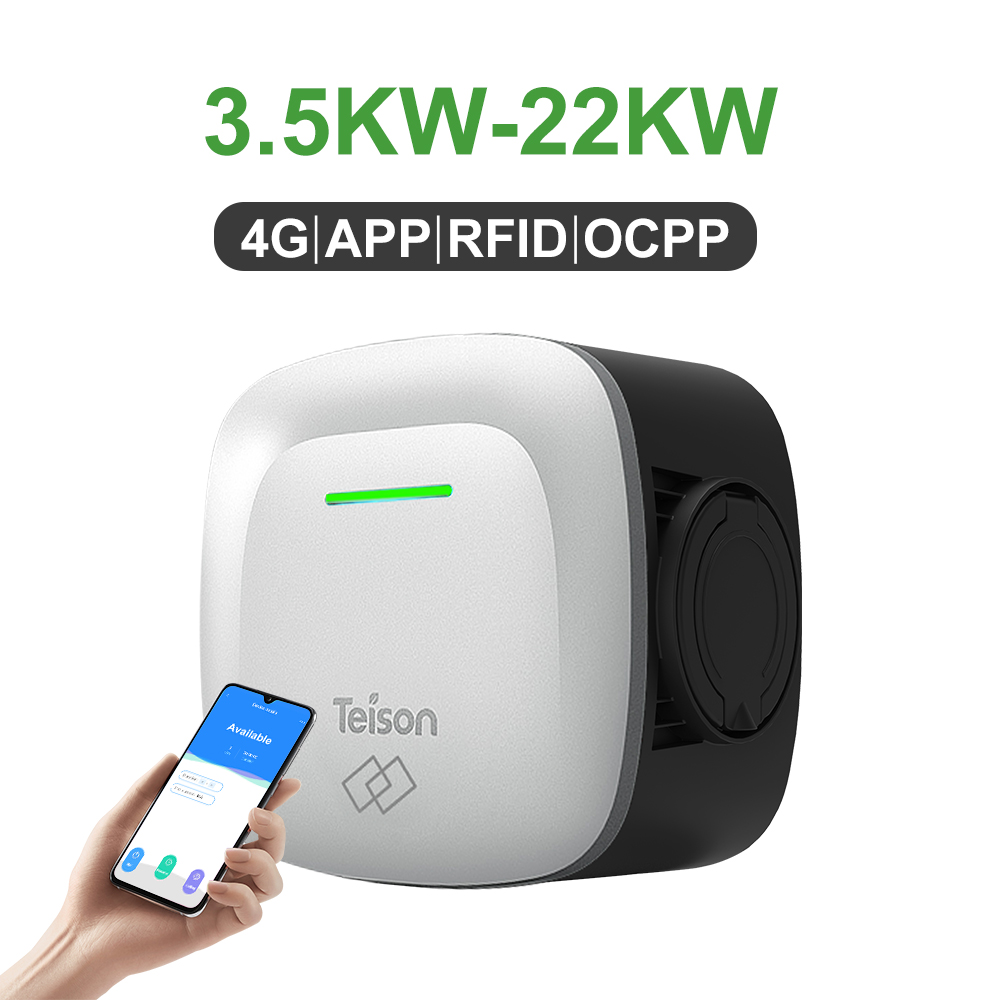

AC Smart mini EV Wallbox with Socket

1-Phase from 3.5kW to 7kW

3-Phase from 11kW to 22kW

Dial Function (Current Limitation)

Plug-and-Charge without Smart Version

Ethernet Interface

OCPP1.6J

Full Protection

Request A Quote

FEATURES/ADVANTAGES

A MODE 3 (IEC61851-1) SMART EV CHARGER FOR RESIDENTIAL USE
Teison EV charger has an IP65 patented design case for outdoor and indoor use, and smart mini but powerful and easy to operate .
The type 1/2 plug socket makes highly flexible and compatible with all electric vehicles.

Control your smart wall box through MyTeison App by Bluetooth, WIFI and 4G:

Developed based on OCPP 1.6 J-SON

Automatic identification

Max charging Current adjustable

Remote reach out of every charging process

Charging records in Cloud

Scheduled charging to save on your electricity bill

OTA for new features

Parameter

Specification
Model TS-EVC07-003(S) TS-EVC11-003(S) TS-EVC22-003(S)
Electrical Properties
Voltage 230V AC±10% 380V AC ±10% 380V AC ±10%
Output  Current 32A 16A 32A
Frequency 50/60Hz 50/60Hz 50/60Hz
Output  Power 7kw 11kw 22kw
Residual current protection TYPE  A(30mA  AC)
Design
Charging Outlet 4.5M charging cable with typel/2 plug or type2 socket
Power incoming line 0.5M
Housing  Material PCVO for outdoor
Installation Method Wall-mount/Floor-stand
Communication  Protocol OCPP 1.6J-SON
Safety Standard  EN IEC61851-21-2:2021;EN IEC61000-6-1:2019;EN IEC61000-6-2:2019;
  EN IEC61000-6-3:2021;EN IEC61851-1:2019;EN IEC61000-6-4:2019;
  ETSI EN300 328 V2.2.2:2019;ETSI EN 300 330 V2.1.1:2017;
  ETSI EN301 489-1 V2.2.3:2019;ETSI EN301 489-3 V2.1.1:2019;
  ETSI EN301 489-17 V3.2.4:2020;EN IEC62311:2020;IEC61851-1:2017
Warranty 2 years
Environmental Performance
Protection Level IP65
Working Altitude ＜2000M
Application Site Indoor/Outdoor
Working  temperature -30℃-+50℃
Working  humidity 5%-95%.No condensation
Atmospheric pressure 80kPa-101kPa
Functionality
Network   Cateway Bluetooth and WIFI as default
Mobile  APP Scheduled charging、Start charging.Stop charging.
 Ues and Android supported)  Current adjustment (memorable),plug and play charging
 functions under Bluetooth  switch on APP、Charging status shown on APP
Added APP functions under WIFI/4G Charging records shown on mobile APP、view and update
 the PIN code.firmware updating function(OTA),multiple
 wallbox control
Packing Details
Product Size 228.5*228.5*100mm
Product  Weight 4.4KG 5.2KG 5.4KG
Optional canfig
Residual curent protection TYPE B(AC 30MA+DC 6MA)as optional
Network   Cateway 4G as optional
O-PEN  detection as optional
RFID as optional ( with 3 RFID cards)
Load  balance RS485 meter/CT-Clamp as optional

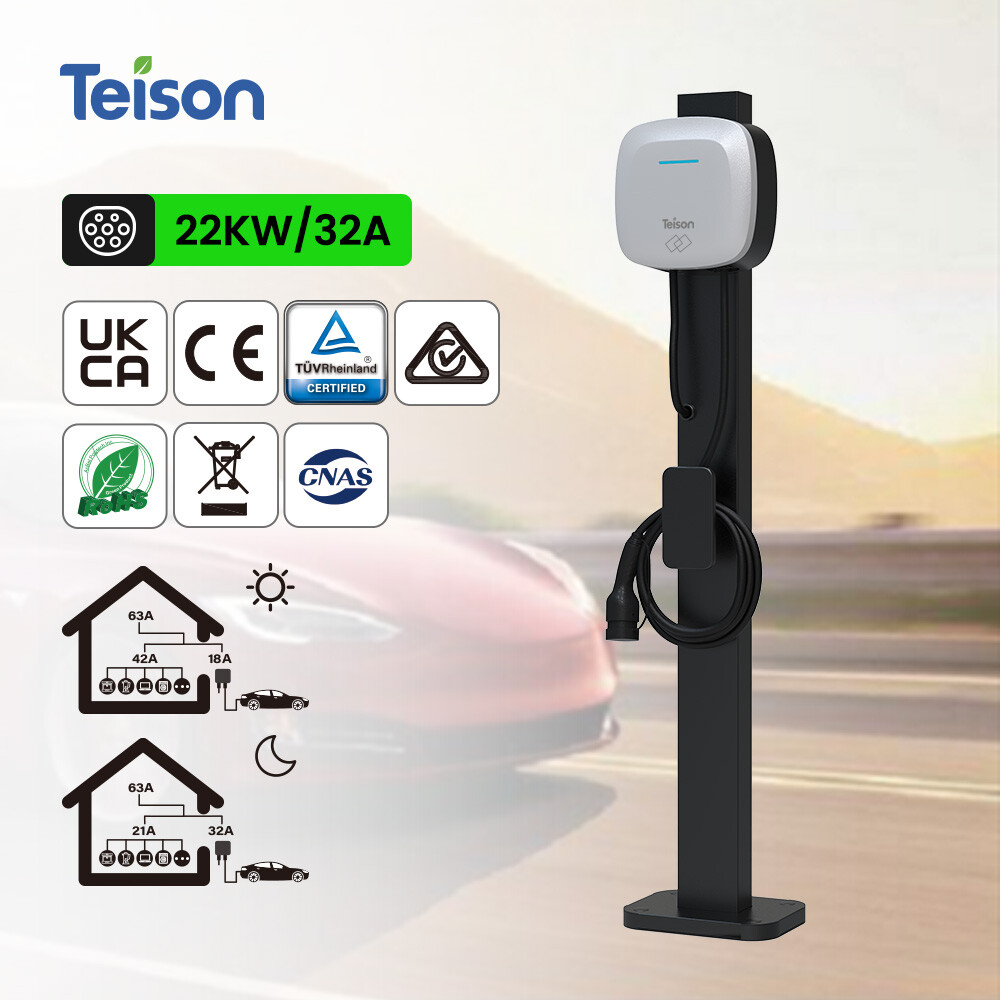

Installation method Stand-pile
