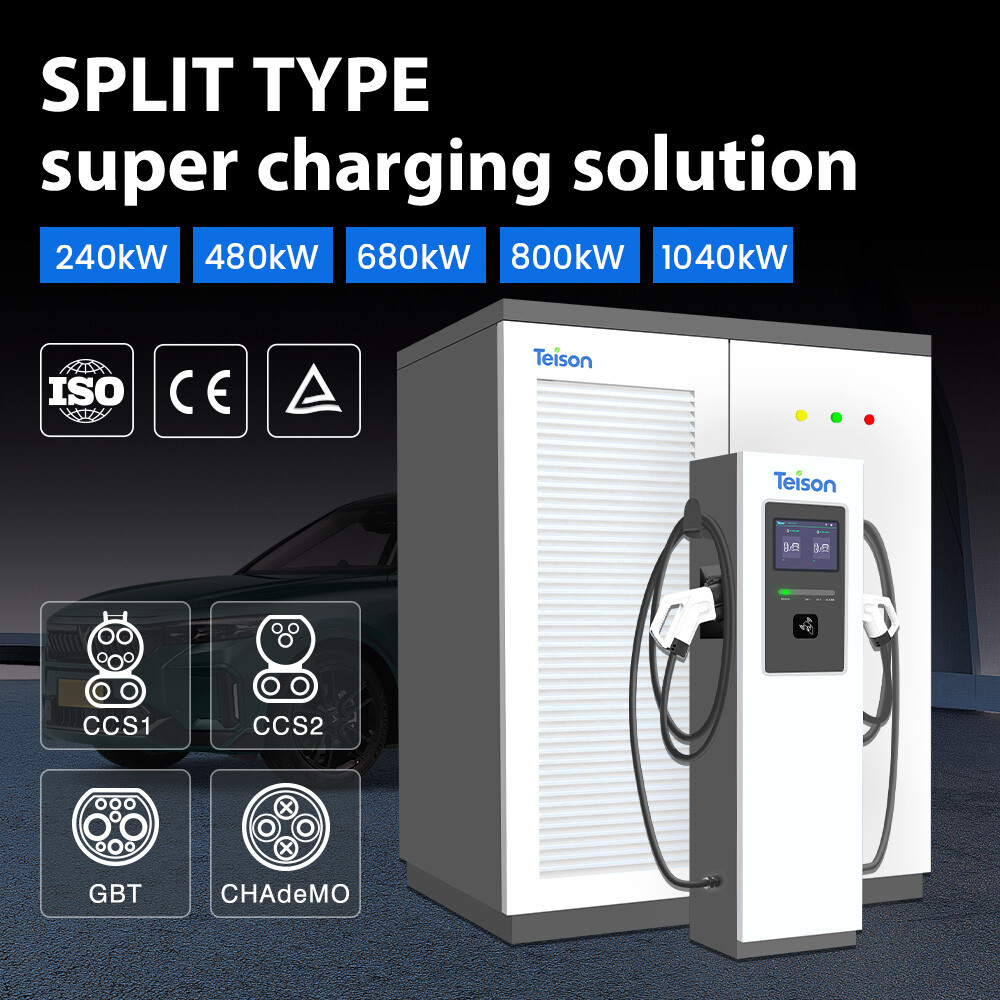

Split Type DC Fast Charger

Split Type DC Fast Charging Stations

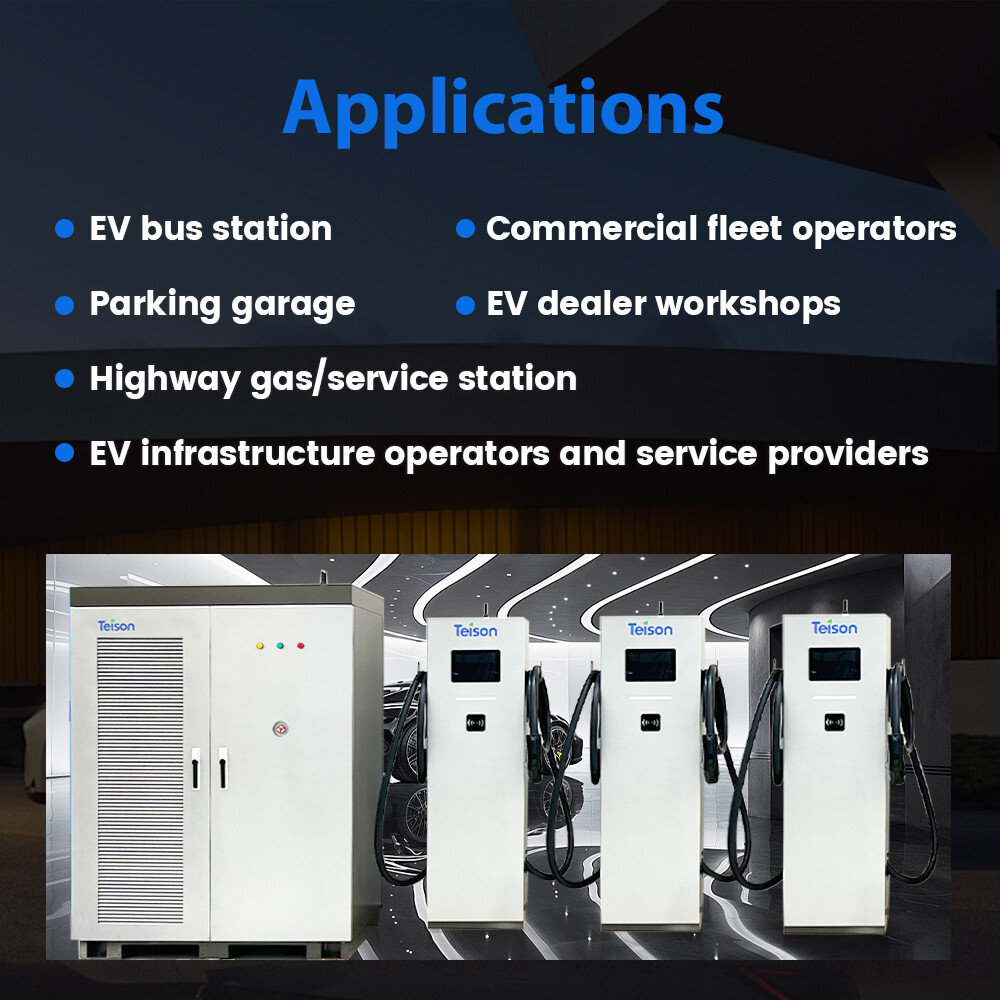

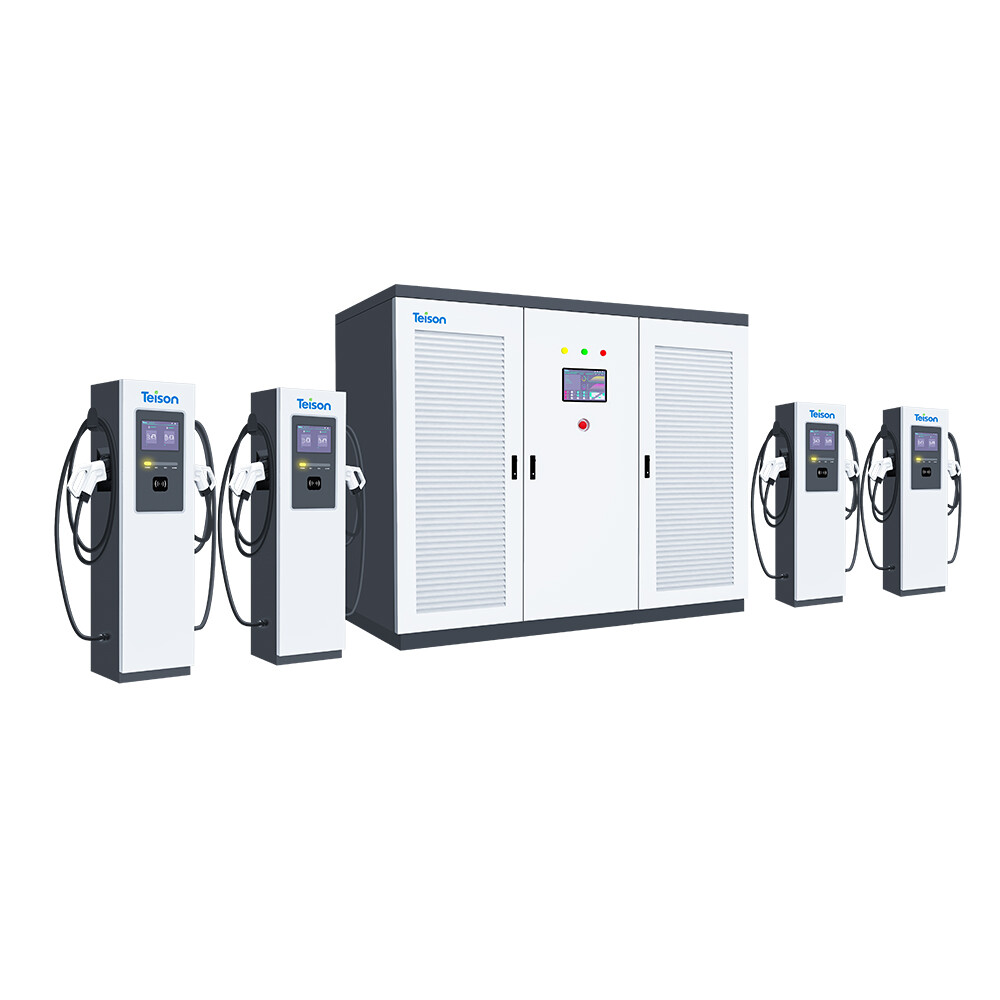

The split design of the 360kw/480kw DC charging station means it can charge two/four/six vehicles simultaneously, making it more efficient in high-traffic areas such as motorways or commercial car parks. Smart charging scheduling helps optimize charging times to reduce peak power demand, while real-time monitoring ensures charging stations are operating efficiently and effectively. It also reduces overall installation costs for car park operators, as they can service more vehicles with fewer charging stations.With the lowest investment, power up all 6 charging points from 480kw to 960kw by implementing one more power bank.

Request A Quote

Designed for the best public charging

1.Power to single EV

-480 kW dedicated to one dispenser

-240 kW shared by two dispensers

-120 kW shared by four EVs from two Dispensers

2.User access and payment

-OTA, RFID and mobile APP support

-OCPP integration -Local LCD and Web configuration

-Cloud connectivity & mobile view -Remote diagnosis and updates

3.Charging standards : CCS-CCS/CCS-GBT/ CCS+CHAdeMO/GBT+GBT

4.Mechanical Properties

Wide range of applications, wide range of constant power, support for platforms above 800V, complete functions, high compatibility, high cost performance.

High Safety

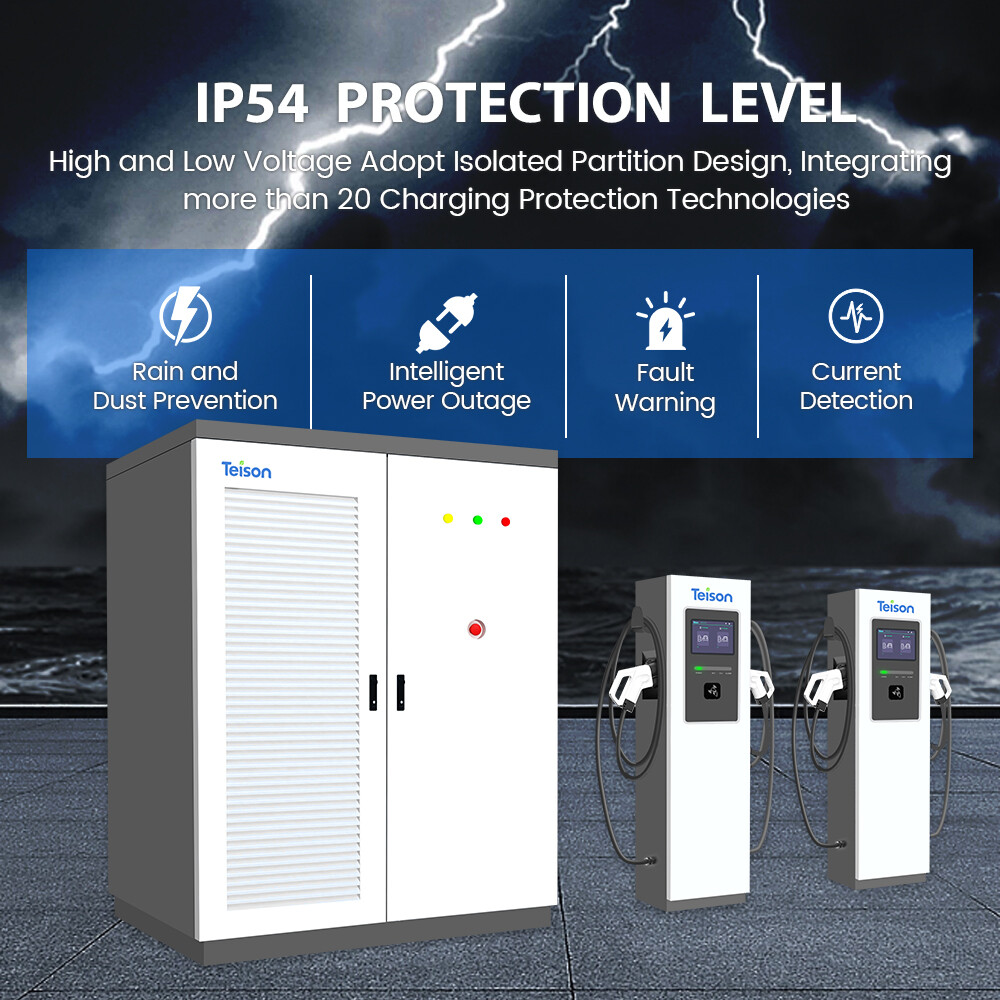

IP55 for the dispenser and IP54 for the power cube

Safety protection via Fuse, EPO, SPD, Leakage test and insulation
Input over-voltage, input under-voltage, short circuit, over temperature, lightning protection, insulation detection, battery overcharge.

Parameter of Power Cube

Model		360kW	480kW
Electrical Properties
AC Input	Input Rating	AC380V(±15%) 3ph	AC380V(±15%) 3ph
	AC Input Connection	3P+N+PE	3P+N+PE
	Rate Input Current	3Ф547A	3Ф729A
	Frequency	45-65Hz
	Power Factor	≥0.99
	Efficiency	≥95%
DC Output	Output Voltage Range	200V-1000V	200V-1000V
	MAx.Output Current	1200A(system)	1596A(system)
	MAx.Output Power	DC 360kW	DC 480kW
	Voltage Accuracy	≤±0.5%
	Current Accuracy	≤±1%
User Interface & Control
Display		10.1" touch screen
Screen Material		LCD
Push Buttons		Operation buttons / Emergency buttons
User Authentication		RFID,OCPP,QR code,Password,Application
Support language		English(Other languages available upon request)
Communication
External		Ethernet,WIFI
Internal		CAN,RS485,RS232
Environmental
Operating Temperature		-30℃ ~ +50℃
Humidity		<95% relative humidity, non-condensing
Altitude		≤2000m(6000 feet)
Mechanical
Ingress protection		IP 55
Mechanical		IK10
Cooling		Air forced
Installation Method		Floor mounted

Parameter of Charging Dispenser

Model		360kW	480kW
Electrical Properties
DC Input	Intput Voltage Range	200V-1000V	200V-1000V
	Intpu Current Range	0A-500A	0A-500A
DC Output	Output Voltage Range	200V-1000V	200V-1000V
	MAx.Output Current	500A(system)	500A(system)
	MAx.Output Power	DC 360kW	DC 480kW
	Voltage Accuracy	≤±0.5%
	Current Accuracy	≤±1%
User Interface & Control
Display		10.1" touch screen
Screen Material		LCD
Push Buttons		Operation buttons / Emergency buttons
User Authentication		RFID,OCPP,QR code,Password,Application
Support language		English(Other languages available upon request)
Communication
External		Ethernet,WIFI
Internal		CAN,RS485,RS232
Environmental
Operating Temperature		-30℃ ~ +50℃
Humidity		<95% relative humidity, non-condensing
Altitude		≤2000m(6000 feet)
Mechanical
Ingress protection		IP 55
Mechanical		IK10
Cooling		Air forced
Installation Method		Floor mounted
