Electric vehicle (EV) chargers are categorized by their power output, charging speed,

and intended use. Here's a breakdown of the different types:

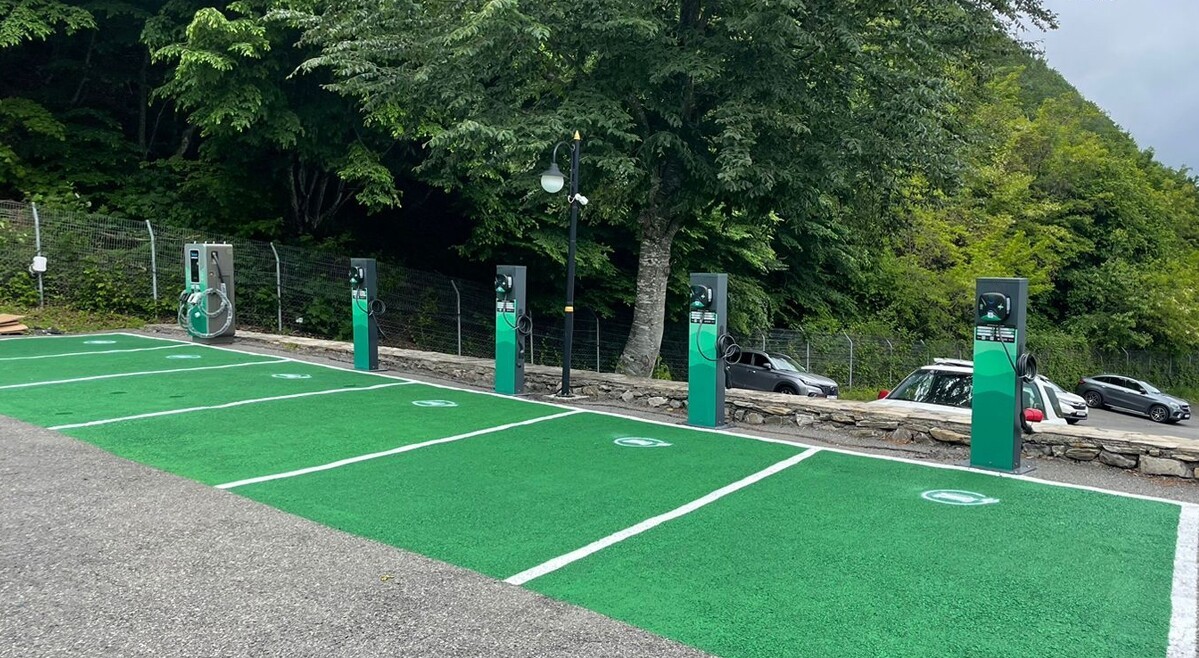

Public Use EV Chargers

1. Level 1 Chargers

   • Power Output: 120 volts AC
   • Charging Speed: Adds about 2-5 miles of range per hour

   • Use Case: Primarily for emergency use in public places, such as parking lots

     or garages.

   • Connector: Standard household plug (NEMA 5-15)

2. Level 2 Chargers

   • Power Output: 240 volts AC
   • Charging Speed: Adds about 10-60 miles of range per hour

   • Use Case: Widely available at public charging stations in places like shopping

     centers, workplaces, and public parking areas.

   • Connector: J1772 for most EVs, except Tesla (uses an adapter)

3. DC Fast Chargers (Level 3)

   • Power Output: Typically between 50 kW and 350 kW

   • Charging Speed: Adds about 60-200 miles of range in 20-30 minutes,

     depending on the charger and vehicle capabilities.

   • Use Case: Best for quick stops on long trips, located along highways and

     major roads.

   • Connector Types:

     • CHAdeMO: Used by some Japanese manufacturers like Nissan and

       Mitsubishi.

     • Combined Charging System (CCS): Used by most European and

       American manufacturers.

     • Tesla Supercharger: Proprietary connector for Tesla vehicles.

Personal Use EV Chargers

1. Level 1 Chargers

   • Power Output: 120 volts AC
   • Charging Speed: Adds about 2-5 miles of range per hour

   • Use Case: Suitable for overnight charging at home, especially for those

     with shorter daily commutes.

   • Connector: Standard household plug (NEMA 5-15)

2. Level 2 Chargers

   • Power Output: 240 volts AC
   • Charging Speed: Adds about 10-60 miles of range per hour

   • Use Case: Ideal for home use to charge vehicles more quickly than Level 1

     chargers. Often installed in garages or driveways.

   • Connector: J1772 for most EVs, except Tesla (uses an adapter)

Key Considerations for Personal Use Chargers

• Installation: Level 2 chargers often require professional installation and may

  need a dedicated 240-volt circuit.

• Cost: Level 2 chargers are more expensive than Level 1 but offer much faster

  charging times.

• Flexibility: Some Level 2 chargers come with smart features like Wi-Fi connectivity,

  allowing users to schedule charging times, monitor energy usage, and more.

Future Developments

• Wireless Charging: Inductive charging technology that allows EVs to charge

  without plugging in, using a pad on the ground.

• Ultra-Fast Charging: Ongoing developments aim to reduce charging times

  even further, with some stations offering up to 350 kW or more.

• Integration with Smart Homes and Grids: Enhanced integration with home

  energy systems and smart grids for optimized energy use and cost savings.




•
