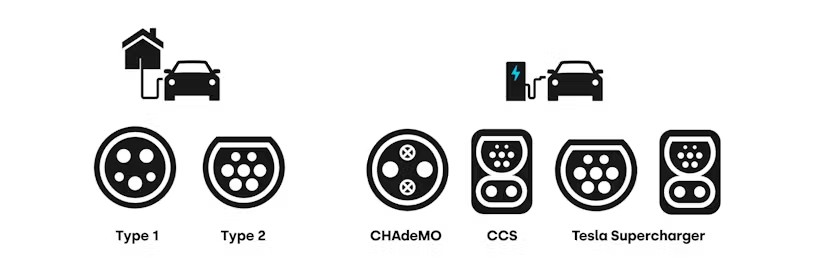

As electric vehicles (EVs) become more popular, understanding the various types of charging sockets is essential for both EV owners and those considering the switch. The differences in EV charging sockets affect charging speed, compatibility, and convenience. Here is a breakdown of the major types of electric vehicle charging sockets and their key distinctions.

1. Type 1 (SAE J1772)

• Region: Primarily used in North America and Japan
• Connector Design: A five-pin connector with a latch
• Charging Speed: Supports AC charging, usually at Level 1 (120V) or Level 2 (240V), providing charging speeds up to 7.4 kW
• Usage: Commonly used in older EVs like the Nissan Leaf and Mitsubishi Outlander PHEV
• Key Features: Designed for single-phase power supply, primarily suited for home charging or slower public charging stations

2. Type 2 (IEC 62196)

• Region: Predominantly used in Europe, but increasingly common globally
• Connector Design: A seven-pin connector capable of supporting both single-phase and three-phase power
• Charging Speed: Supports both AC and DC charging, offering charging rates from 3.7 kW up to 22 kW for AC charging, and much higher for DC
• Usage: Standard in most European EVs and newer models globally
• Key Features: It is versatile, supporting both home and fast-charging stations. Some models, like Tesla in Europe, also use Type 2 connectors.

3. CHAdeMO

• Region: Japan, with limited usage in other regions
• Connector Design: A large, round connector with multiple pins
• Charging Speed: Primarily used for DC fast charging, with speeds up to 62.5 kW, though newer versions can handle up to 400 kW
• Usage: Found in Japanese EVs like the Nissan Leaf and Mitsubishi vehicles
• Key Features: This socket type is specifically designed for DC fast charging, allowing quick refueling at compatible stations. However, it is being gradually replaced by newer standards.

4. CCS (Combined Charging System)

• Region: Widely used across Europe, North America, and other regions
• Connector Design: Combines a Type 2 or Type 1 connector for AC charging with additional pins for DC fast charging
• Charging Speed: Can support both AC charging (up to 22 kW) and DC fast charging (up to 350 kW)
• Usage: Used by a wide range of EV manufacturers, including Volkswagen, BMW, Audi, and Tesla (in North America)
• Key Features: Its flexibility and growing adoption make CCS one of the most common and future-proof connectors. It allows both slow home charging and extremely fast charging at public stations.

5. Tesla Supercharger Connector

• Region: North America (proprietary to Tesla)
• Connector Design: A compact design specifically created by Tesla for its Supercharger network
• Charging Speed: Capable of delivering up to 250 kW of DC power in the latest V3 Superchargers
• Usage: Only compatible with Tesla vehicles, although adapters are available for other socket types
• Key Features: Known for its high-speed charging capabilities, Tesla’s proprietary design is limited to its own vehicles but provides a streamlined charging experience for Tesla owners.

Conclusion

Understanding the differences between EV charging sockets is key to ensuring compatibility and optimizing your charging experience. While Type 2 and CCS are becoming the global standards for both AC and DC charging, regional variations like CHAdeMO and Tesla connectors still play significant roles. As EV infrastructure expands, the industry is moving towards more unified standards, but for now, EV owners need to be mindful of the socket types that their vehicles support.
