EV charging load management and balancing refer to the strategies and technologies used to optimize the distribution and use of electrical power for charging electric vehicles (EVs). As the adoption of EVs increases, the demand for electricity to charge these vehicles also rises, which can strain electrical grids and lead to inefficiencies if not managed properly. Here's a detailed explanation:

EV Charging Load Management

Load management in the context of EV charging involves controlling and scheduling the charging process to ensure that the power demand stays within the limits of the available electrical infrastructure. This can be achieved through various methods:

1. Time-based Charging (Off-peak Charging):

   • Encouraging or mandating EV owners to charge their vehicles during off-peak hours (when overall electricity demand is lower) to reduce stress on the grid.
   • Time-of-use (TOU) pricing can incentivize users to charge during these periods by offering lower electricity rates.

2. Smart Charging:

   • Utilizing smart chargers that can communicate with the grid and respond to signals, such as changing electricity prices or grid demand.
   • These chargers can start, stop, or adjust the charging rate automatically based on grid conditions and user preferences.

3. Load Limiting:

   • Setting maximum power limits for EV chargers to ensure that the total power draw from all charging EVs does not exceed a predefined threshold.

EV Charging Load Balancing

Load balancing specifically focuses on distributing the electrical load among multiple chargers or within a charging network to optimize efficiency and prevent overloading any single part of the system. Key aspects include:

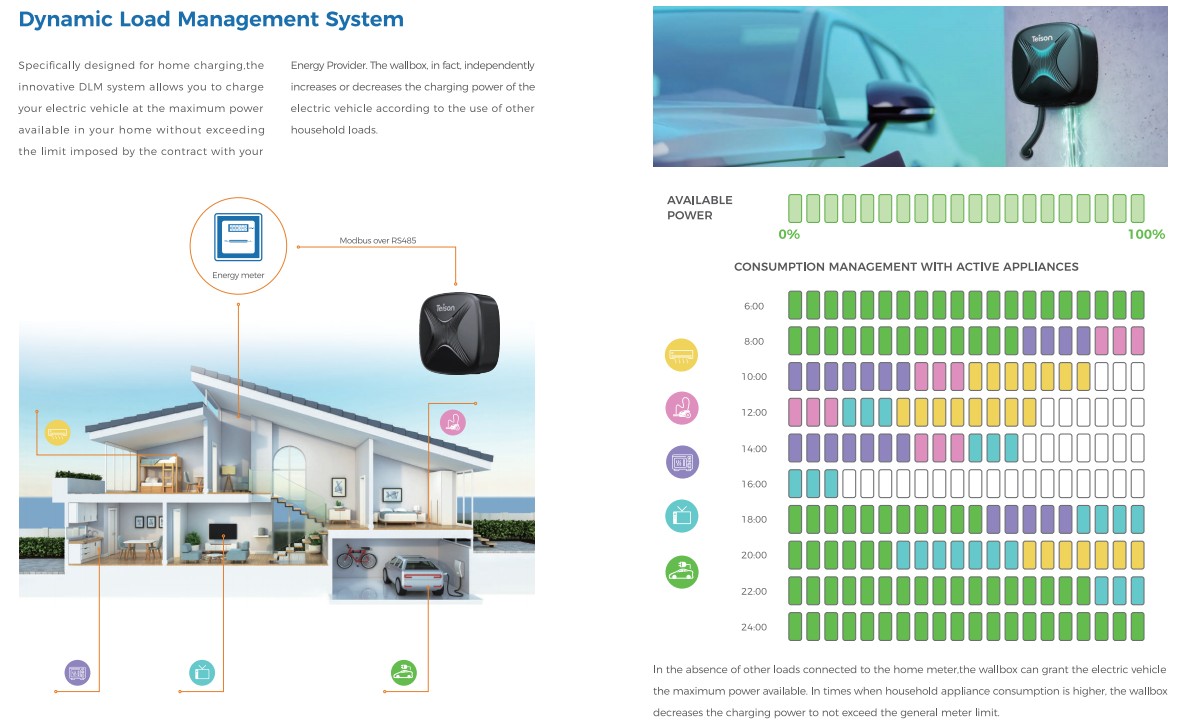

1. Dynamic Load Allocation:

   • Adjusting the power supplied to each EV charger dynamically based on the current demand and capacity.
   • For example, if one vehicle is almost fully charged, it may receive less power so that another vehicle with a lower battery level can charge more quickly.

2. Priority Charging:

   • Setting priorities for charging based on various factors, such as the urgency of charging needs (e.g., vehicles needed for immediate use vs. those parked for longer periods).

3. Integration with Renewable Energy Sources:

   • Balancing the load by integrating renewable energy sources like solar or wind, which can be variable in their output.
   • Using energy storage systems (batteries) to store excess renewable energy and then distribute it for EV charging when needed.

4. Vehicle-to-Grid (V2G) Technology:

   • Allowing EVs to discharge power back into the grid, effectively using the vehicle batteries as a distributed energy resource.
   • This can help balance the load during peak demand periods or when renewable energy supply is low.

Benefits of Load Management and Balancing

1. Grid Stability:

   • Helps maintain grid stability and prevent outages by ensuring that the demand for electricity does not exceed supply.

2. Cost Efficiency:

   • Reduces electricity costs for consumers and utility providers by optimizing charging times and using off-peak electricity.

3. Infrastructure Optimization:

   • Minimizes the need for expensive upgrades to electrical infrastructure by making better use of existing capacity.

4. Environmental Impact:

   • Enhances the use of renewable energy and reduces reliance on fossil fuels, contributing to lower carbon emissions.

Conclusion

Effective EV charging load management and balancing are crucial for the sustainable integration of electric vehicles into the existing power grid. By utilizing smart technologies and strategic planning, these practices help ensure that EV charging is efficient, cost-effective, and environmentally friendly.
